4.4. Power Station Mounting to a Pedestal Stand

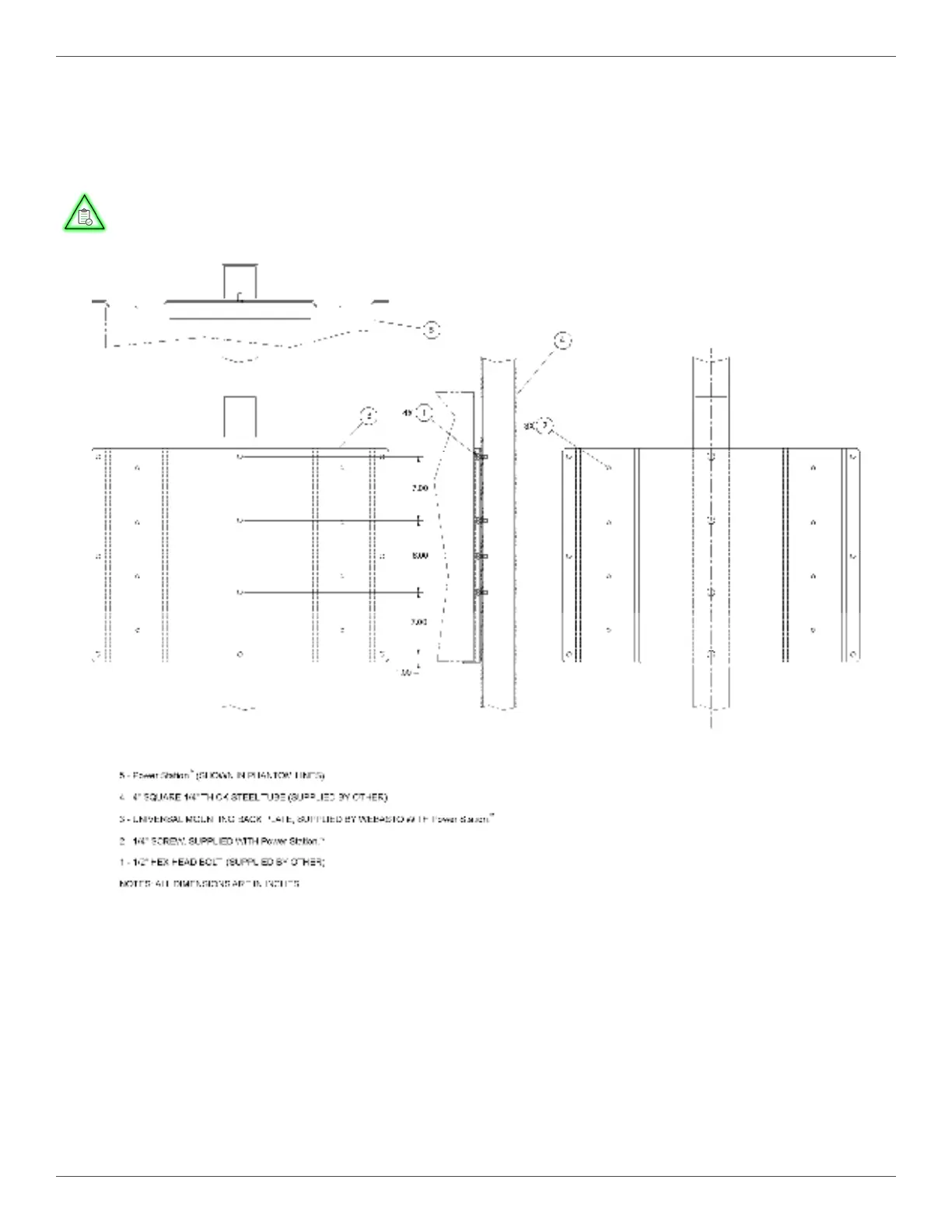

Figure 9 Power Station Pole Mounting Plate Assembly
The manufacturer does not supply all of the external mounting hardware.
User-supplied hardware may be needed to complete the installation.
NOTE
4.4.1. Each power station has the wall mounting back plate installed on the back side. Figure 9 illustrates the
power station pole mounting back plate assembly.
