Page 35 of 40 Webasto Charging Systems, Inc.
Intelligent Fast-Charging System GSE Installation Guide for the DVS300/330/400 and MVS330/400
31504-76-0101
4.9. Burton® Hub Connector Installation
4.9.1. Parts Included

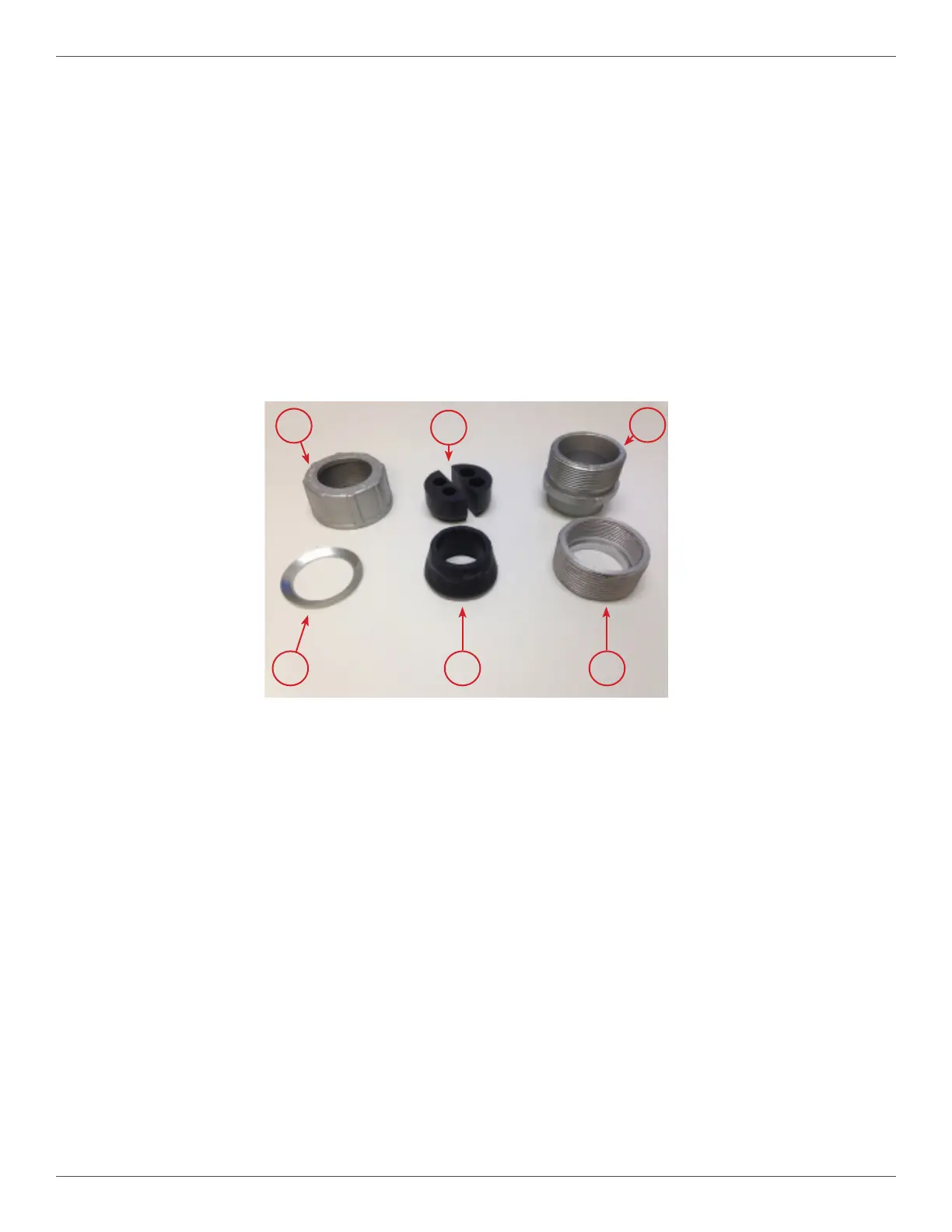

Figure 19 numbers the six included parts as follows.
1. Threaded cap
2. Washer (included inside the hub connector assembly)
3. Split rubber grommet
4. Hub connector body
5. Reducer bushing
6. Rubber grommet (included inside the hub connector assembly)
Figure 19 Parts Included in the Burton® Hub Connector
4.9.2. Output Cable Connector Installation
4.9.2.1. Disassemble the output cable connector and discard the rubber grommet (6) included in
that assembly.
4.9.2.2. Install the reducer bushing (5) into the front meter hubs on the sides of the power station.
4.9.2.3. Install the hub connector body (4) into the reducer bushing (5).
4.9.2.4. Install the threaded cap (1) over the output cables from the lug end, with the threads facing the lugs.
4.9.2.5. Install the washer (2) over the output cables, from the lug end.
4.9.2.6. Feed the four output cables from each output cable assembly through the hub connector bodies and
into the power station.
4.9.2.7. Feed the four output cables from each Burton® output cable assembly through the hub connector
body (4) and into the power station.
1
2
3
4
56
