4.8. Euro Hub Connector Installation
4.8.1. Parts Included

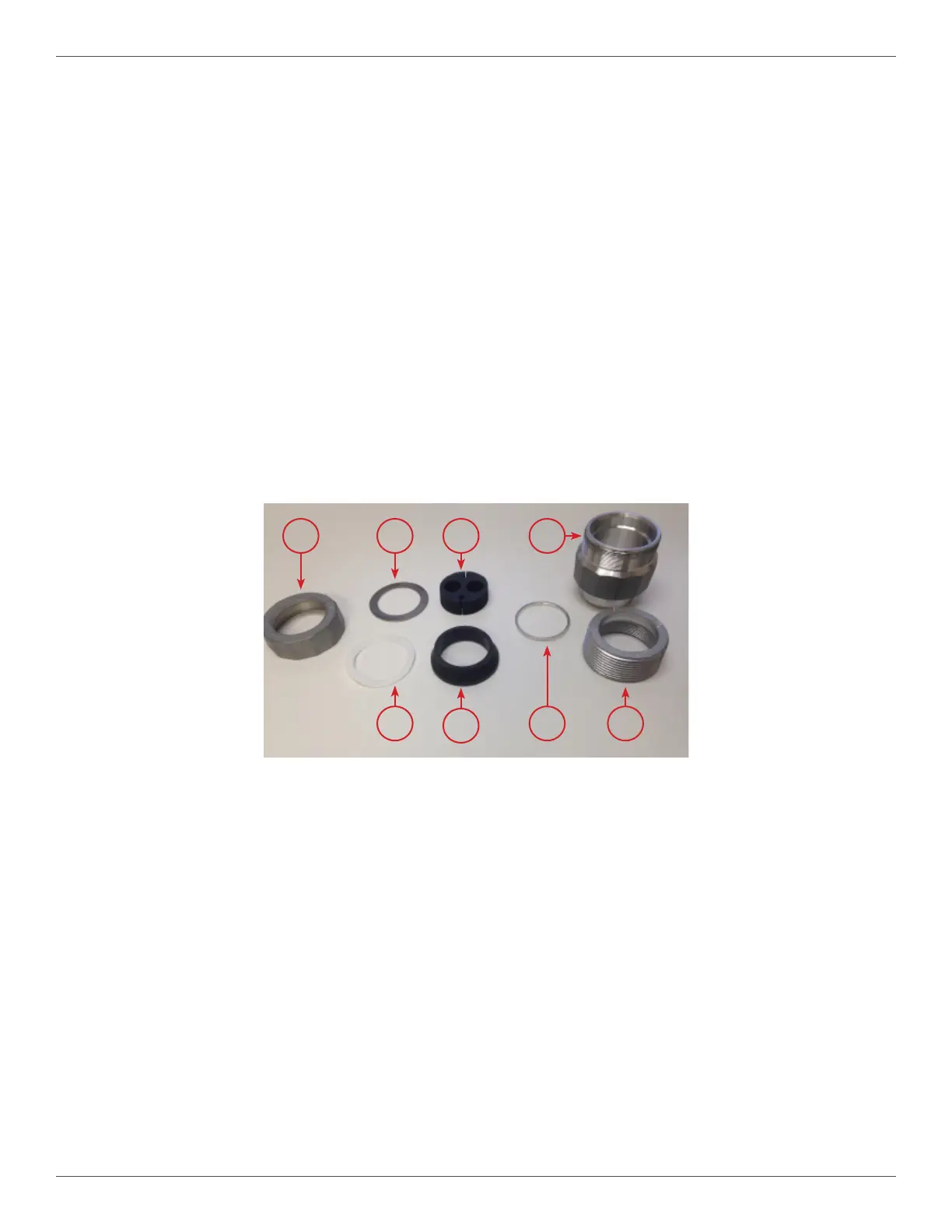

Figure 15 numbers the eight included parts as follows.
1. Threaded cap
2. Stainless steel washer
3. Rubber grommet
4. Hub connector body
5. Reducer bushing
6. Aluminum retainer ring (included inside the hub connector assembly)
7. Teon™ washer (included inside the hub connector assembly)
8. Rubber grommet (included inside the hub connector assembly)
Figure 15 Parts Included in the Euro Hub Connector
4.8.2. Output Cable Connector Installation
4.8.2.1. Disassemble the hub connector assembly; and discard the aluminum retainer ring (6), Teon™
washer (7), and rubber grommet (8) included inside that assembly.
4.8.2.2. Install the reducer bushings (5) into the front meter hubs on the sides of the power station.
4.8.2.3. Install the hub connector body (4) into the reducer bushing (5).
4.8.2.4. Install the threaded cap (1) over the output cables, from the lug end, with the threads facing the lugs.
4.8.2.5. Install the stainless steel washer (2) over the output cables, from the lug end.
4.8.2.6. Feed the four output cables from each output cable assembly through the hub connector body (4)
(Figure 17) and into the power station (Figure 18).
1 2 3 4
5687
