Webasto MVS400 - Configuring MVS Stations

Intelligent Fast-Charging System
GSE O&M for DVS300 / 330 / 330 IP55 / 400 and MVS330/400
31504-03-0101 Webasto Charging Systems, Inc.16
4.2 – Only for MVS Setups: Conguring the Main Station and Support Stations.
The MVS Intelligent Fast-Charging System is very exible. It requires each new installation to be congured for
the total number of power stations in the system.
1. Install the system.
2. Set the maximum port current conguration for each of the power stations. Each power station contains
a control board that is mounted on the inside surface of the door (Figure 4).
3. Remove the three Phillips screws on the right-hand side of the power station door to open the door.

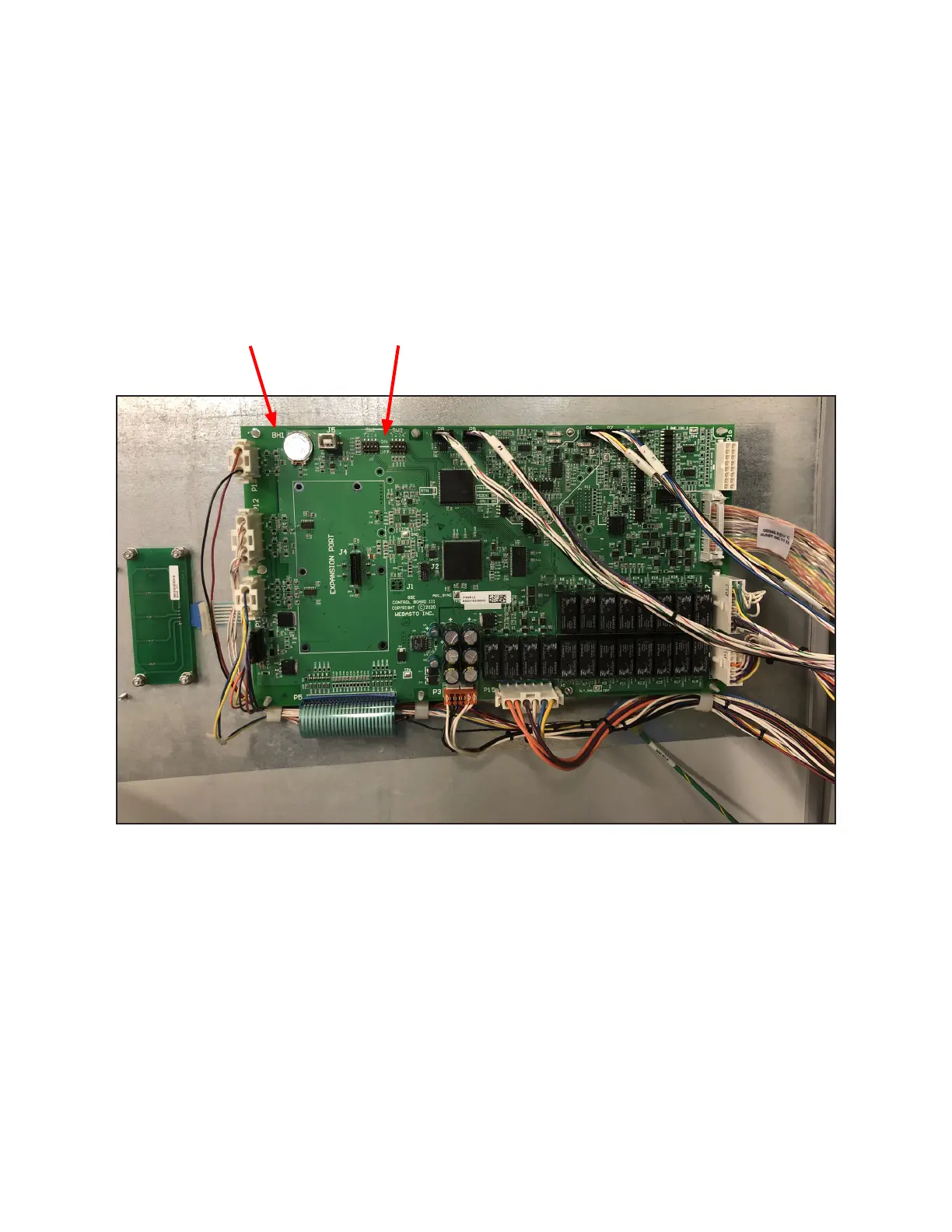

Figure 4 – Power Station Control Board Location
Control Board DIP Switch Bank
