Webasto Thermo Top C-B

Thermo Top C / Thermo Top E Installation position
33

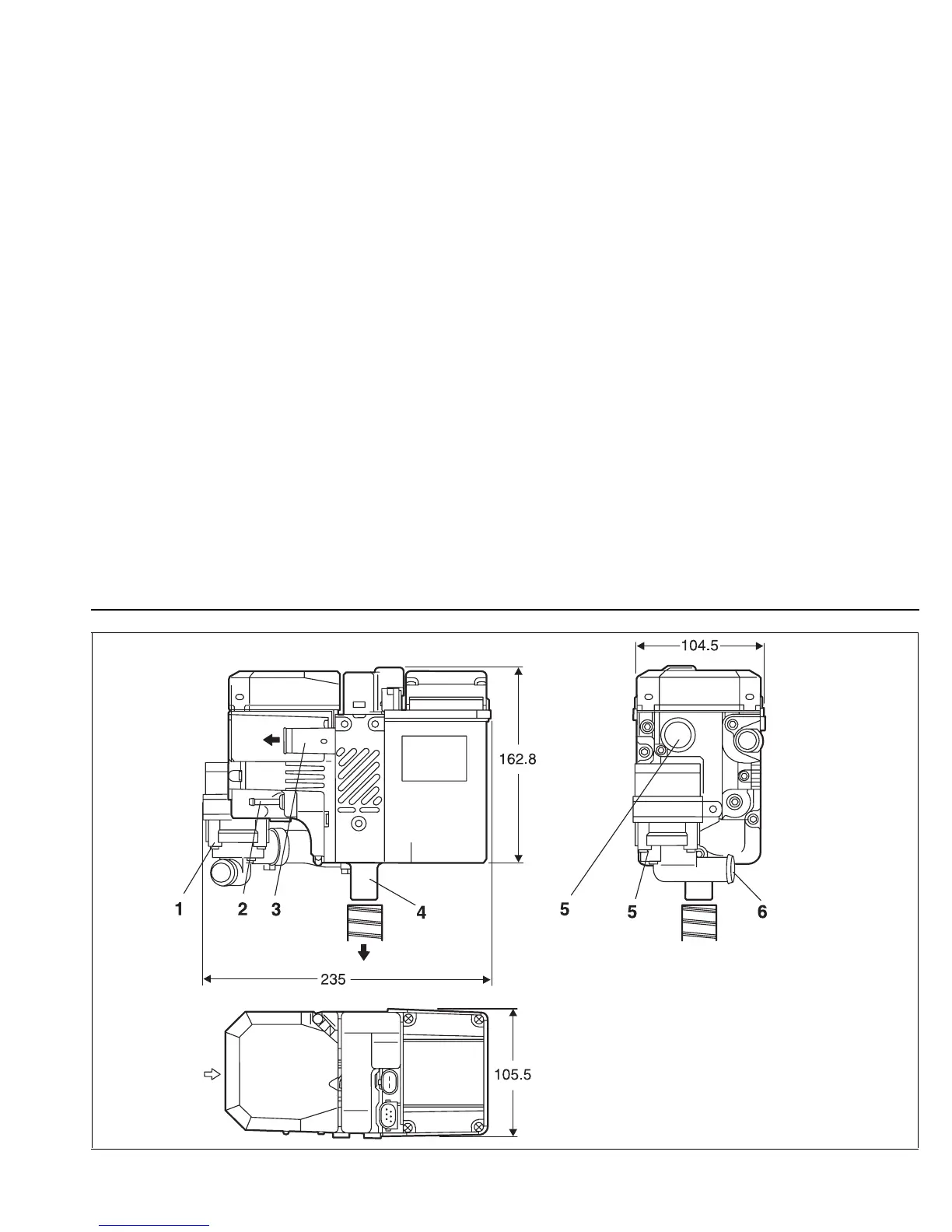

Fig. 2: Installation drawing for Thermo Top E and Z/C
1 Circulation pump
2 Fuel filler neck
3 Water outlet connector
4 Exhaust outlet connector
5 Combustion air inlet
6 Water inlet connector
