Webasto Thermo Top C Shop Manual

6 Functional Checkouts Thermo Top E and Z/C
602
6.2.2 Timer Functional Test
(Thermo Top E and C)
6.2.2.1 Voltage Check

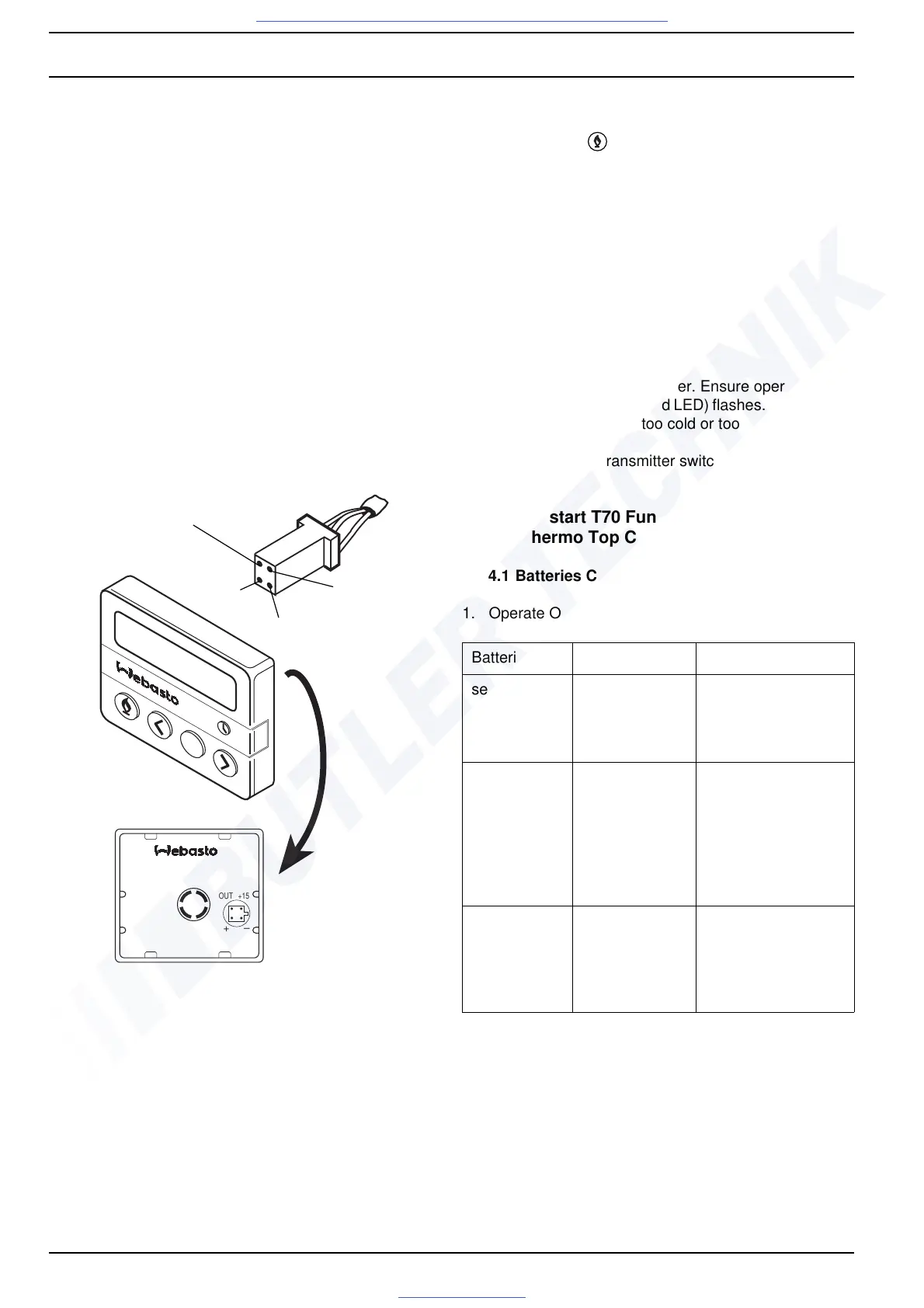

1. Remove cover using a small screw driver.
2. Loosen screw.
3. Disconnect plug from clock.
4. Measure voltage between "+" and "-" (see figure).
Voltage indicated is according to voltage of vehicle
battery, approx. 12 V.
NOTE
In case no voltage is indicated check or replace fuse
F2 and/or timer wiring.
6.2.2.2 Switch On Signal Test
1. Operate "ON" button and check voltage between
"–" and "OUT". Voltage is approx. 7 V with the timer
connected to the control unit or 12 V with the output
not connected.
2. Operate "ON" button again and check voltage
between "–" and "OUT". Voltage is 0 V.
6.2.3 Telestart T60 Functional Test
(Thermo Top C)
6.2.3.1 Transmitter Check
1. Operate switch on transmitter. Ensure operating
indicator light (green or red LED) flashes. If LED is not
flashing, batteries are too cold or too weak.
2. Using switch on transmitter switch Telestart off.
6.2.4 Telestart T70 Functional Test
(Thermo Top C and E)
6.2.4.1 Batteries Check
1. Operate ON or OFF switch.
SET
OUT +15
+–
Connection to contact
brown
red
black
+15 remains open
Batteries LED Actions
serviceable illuminates
after 1 second
for approx.
0.5 seconds
weak flashes in
orange after
1 second for
3 seconds
– warm up
batteries
to above 0° C
– replace
batteries as
soon as
possible
descharged illuminates in
orange after
1 second for
5 seconds
– warm up
batteries
to above 0° C
– replace
batteries
