7
Nissan Pathfinder and Navara

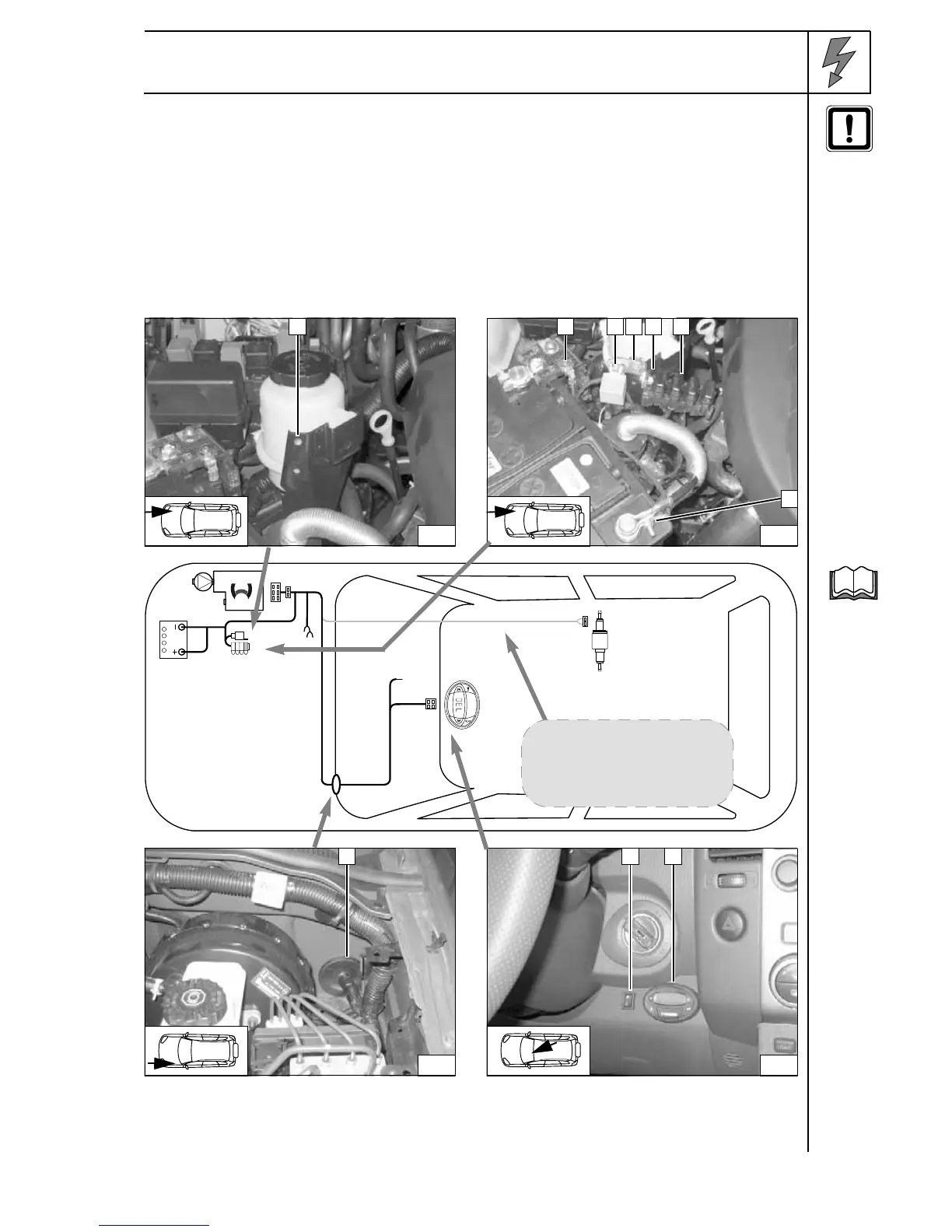

Electrical Connections
Fuse holder, relay K3
WARNING:
Do not damage tank
(
1) 6.5 mm dia. hole
Fuse holder, relay K3
(3) M6x12 bolt, angle bracket, flanged nut
(
4) Retaining plate, M5x12 bolt, large diameter
washer, flanged nut
(
5) Fuse holder mounted
(
2) K3 relay, M5x12 bolt, large diameter washer,
flanged nut
(
1) Positive wire on positive support point
(
6) Ground wire on battery terminal
Wiring
harness
installa-
tion dia-
gram
Wiring harness pass through
(1) Protective rubber plug
Digital Timer and Summer/Winter Switch
(1) Summer/winter switch, hole 12 mm dia.
(
2) Digital timer with extension wiring harness,
drilling template
1
3
41 2 3 5
6
4
Do not install the metering pump
cable harness until later togeth-
er with fuel pipe along the origi-
nal vehicle fuel lines on the
underbody
i
1
5
1 2
6
