29

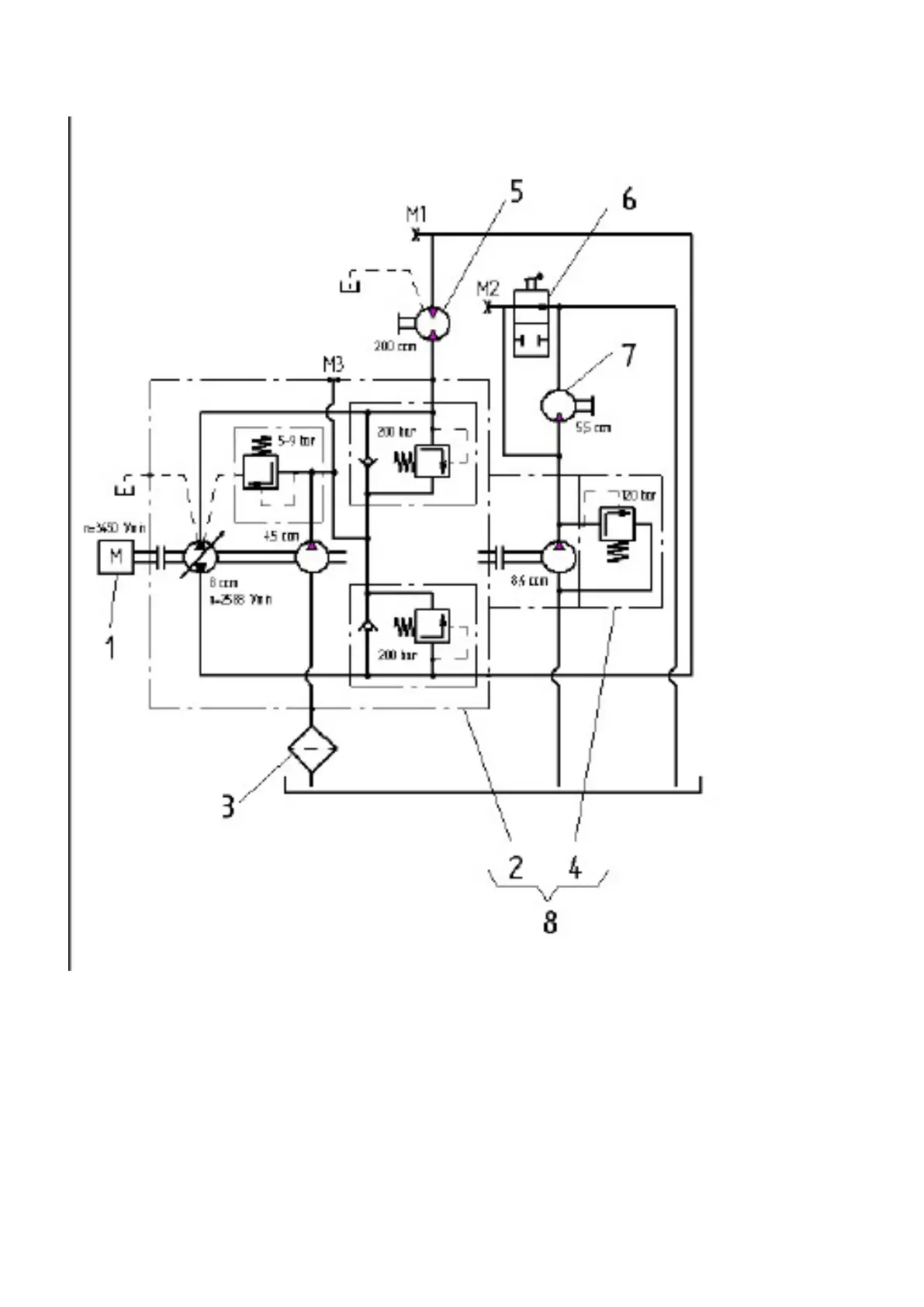

Hydraulic circuit diagram
1 Diesel engine
2 Axial piston adjustment pump
3 Line lter, complete
4 Gear pump
5 Hydraulic motor
6 Valve (vibration connection)
7 Gear motor
8 Pump combination
