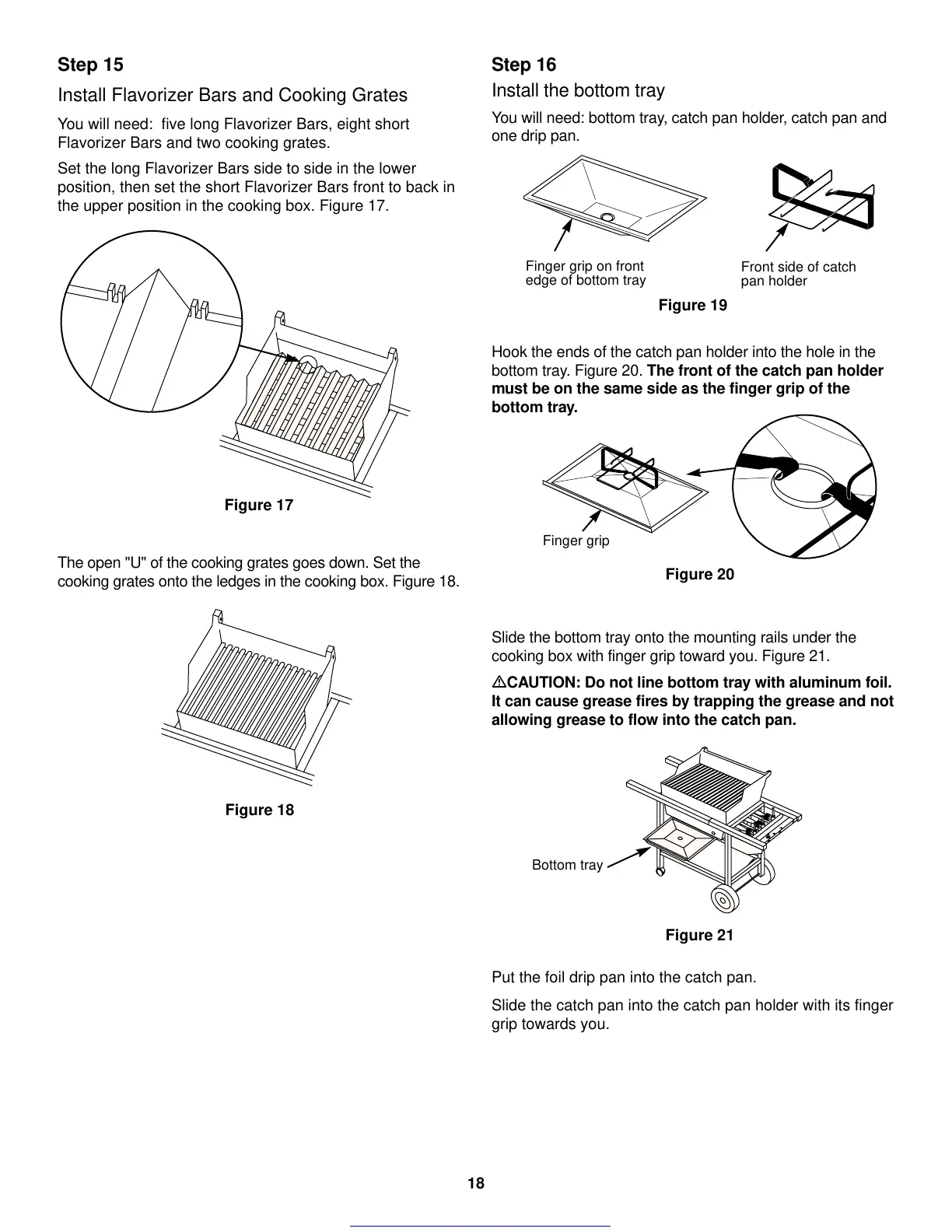

Step 16
Install the bottom tray
You will need: bottom tray, catch pan holder, catch pan and
one drip pan.
Figure 20
Figure 19
Figure 21
Bottom tray
Finger grip on front
edge of bottom tray
Finger grip
Front side of catch
pan holder
Step 15
Install Flavorizer Bars and Cooking Grates
You will need: five long Flavorizer Bars, eight short
Flavorizer Bars and two cooking grates.
Set the long Flavorizer Bars side to side in the lower
position, then set the short Flavorizer Bars front to back in
the upper position in the cooking box. Figure 17.
Figure 17
The open "U" of the cooking grates goes down. Set the
cooking grates onto the ledges in the cooking box. Figure 18.
Figure 18
Hook the ends of the catch pan holder into the hole in the
bottom tray. Figure 20. The front of the catch pan holder
must be on the same side as the finger grip of the
bottom tray.
Slide the bottom tray onto the mounting rails under the
cooking box with finger grip toward you. Figure 21.
CAUTION: Do not line bottom tray with aluminum foil.
It can cause grease fires by trapping the grease and not
allowing grease to flow into the catch pan.
Put the foil drip pan into the catch pan.
Slide the catch pan into the catch pan holder with its finger
grip towards you.
