31
1 Lid (assembly)
2 Lid handle
3 Warm-Up Basket
4 Warming rack
5 Short Flavorizer bars (8)
6 Long Flavorizer bars (5)
7 Cooking grates (2)
8 Work table
9 Tubing plugs (5)
10 1/4-20 x 2 inch bolts (5)
11 Swing table end bracket
12 Left frame
13 1/4-20 x 1/2 inch bolts (6)
14 1/4 inch nylon washers (11)
15 Caster frame
16 Swing table assembly
17 Support rod holder
18 Support rod
19 Casters (2)
20 Bottom tray
21 Catch pan holder
22 Catch pan
23 Drip pans (2)
24 Accessory rack
25 Frame connectors (2)
26 Wheel hubcaps (2)
27 Wheels (2)
28 Tool holders (3)
29 Wheel frame
30 Front panel
31 Plastic buttons (2)
32 Axle

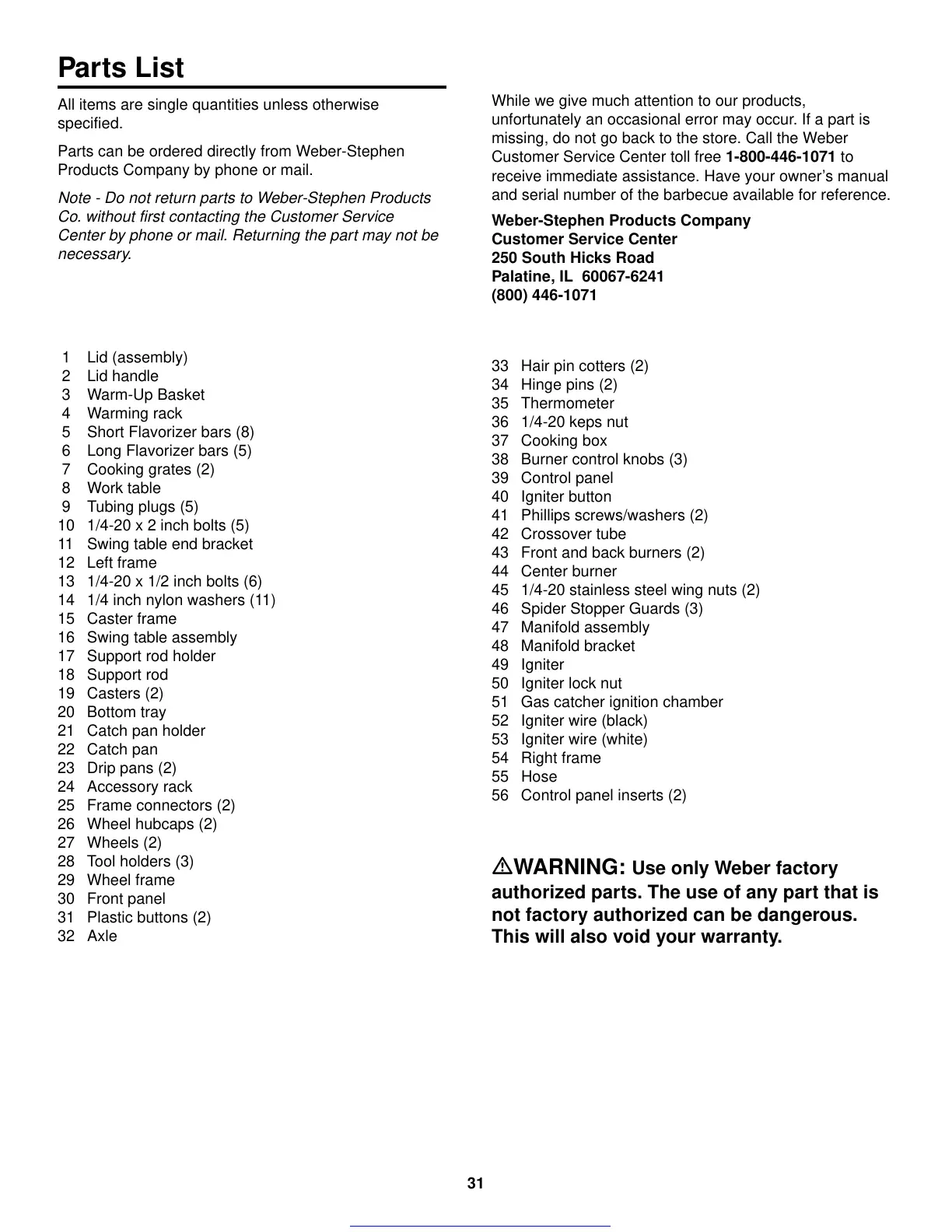

Parts List
All items are single quantities unless otherwise
specified.
Parts can be ordered directly from Weber-Stephen
Products Company by phone or mail.
Note - Do not return parts to Weber-Stephen Products
Co. without first contacting the Customer Service
Center by phone or mail. Returning the part may not be
necessary.
33 Hair pin cotters (2)
34 Hinge pins (2)
35 Thermometer
36 1/4-20 keps nut
37 Cooking box
38 Burner control knobs (3)
39 Control panel
40 Igniter button
41 Phillips screws/washers (2)
42 Crossover tube
43 Front and back burners (2)
44 Center burner
45 1/4-20 stainless steel wing nuts (2)
46 Spider Stopper Guards (3)
47 Manifold assembly
48 Manifold bracket
49 Igniter
50 Igniter lock nut
51 Gas catcher ignition chamber
52 Igniter wire (black)
53 Igniter wire (white)
54 Right frame
55 Hose
56 Control panel inserts (2)
WARNING: Use only Weber factory
authorized parts. The use of any part that is
not factory authorized can be dangerous.
This will also void your warranty.
While we give much attention to our products,
unfortunately an occasional error may occur. If a part is
missing, do not go back to the store. Call the Weber
Customer Service Center toll free 1-800-446-1071 to
receive immediate assistance. Have your owner’s manual
and serial number of the barbecue available for reference.
Weber-Stephen Products Company
Customer Service Center
250 South Hicks Road
Palatine, IL 60067-6241
(800) 446-1071
