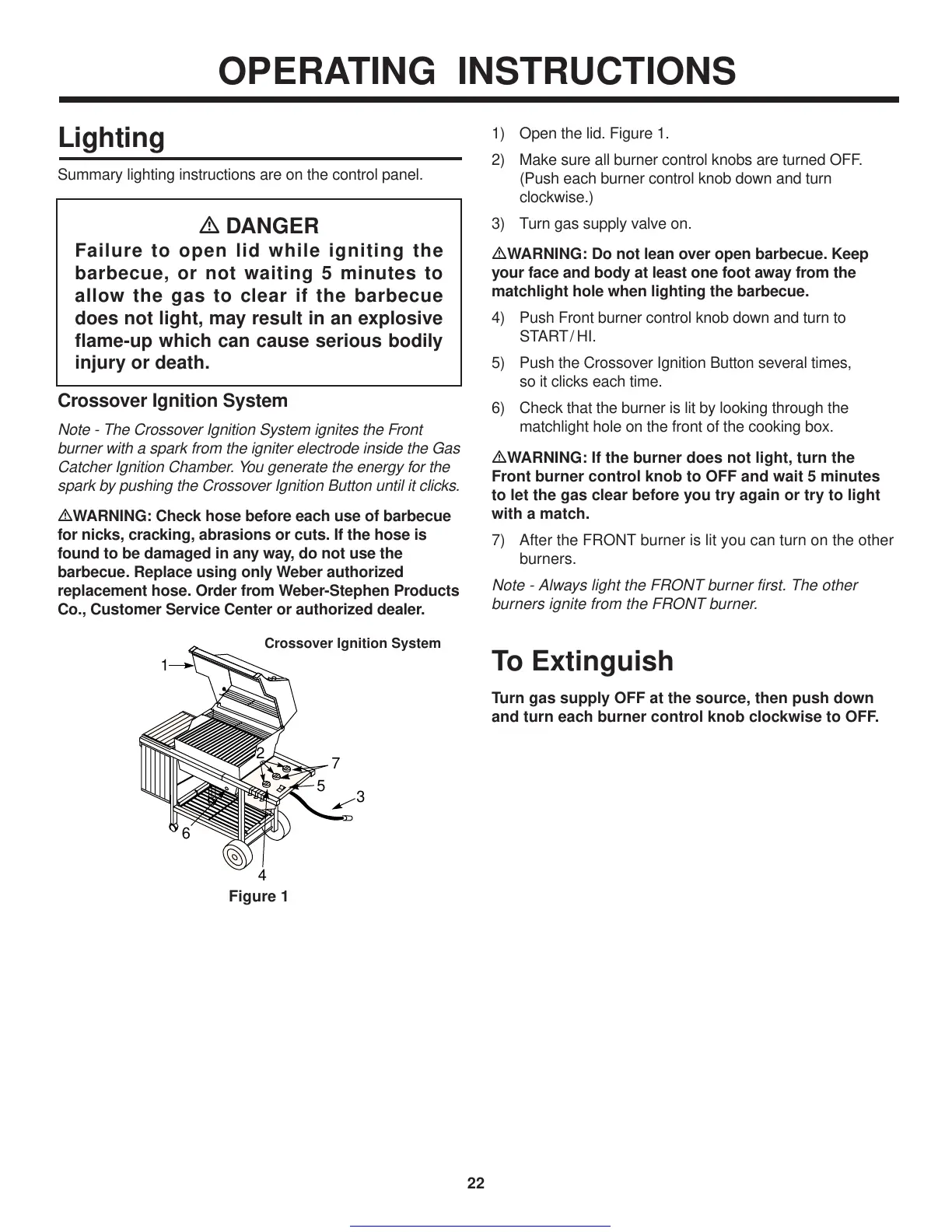

Figure 1
Crossover Ignition System
1) Open the lid. Figure 1.
2) Make sure all burner control knobs are turned OFF.
(Push each burner control knob down and turn
clockwise.)
3) Turn gas supply valve on.
WARNING: Do not lean over open barbecue. Keep
your face and body at least one foot away from the
matchlight hole when lighting the barbecue.
4) Push Front burner control knob down and turn to
START/ HI.
5) Push the Crossover Ignition Button several times,
so it clicks each time.
6) Check that the burner is lit by looking through the
matchlight hole on the front of the cooking box.
WARNING: If the burner does not light, turn the
Front burner control knob to OFF and wait 5 minutes
to let the gas clear before you try again or try to light
with a match.
7) After the FRONT burner is lit you can turn on the other
burners.
Note - Always light the FRONT burner first. The other
burners ignite from the FRONT burner.
To Extinguish
Turn gas supply OFF at the source, then push down
and turn each burner control knob clockwise to OFF.
OPERATING INSTRUCTIONS
DANGER
Failure to open lid while igniting the
barbecue, or not waiting 5 minutes to
allow the gas to clear if the barbecue
does not light, may result in an explosive
flame-up which can cause serious bodily
injury or death.
Crossover Ignition System
Note - The Crossover Ignition System ignites the Front
burner with a spark from the igniter electrode inside the Gas
Catcher Ignition Chamber. You generate the energy for the
spark by pushing the Crossover Ignition Button until it clicks.
WARNING: Check hose before each use of barbecue
for nicks, cracking, abrasions or cuts. If the hose is
found to be damaged in any way, do not use the
barbecue. Replace using only Weber authorized
replacement hose. Order from Weber-Stephen Products
Co., Customer Service Center or authorized dealer.
