REMOVE CONTROL KNOBS & CONTROL PANEL FOR LEAK
TESTING
You will need: Phillips screwdriver.
1) Remove control knobs.
2) Remove screw and washer from back of control panel with a Phillips screwdriver.
3) Tilt the back edge of the control panel up. Push in on the front edge to release
locking tabs. Carefully pull control panel away from frame.
4) Disconnect the igniter wires from the ignition module.
5) Replace control panel when Leak Check is completed.
GAS INSTRUCTIONS
TYPE OF GAS
Your natural gas grill is factory built to operate using natural gas only. Never attempt to
operate your grill on gases other than the type specified on the grill rating plates.
Your grill operates at 7” of water column pressure. If replacement of the hose becomes
necessary, factory specified parts are required. See your local dealer.
For safety and design reasons, the conversion of a Weber
®
grill from operation using
Natural gas to operation using LP gas requires the change out of the entire gas supply
system of the grill. If this becomes necessary, see your dealer for additional information.
WHAT IS NATURAL GAS?
Natural gas, often called methane, is a safe modern fuel. Natural gas is supplied by your
local utility and should be readily available if your house is already heated with gas.
PORTABLE INSTALLATION
Weber
®
recommends moving the grill at least two (2) feet from the gas supply and
any combustible surfaces. After the gas supply has been run and checked for leaks in
accordance to the assembly instructions, you are ready to grill. To connect the hose
to the gas supply, pull back the outer fitting, insert the hose fitting all of the way, and
release the outer fitting. This process will produce a gas joint.
LEAK CHECK PREPARATION
CHECK THAT ALL BURNER VALVES ARE OFF
Valves are shipped in the “OFF” position, but you should check to be sure that they are
turned off. Check by pushing in and turning clockwise. If they do not turn, they are off.
Proceed to the next step. If they do turn continue turning them clockwise until they stop,
then they are off. Proceed to the next step.

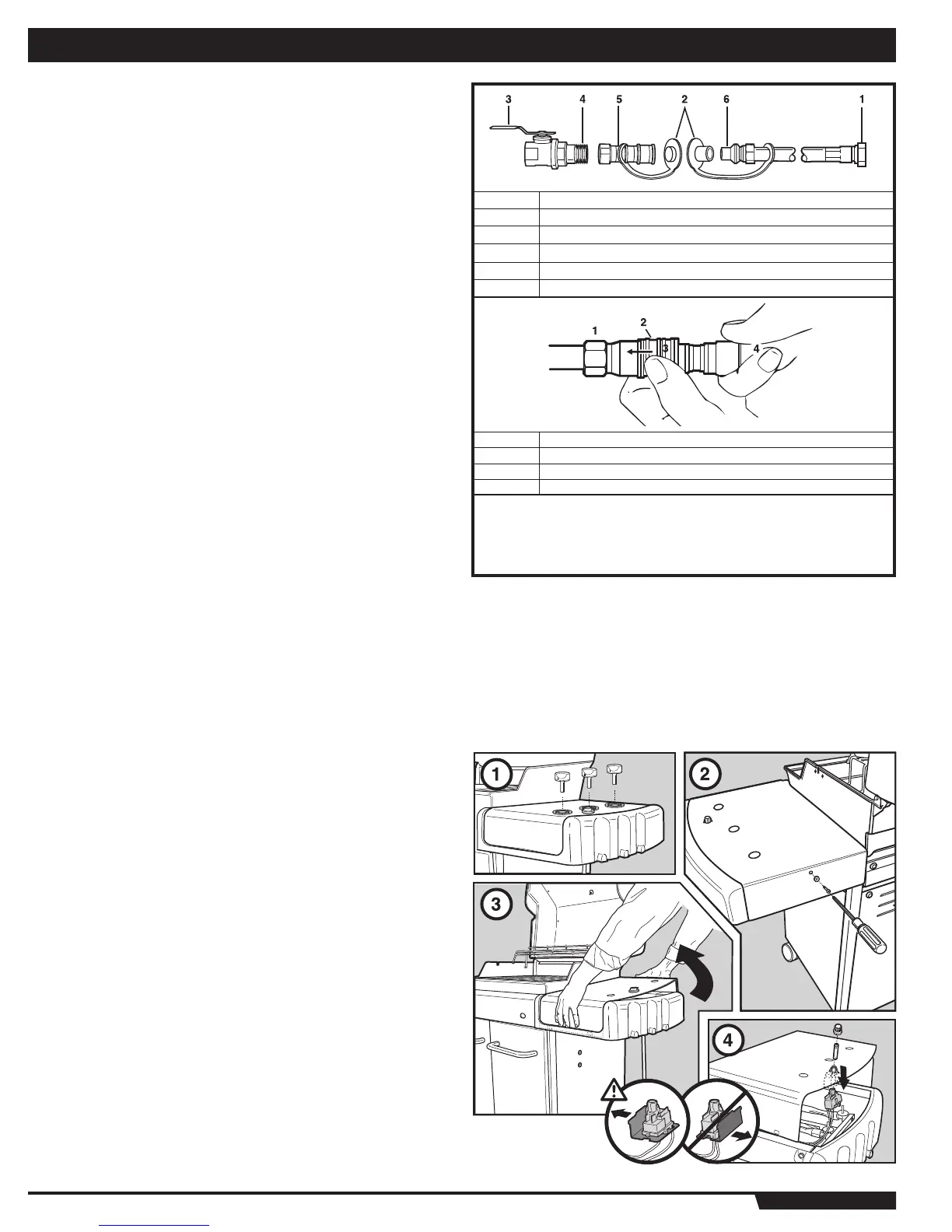

1 Swivel Connection
2 Install covers when hose is disconnected
3 Shut Off Valve
4 Coat this pipe nipple with gas resistant pipe dope
5 Socket
6 Male Connection
1 Socket
2 Sleeve
3 Push Sleeve Back
4 Plug
Push plug until sleeve snaps forward locking plug in socket.
(This turns on gas automatically.)
When properly assembled the plug cannot be removed without pushing
the sleeve back.
To disconnect, push sleeve back and pull out plug.
(This automatically shuts off gas.)
To Next Page
