Weber Summit Gold D LP - Page 31

C-5
Gas Instructions

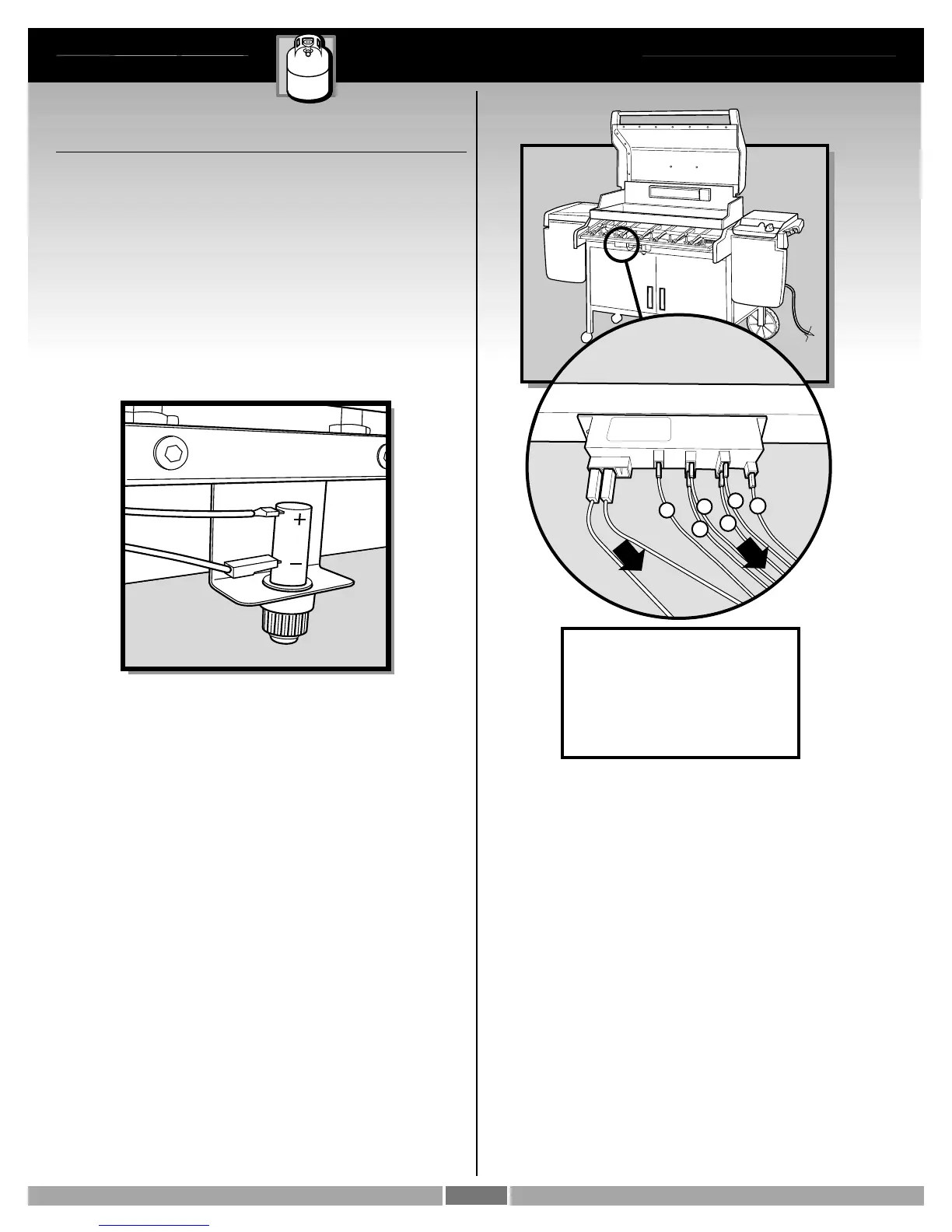

Reinstall control panel
Parts required: control panel, screws, and burner control
knobs.
Place the control panel back onto the control panel
brackets on either side of the front of the cooking box.
Line up screws with screw holes on both the control panel
and control panel brackets. Tighten screws.
Reinstall burner control knobs & igniter wires (if necessary).
Place corresponding control knobs down onto the valve
stems. From the underside of the control panel, replace the
two wires (1, 2) of each igniter.
a = Blue Tab with Black Wire
b = Yellow Tab with Black Wire
c = White Tab with Black Wire
d = Solid White Wire
e = Green Tab with Black Wire
f = Solid Red Wire
-
+
b
-
+
a
c
d
e
f
(1)
(2)
