WWW.WEBER.COM
3

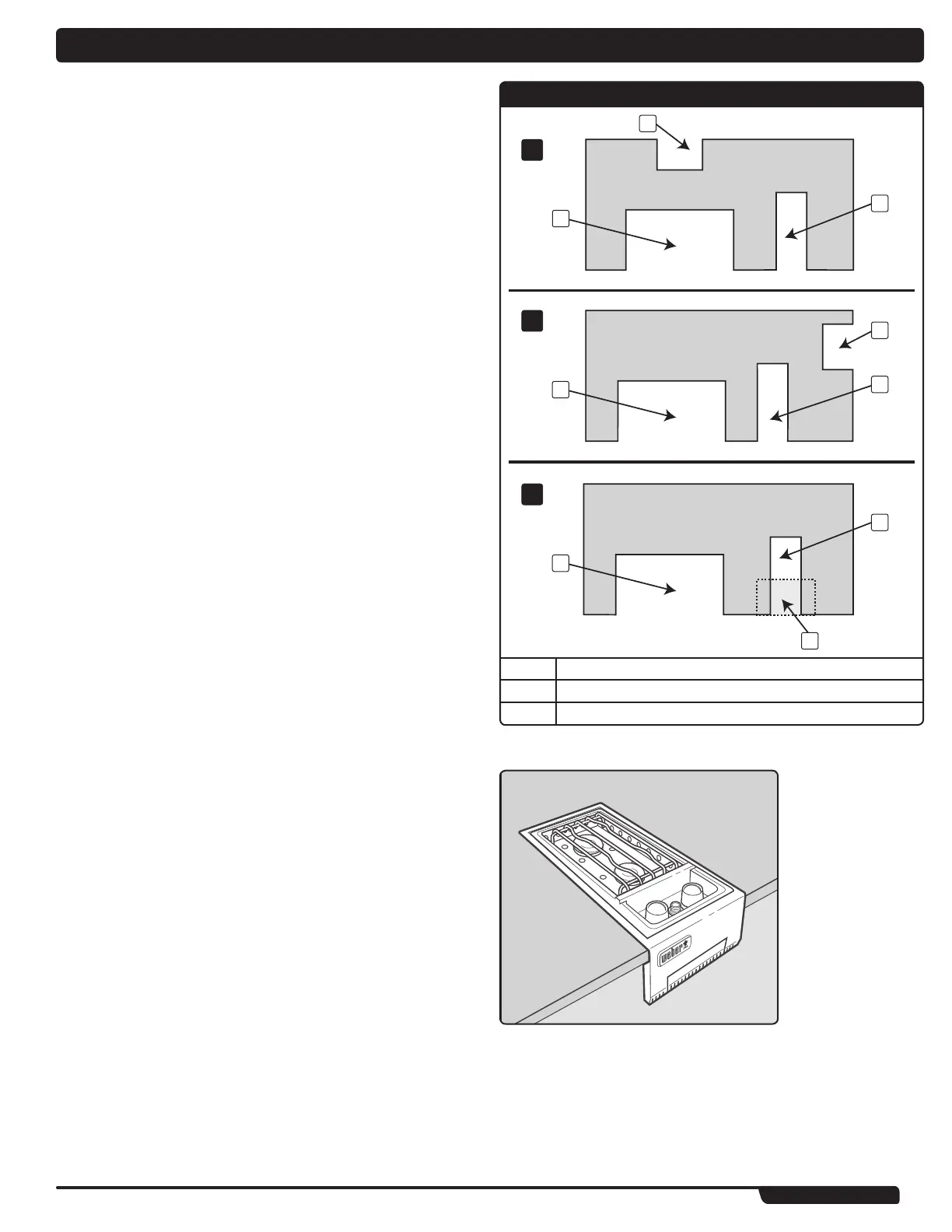

“ISLAND” STRUCTURE CONFIGURATION OPTIONS
1
2
3
A
B
C
2
3
1
1
2
3
1 Summit
®
Built-In Grill
2 Gas supply
3 Optional side burner accessory
NOTE: IF YOU HAVE PURCHASED A SIDE BURNER
If you have purchased a side burner accessory with your Summit
®
Gas Grill, Weber
®
recommends that you read the SUMMIT
®
BUILT-IN SIDE BURNER INSTALLATION/
OWNER’S GUIDE before designing your “island” structure.
◆
BUILT-IN CUTOUT DIMENSIONS
“ISLAND” STRUCTURE CONFIGURATION OPTIONS
There are many available options for positioning the major components of your “island”
structure. The major components are:
1) The Built-In Grill
2) Gas supply enclosure
3) Optional side burner accessory
The three common options (A, B, C) are illustrated in the “ ‘Island’ Structure
Configuration Options” table.
Note: Gas line limitation
The gas supply hose from grill manifold to gas supply bulkhead must not exceed 58" (147
cm). The
3
⁄8" (9.52 mm) side burner accessory hose (not included) must not exceed 58" (147
cm).
◆
