Webfleet LINK 640 - Connection Overview

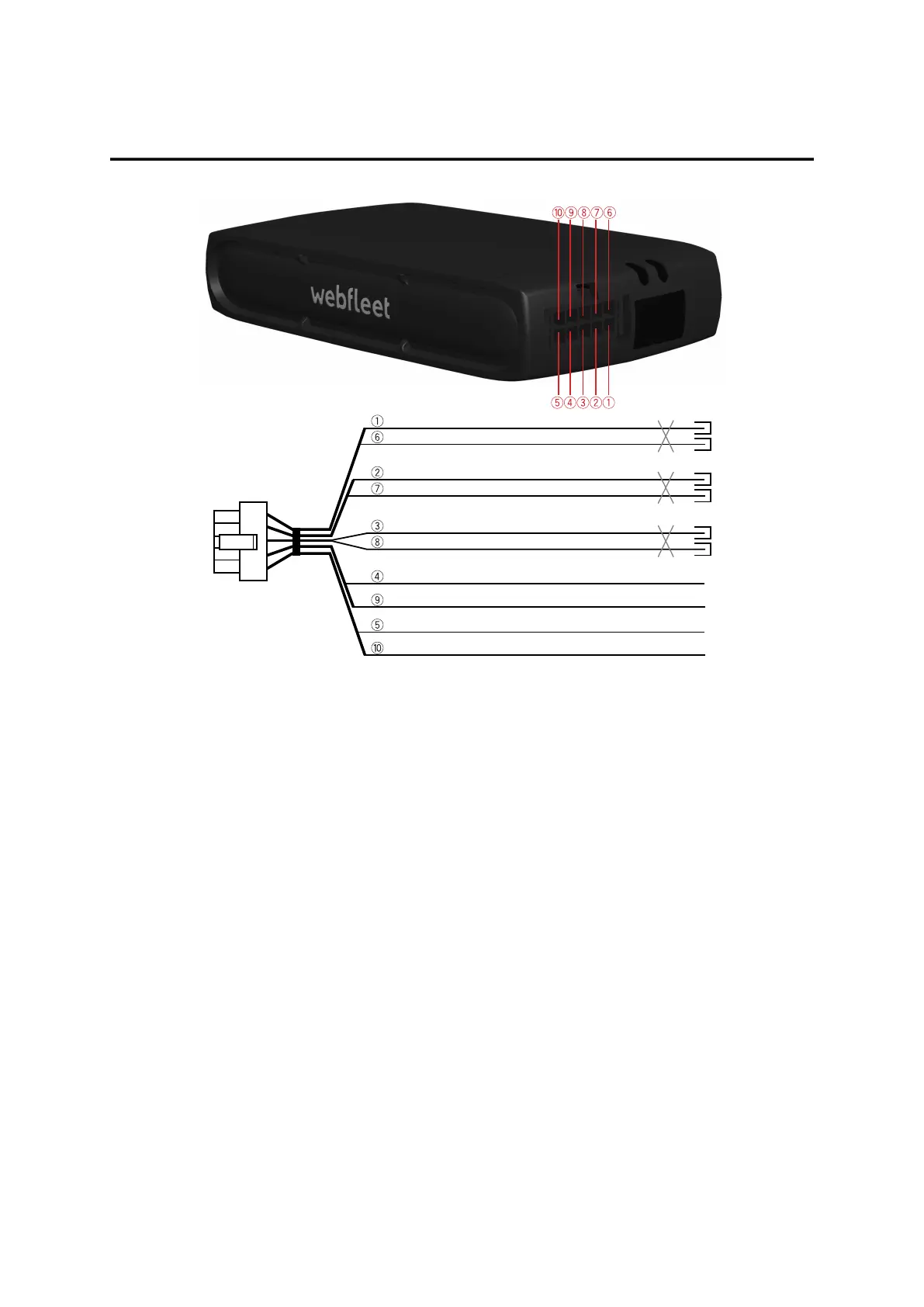

Connection overview
5PE**
CAN2L**
CAN1L**
GND
Vbat*
NC**
CAN2H**
CAN1H**
GND
IGN*
White
White
White
Brown
Red
Orange/Yellow
Orange/Green
Orange/Blue
Brown
Black
* Make sure this wire is fused with max. 10A.
** Twisted pair. Loose ends of CAN L/CAN H wires must be protected against short circuits. Separate by us-
ing a heat shrink tube.
