Webfleet LINK 710 - 12-Pin IO Cable Connections; 1-Wire Connection

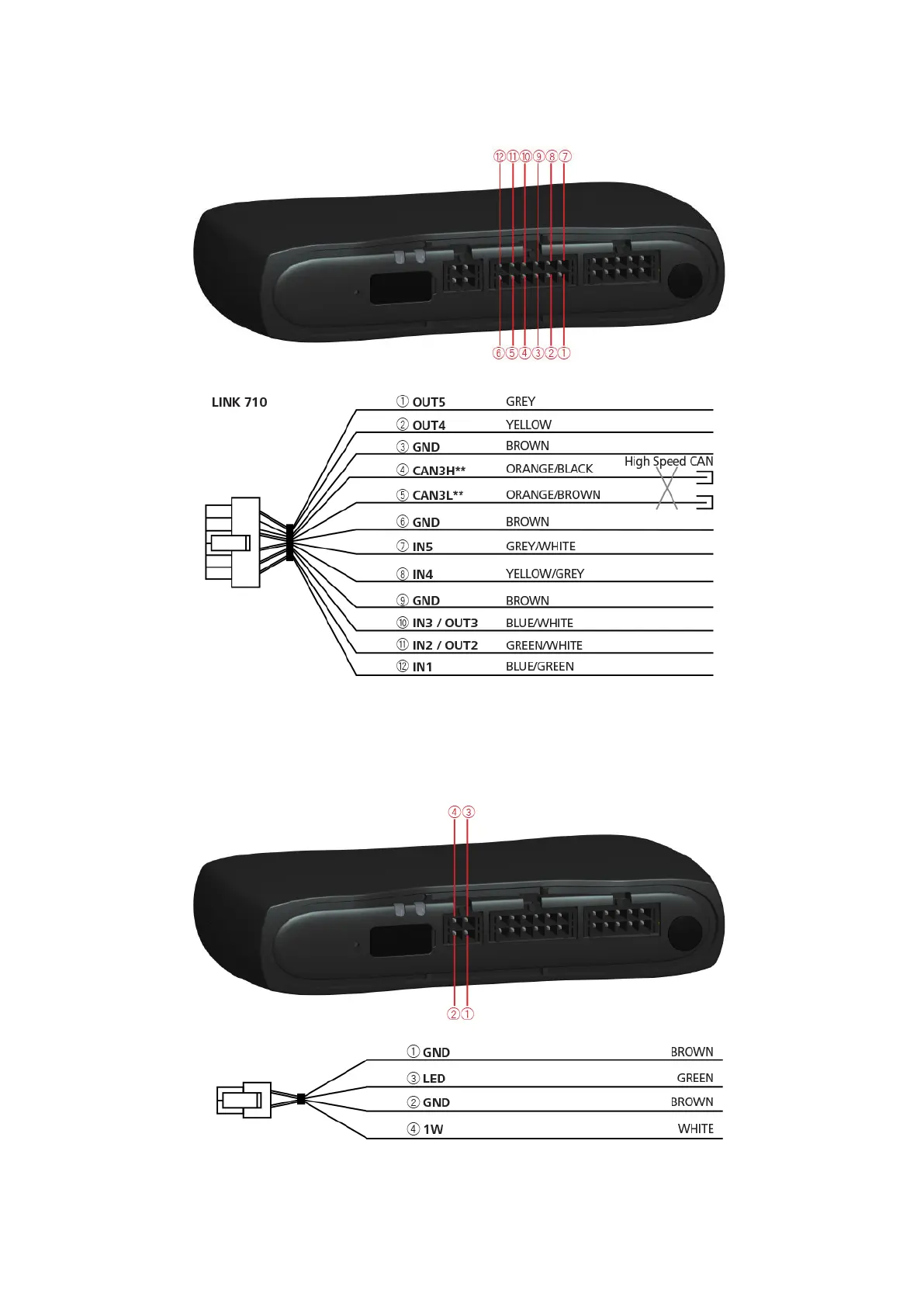

Connection overview: 12 PIN IO cable
** Twisted pair. Loose ends of CAN L/CAN H wires must be protected against short
circuits. Separate by using a heat shrink tube.
Connection overview: 1 wire
10
