Webfleet LINK 710 - Connection Overview; Power;CAN Cable Connections

Connection overview

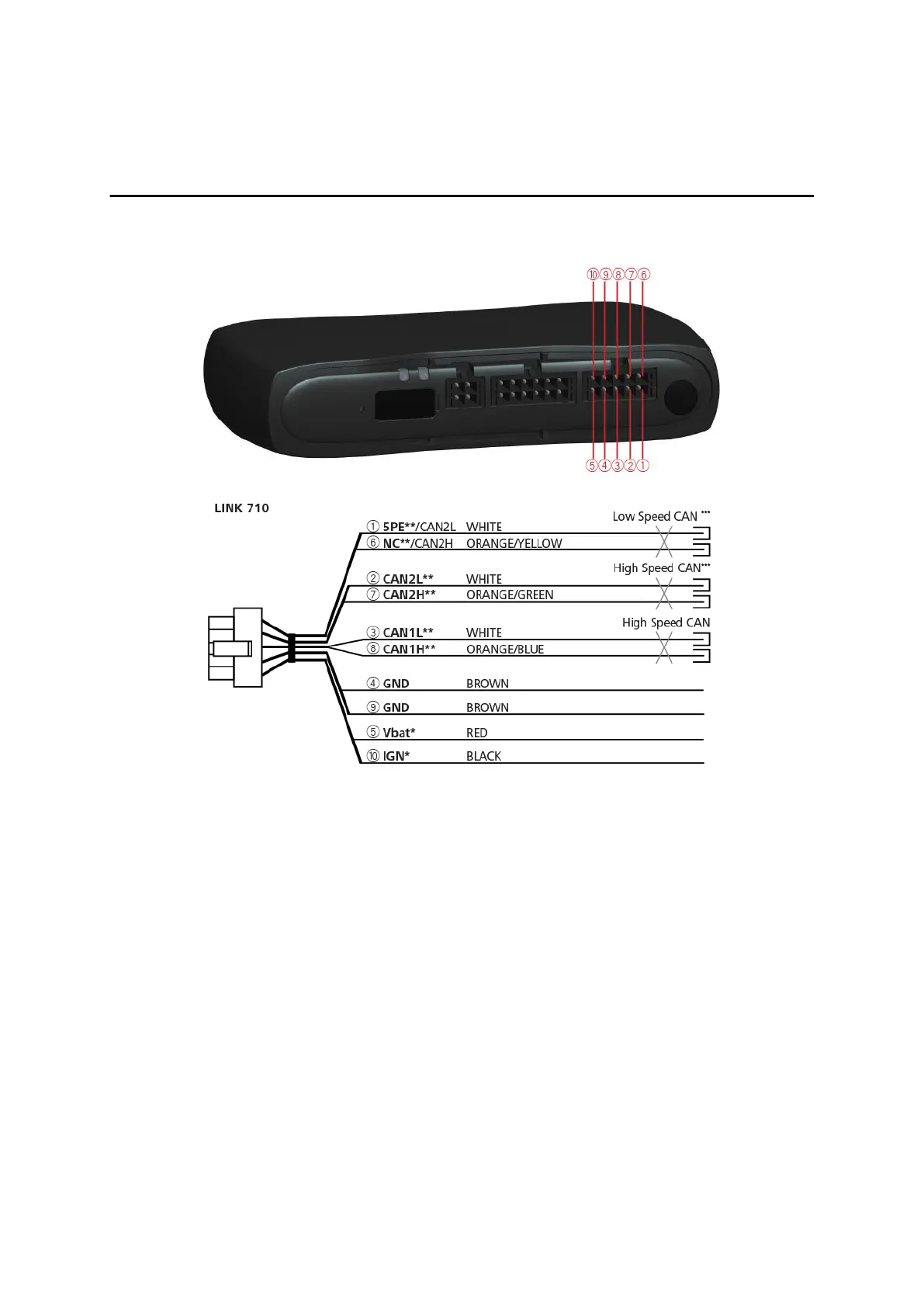

Connection overview: Power/CAN cable
* Make sure this wire is fused with max. 10A.
** Twisted pair. Loose ends of CAN L/CAN H wires must be protected against short
circuits. Separate by using a heat shrink tube.
*** Only one of the CAN2 ports can be used.
