Connecting to power
Note: If want to connect the LINK CAN Sensor 100 to your LINK 710, please use the
Data/Power Cable supplied with the LINK CAN Sensor 100.
Connect the LINK 710 to the vehicle power supply with the standard vehicle voltage
(12 V/24 V). Do not connect to a voltage converter. The three wires GND, IGN and
PWR+ (supply voltage) must be connected.
Important: Follow the order of connecting the wires as described below. First connect
the wires then insert the plug into the LINK 710.
If you have inserted the plug into the LINK 710 first, you must connect the GND wire
before you connect the PWR+ wire and the IGN wire as described below.
1. Connect the GND wire (brown) to ground (clamp 31).
2. Connect the PWR+ wire (red) to the carry current (clamp 30).
The connection must be fused with max. 10A. If not, fuse the PWR+ wire with one
2A fast blow fuse.
3. Connect the IGN wire (black) to ignition (clamp 15).
The connection must be fused with max. 10A. If not, fuse the IGN wire with one 2A
fast blow fuse.

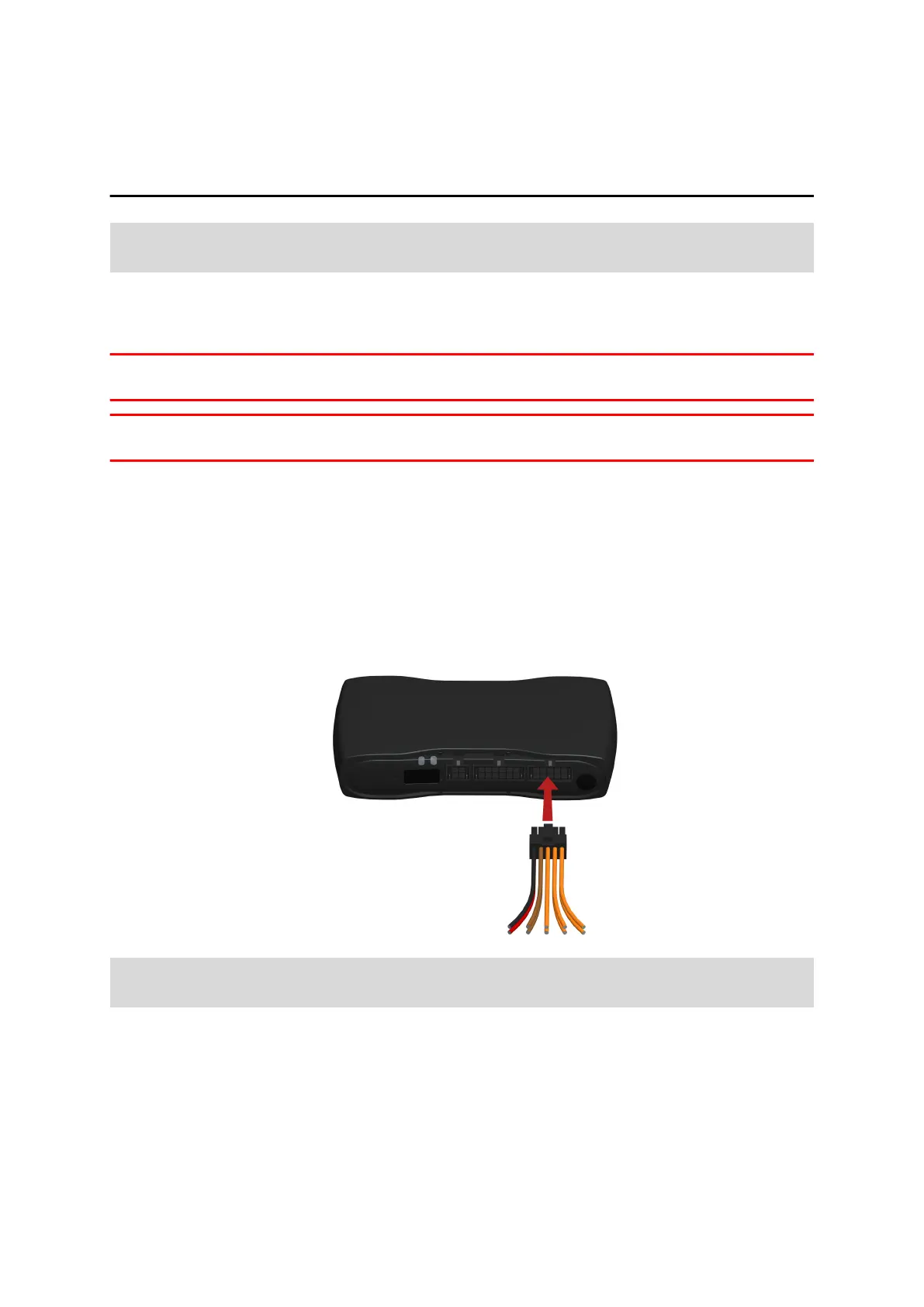

4. Insert the Power/CAN plug into the power cable connector.
If you need to disconnect the wires while the Power/CAN plug is plugged in the
LINK 710 make sure you disconnect the GND wire last.
12
