WECON VM AC Drive User Manual V2.0
WECON technology Co., Ltd
- 4 -

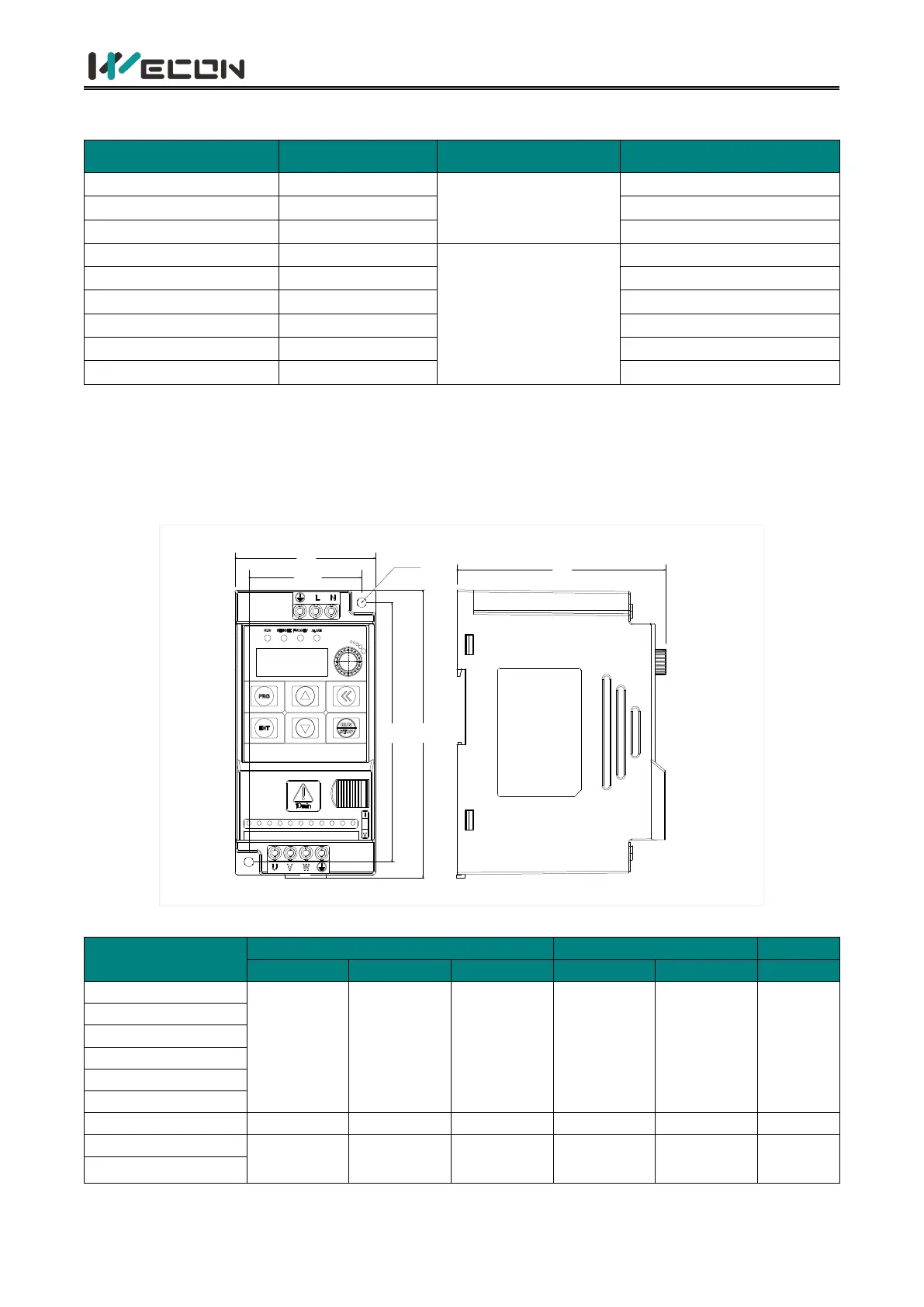

2.4 Product model
Model
Rated Power(kW)
Input Voltage
Rated Output Current(A)
VM-2SR75
0.75
Single Phase
AC 220V±15%
4
VM-2S1R5
1.5
7
VM-2S2R2
2.2
9.6
VM-4TR75
0.75
3 Phase
AC 380V±15%
2.5
VM-4T1R5
1.5
3.8
VM-4T2R2
2.2
5.1
VM-4T004
4
9
VM-4T5R5
5.5
13
VM-4T7R5
7.5
17
Table 2-3 Product model table
3 Installation
3.1 Overall structural drawing(unit: mm)
W
W1
d
D
H
H1
Figure 3-1 Outline dimension diagram
Model
Outer Dimension
Installation Dimension
Hole
H
W
D
H1
W1
d
VM-2SR75
142
72
116
130
59
5
VM-2S1R5
VM-2S2R2
VM-4TR75
VM-4T1R5
VM-4T2R2
VM-4T004
196
95
132
179
79
5.5
VM-4T5R5
225
115
154
208
99
5.5
VM-4T7R5
Table 3-1 Outline dimension
