WECON VM AC Drive User Manual V2.0
WECON technology Co., Ltd
- 5 -

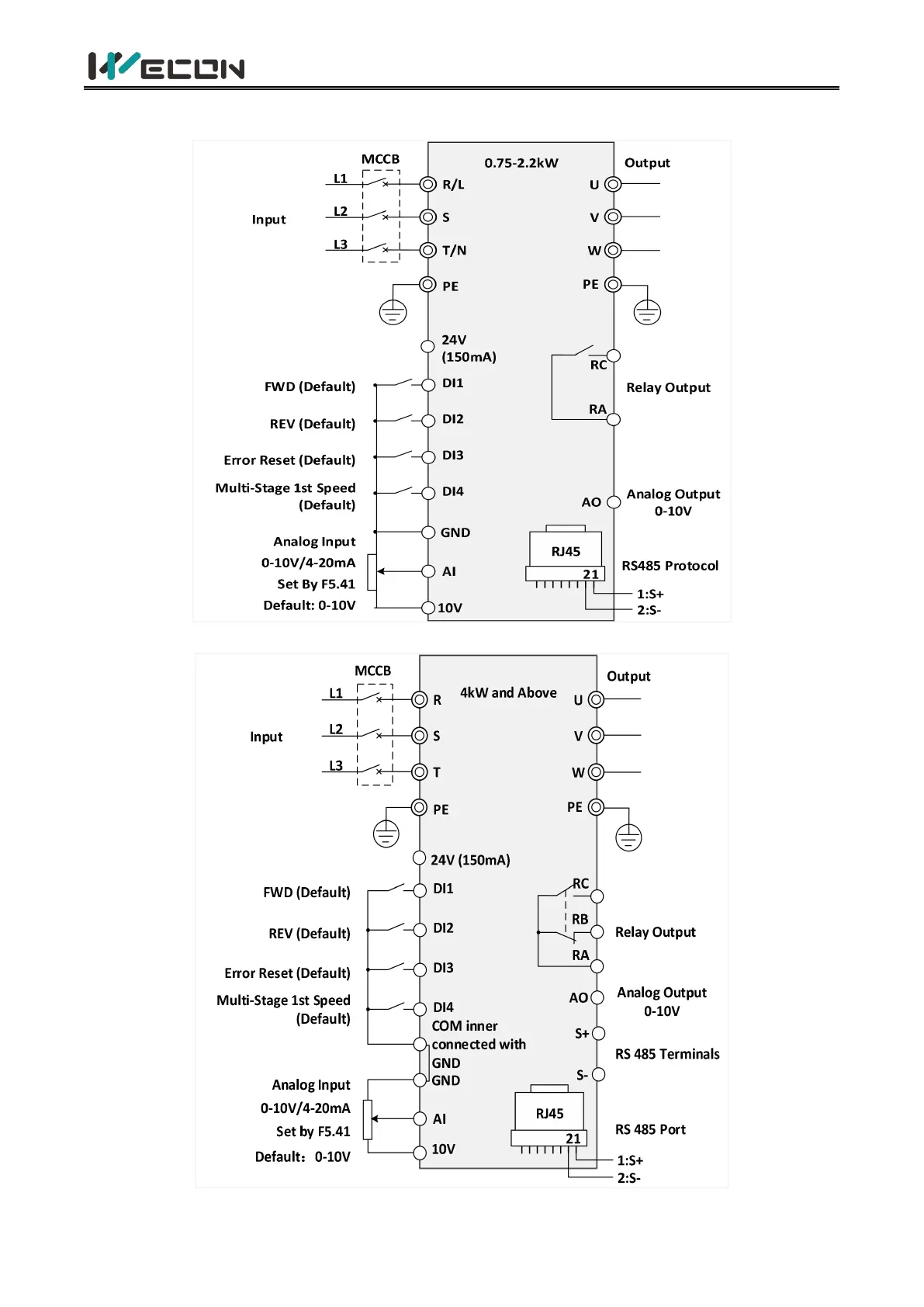

3.2 Terminal connection
Figure 3-2 Terminal connection
Figure 3-3 Terminal connection
