6.5. EXTERNAL SPEED CONTROLLER (OPTIONAL)
The running speed and the maximum speed adjust can be done using the external WEG EC Motor
speed controller.
Connect the control cables at the WEG EC Motor speed controller borne. Below picture gives the
connection sequence.

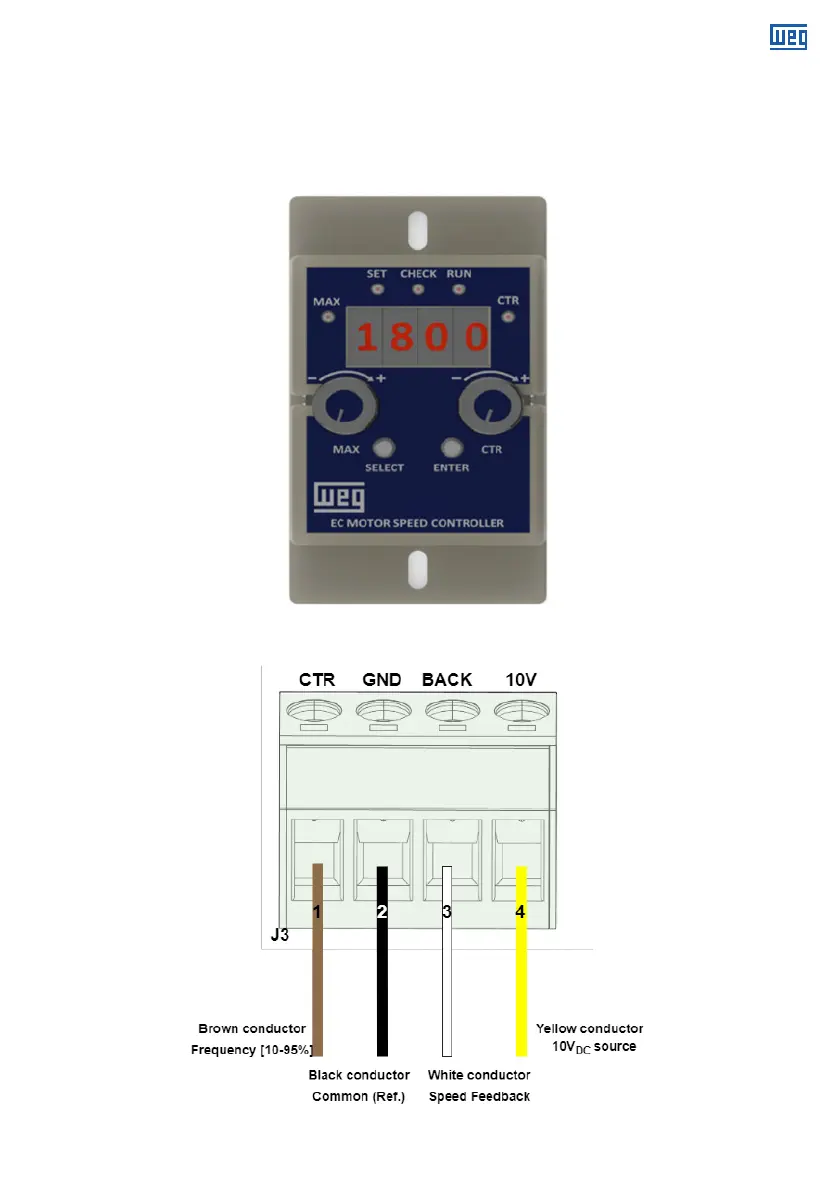

Figure 12 - Controller sequence connection
Figure 11 - WEG EC Motor speed controller
