7
3

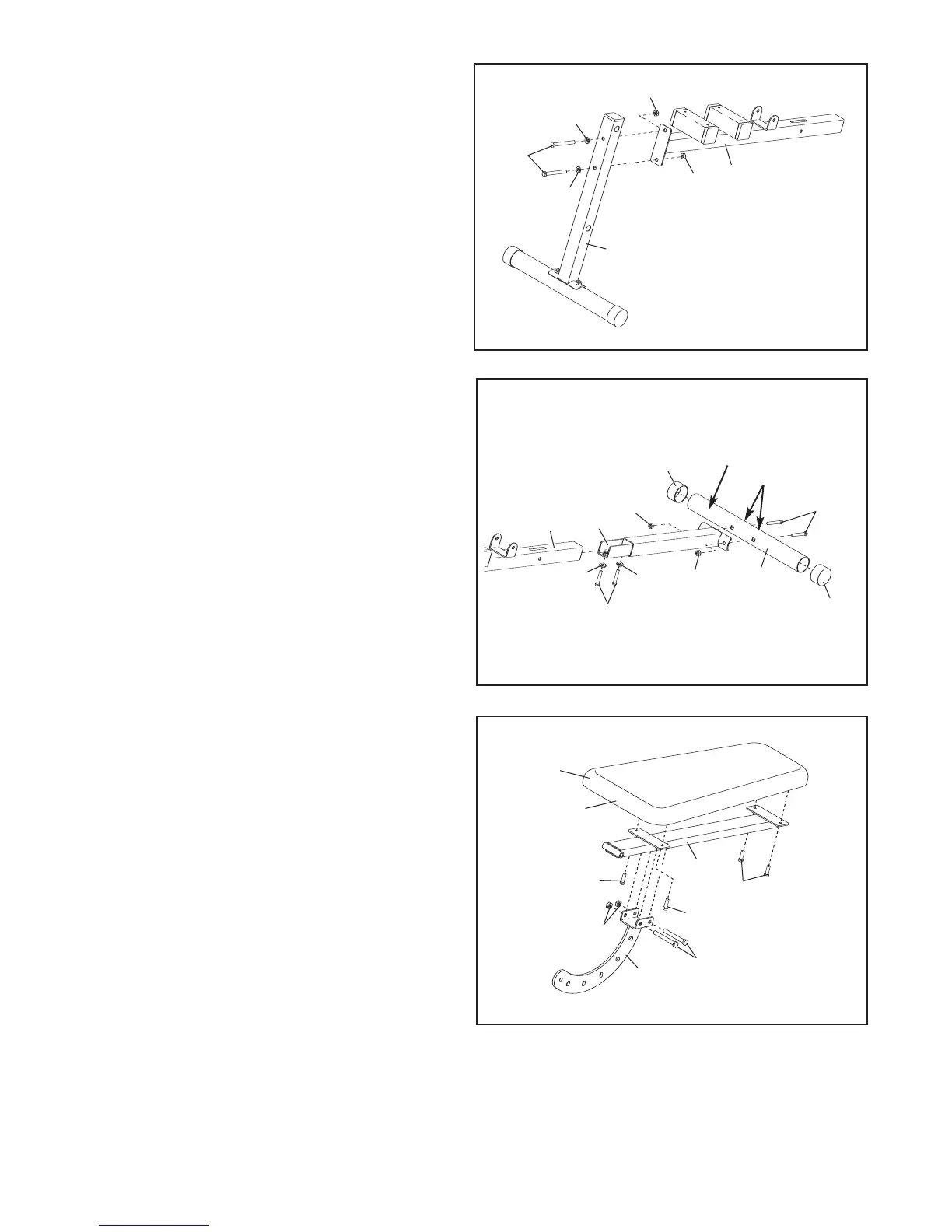

2. Attach the Front Leg (2) to the Frame (1) with
two M10 x 65mm Bolts (17), two M10 Large
W
ashers (20), and two M10 Nylon Locknuts
(19).
Do not tighten the Nylon Locknuts yet.
3. Press two 50mm Round Outer Caps (12) onto
the other Stabilizer (4).
Orient the Stabilizer (4) so that the indents and
the decals are in the positions shown, and attach
the Stabilizer to the Rear Leg (3) with two M10 x
63mm Carriage Bolts (18) and two M10 Nylon
Locknuts (19).
Do not tighten the Nylon
Locknuts yet.
Attach the Rear Leg (3) to the Frame (1) with
two M10 x 25mm Bolts (25) and two M10 Large
Washers (20).
Tighten the M10 Nylon Locknuts (19) used in
steps 1–3.
4. Orient the Pivot Bracket (6) as shown, and
attach it to the Backrest Frame (5) with two M8
x 68mm Bolts (26) and two M8 Nylon Locknuts
(27).
Orient the Backrest (7) as shown, and attach it
to the Backrest Frame (5) with four M6 x 16mm
Bolts (24).
2
4
1
19
1
9
2
20
20
17
20
25
19
19
4
12
12
18
3
1
20
Warning
Decal
Indents
7
Wide
End
5
24
24
24
27
26
6
