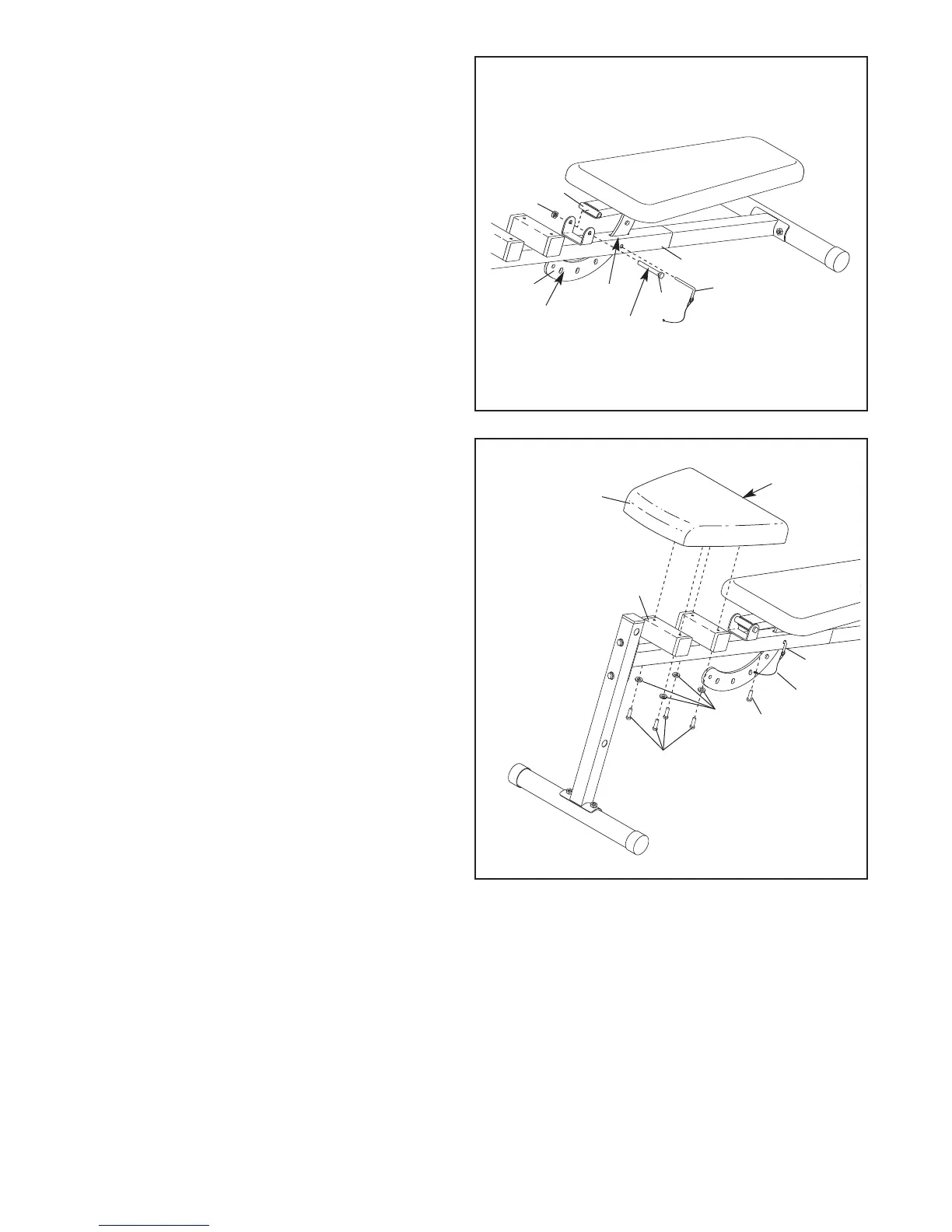

5. Insert the Pivot Bracket (6) into the slot in the
Frame (1).
Apply some of the included grease to the M10 x
8
5mm Bolt (23). Attach the Backrest Frame (5)
to the Frame (1) with the Bolt and an M10
Nylon Locknut (19). Do not overtighten the
Nylon Locknut; the Backrest Frame must
pivot easily.
Insert the Locking Pin (21) into the Frame (1)
and through an adjustment hole in the Pivot
Bracket (6).
6. Attach the tether on the Locking Pin (21) to the
bottom of the Frame (1) with an M4 x 16mm
Screw (28).
Orient the Seat (8) as shown, and attach it to
the Frame (1) with four M6 x 45mm Bolts (16)
and four M6 Washers (22).
6
21
23
6
5
19
1
Slot
Lubricate
Adjustment
Holes
8
1
16
22
28
Tether
21
Wide
End
