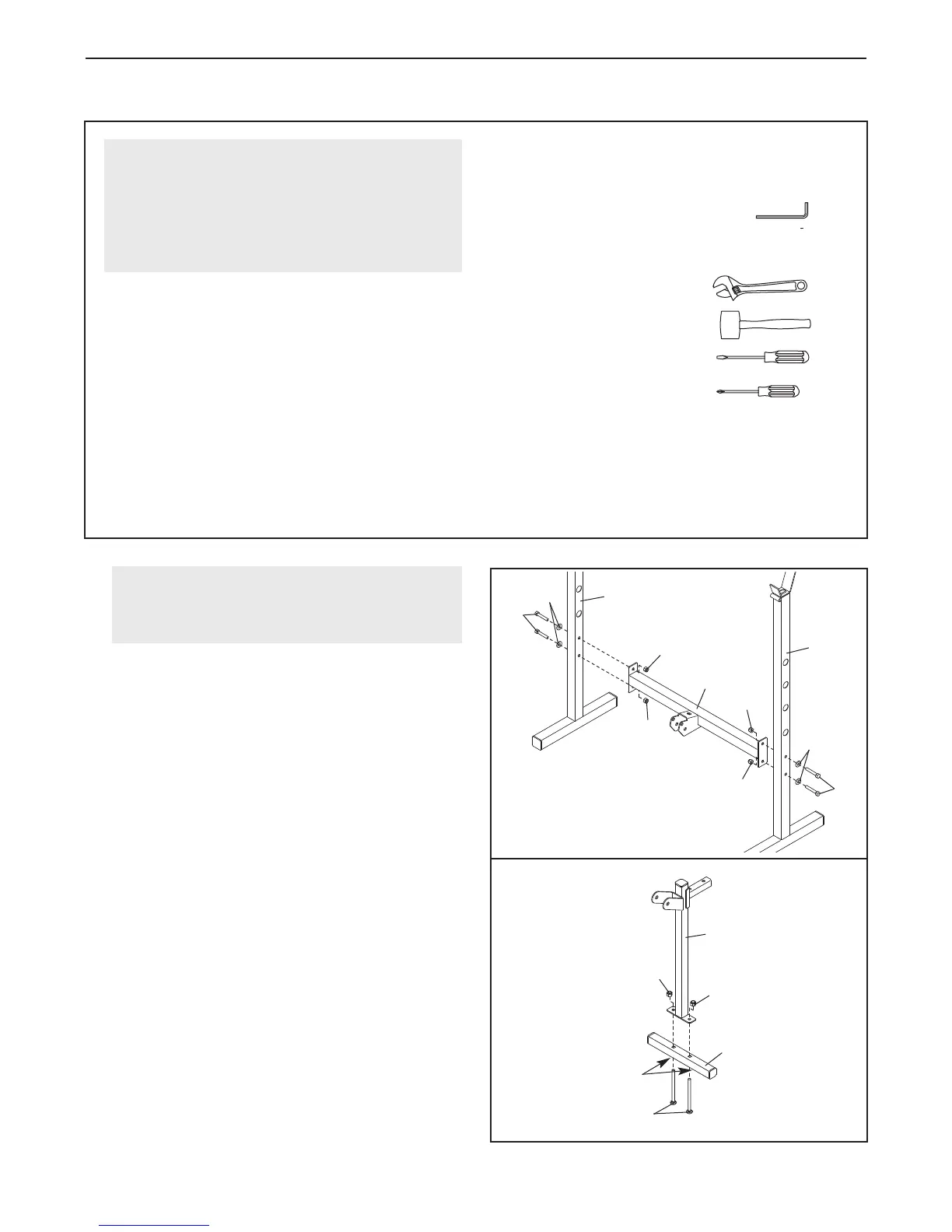

6
Before beginning assembly, carefully read the
following information and instructions:
•
Assembly requires two persons.
• For help identifying small parts, see the PART
IDENTIFICATION CHART on page 5.
•
Tighten all parts as you assemble them, unless
instructed to do otherwise.
• As you assemble the weight bench, make sure all
parts are oriented as shown in the drawings.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
m
aterials until assembly is completed.
In addition to the included hex key
and grease packets, the following tools (not
included) may be required for assembly:
• Two adjustable spanners
• One rubber mallet
• One standard screwdriver
• One Phillips screwdriver
Assembly will be more convenient if you have a
socket set, a set of open-end or closed-end span-
ners, or a set of ratchet spanners.
Make Assembly Easier
This manual is designed to ensure that the
weight bench can be assembled successfully
by anyone. Most people find that by setting
aside plenty of time, assembly will go smoothly.
ASSEMBLY
1.
Attach the Crossbar (3) to the two Uprights (1) with
four M8 x 53mm Bolts (14), four M8 Washers (12),
and four M8 Nylon Locknuts (13). Do not tighten
the Nylon Locknuts yet.
2. Orient the Stabilizer (31) so the recessed holes
are facing the floor. Attach the Stabilizer to the
Front Leg (8) with two M8 x 43mm Carriage Bolts
(29) and two M8 Nylon Locknuts (13). Do not
tighten the Nylon Locknuts yet.
2
1
13
13
29
Recessed
Holes
31
8
3
1
14
12
14
12
13
13
1
13
13
Before assembling the weight bench, make
sure that you have read and understand the
information in the box above.
