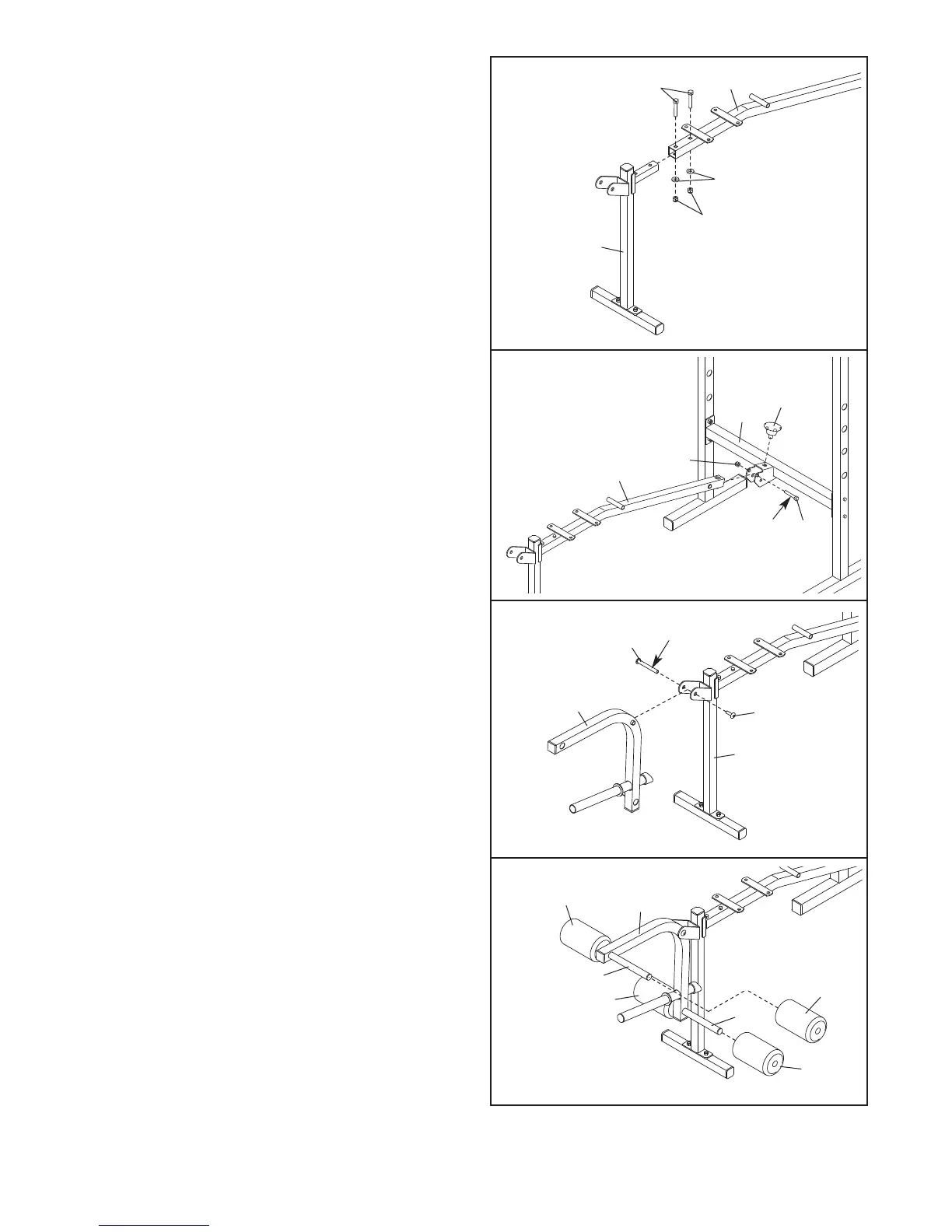

3. Attach the Front Leg (8) to the Frame (2) with two
M8 x 43mm Carriage Bolts (29), two M8 Washers
(
12), and two M8 Nylon Locknuts (13). D
o not
tighten the Nylon Locknuts yet.
4. Apply some of the included grease to an M10 x
55mm Bolt (30). Attach the Frame (2) to the upper
set of holes in the bracket on the Crossbar (3) with
the Bolt and an M10 Nylon Locknut (25). Do not
overtighten the Nylon Locknut; the Frame must
pivot easily.
Tighten the Adjustment Knob (23) into the bracket
on the Crossbar (3) and the Frame (2).
5. Apply grease to the barrel of an M10 x 52mm Bolt
Set (24). Attach the Leg Lever (4) to the bracket
on the Front Leg (8) with the Bolt Set. Make sure
that the barrel of the Bolt Set is inserted
through both sides of the bracket on the Front
Leg.
3
1
3
2
29
8
12
4
2
25
30
23
3
24
4
Grease
24
Grease
8
5
18
4
18
10
10
18
18
6
6. Insert the two Pad Tubes (10) into the Leg Lever
(4). Slide two Foam Pads (18) onto each Pad
Tube.
