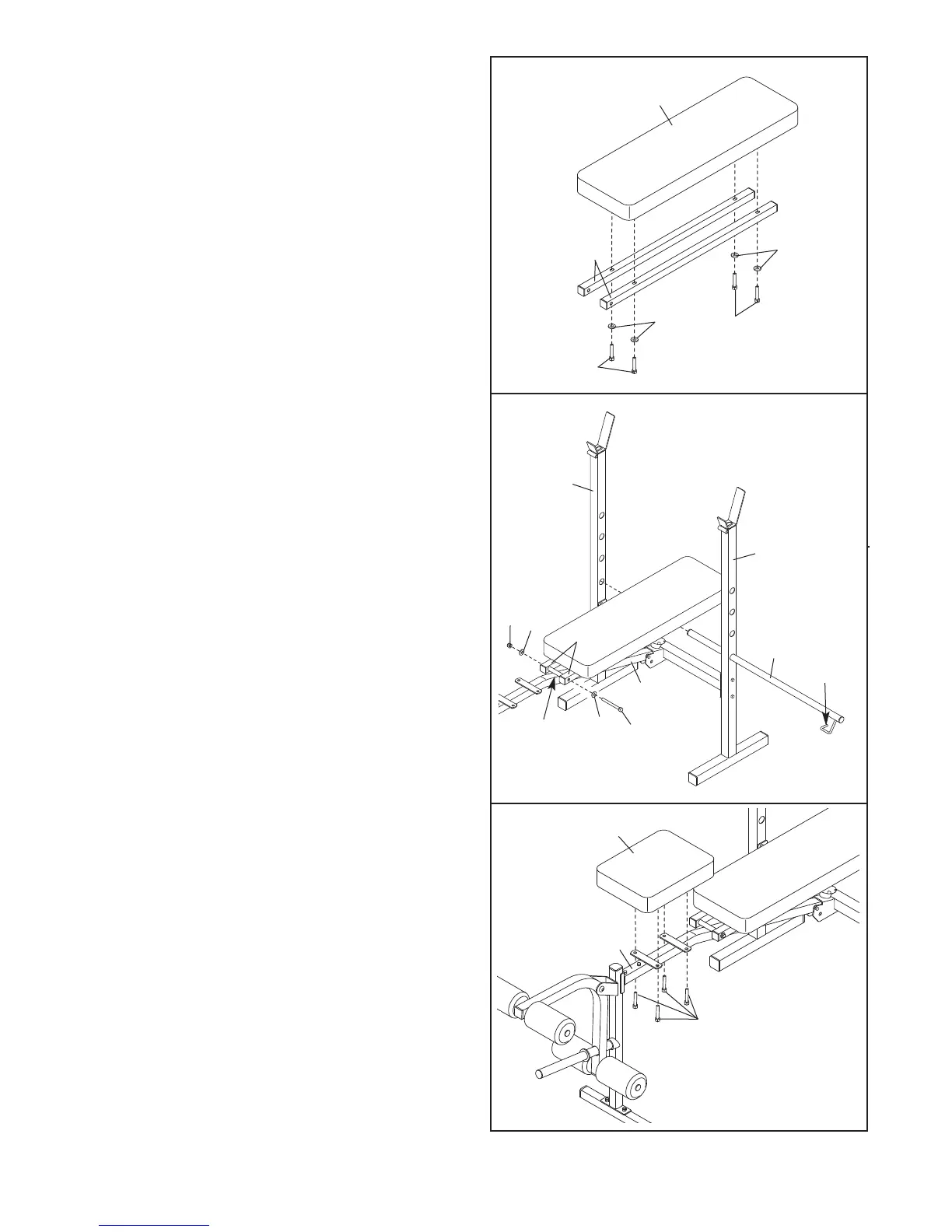

7. Attach the two Backrest Tubes (5) to the Backrest
(6) with four M6 x 38mm Screws (22) and four M6
W
ashers (20). D
o not tighten the Screws yet.
8. Insert the Support Rod (7) through a set of holes
in the Uprights (1). Make sure that the locking
pin is on the side shown. Rotate the Support
Rod to the locked position, with the locking pin
wrapped around the left Upright.
Apply grease to an M10 x 137mm Bolt (28).
Attach the Backrest Tubes (5) to the welded tube
on the Frame (2) with the Bolt, two M10 Washers
(26), and an M10 Nylon Locknut (25). Do not
overtighten the Nylon Locknut; the Backrest
Tubes must pivot easily.
See steps 1–3. Tighten the M8 Nylon Locknuts
(13) used in these steps.
See step 7. Tighten the four M6 x 38mm Screws
(22).
9. Attach the Seat (11) to the brackets on the Frame
(2) with four M6 x 16mm Screws (21).
7
8
20
20
22
22
5
6
9
26
28
5
26
25
7
Welded
Tube
1
2
Locking
Pin
1
1
1
21
2
8
