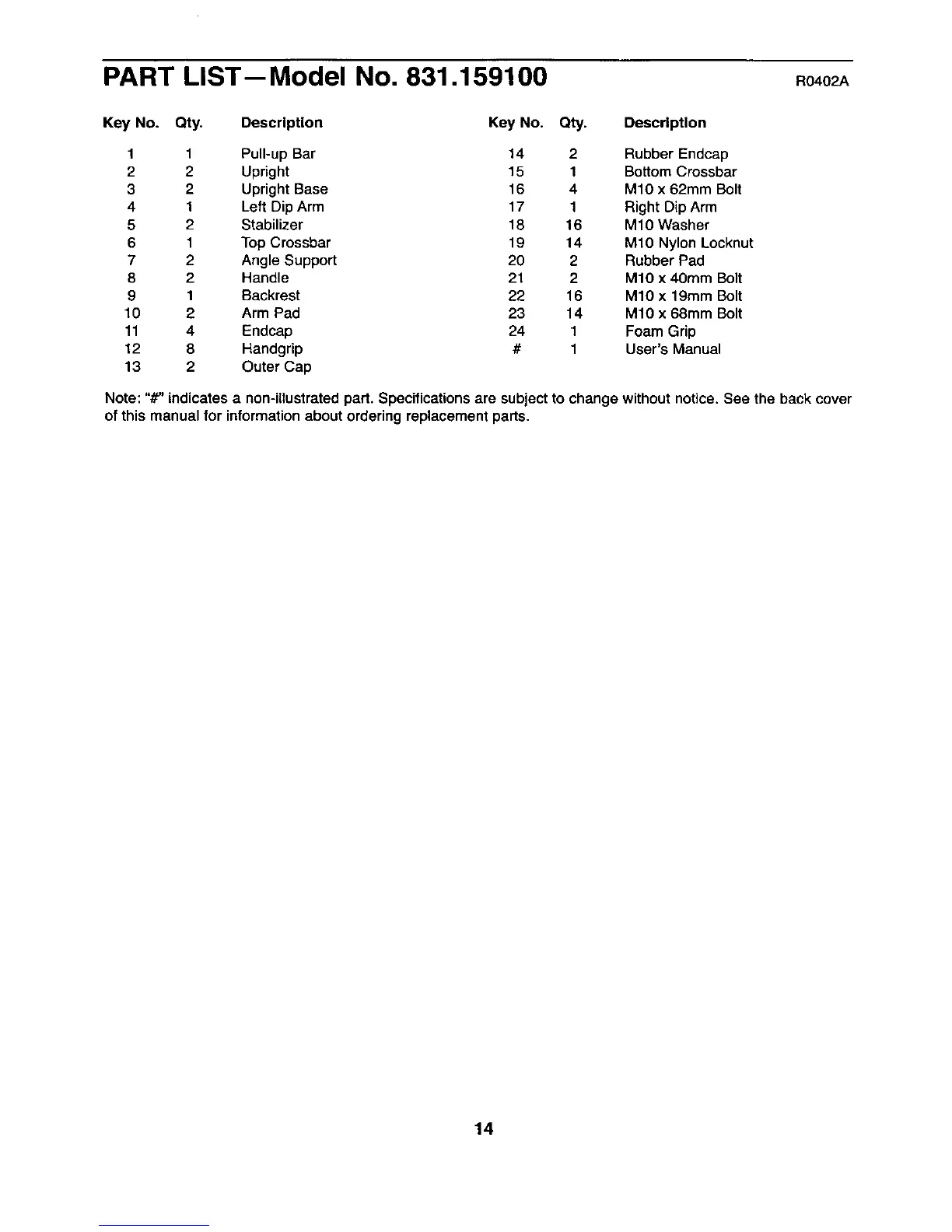

PART LIST-- Model No. 831.159100 R0402A
Key No. Qty. Description Key No. Qty. Description
1 1 Pull-up Bar 14 2 Rubber Endcap
2 2 Upright 15 1 Bottom Crossbar
3 2 Upright Base 16 4 M10 x 62mm Bolt
4 1 Left Dip Arm 17 1 Right Dip Arm
5 2 Stabilizer 18 16 M10 Washer
6 1 Top Crossbar 19 14 M10 Nylon Locknut
7 2 Angle Support 20 2 Rubber Pad
8 2 Handle 21 2 M10 x 40ram Bolt
9 1 Backrest 22 16 M10 x 19ram Bolt
10 2 Arm Pad 23 14 M10 x 68mm Bolt
11 4 Endcap 24 1 Foam Grip
12 8 Handgrip # 1 User's Manual
13 2 Outer Cap
Note: "#" indicatesa non-illustrated part. Specificationsare subject to changewithout notice. See the back cover
of this manual for information about ordering replacement parts.
