Weider 220 - PART IDENTIFICATION CHART

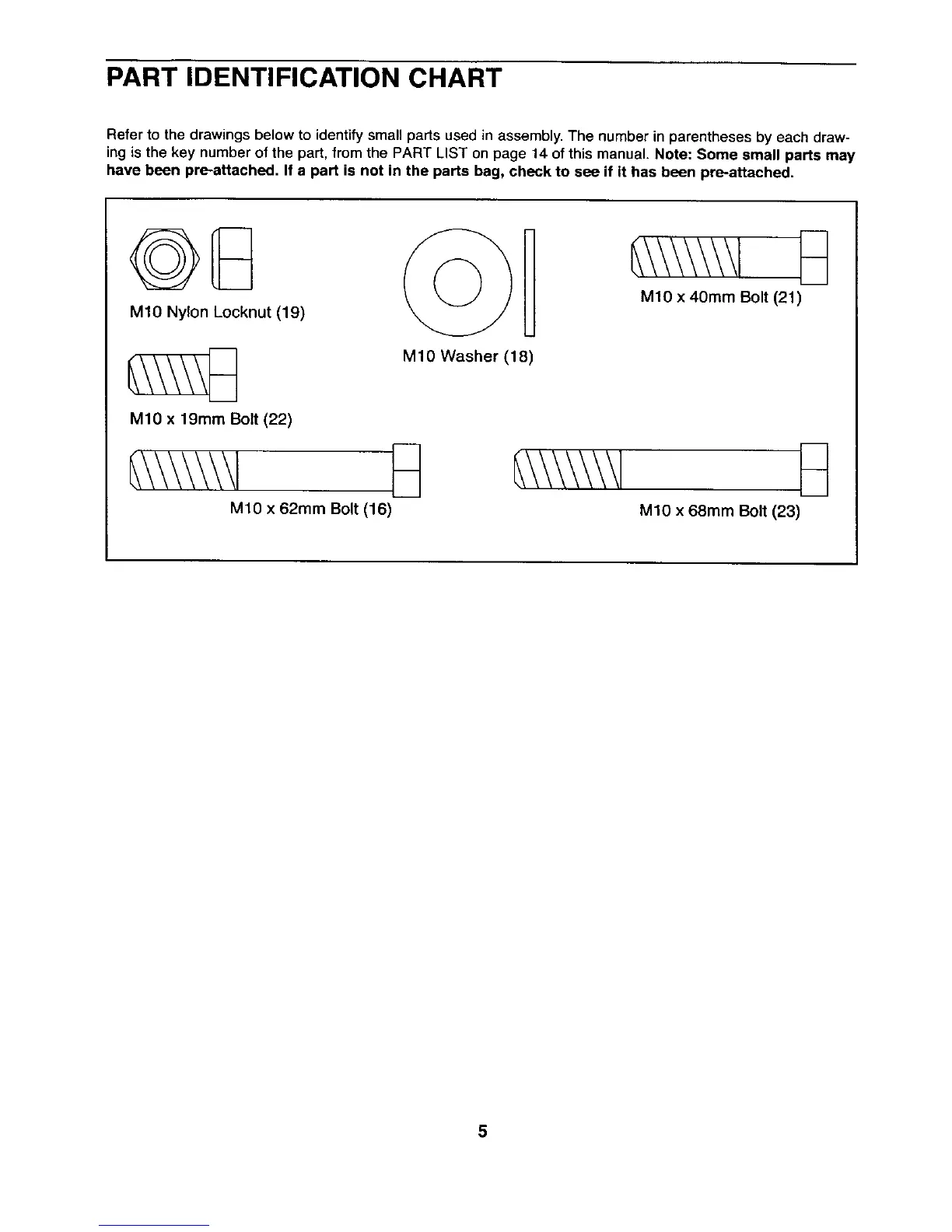

PART IDENTIFICATION CHART
Refer to the drawings below to identifysmall parts used in assembly. The number in parentheses by each draw-
ing is the key number of the part, from the PART LIST on page 14 of this manual. Note: Some small parts may
have been pre-attached. If a part is not in the parts bag, check to see if it has been pre-attached.
M10 Nylon Locknut (19)
M1O x 4Omm Bolt (21)
M10 x 19mm Bolt (22)
M10 x 62mm Bolt (16)
M10 Washer (18)
M10 x 68mm Bolt (23)
5
