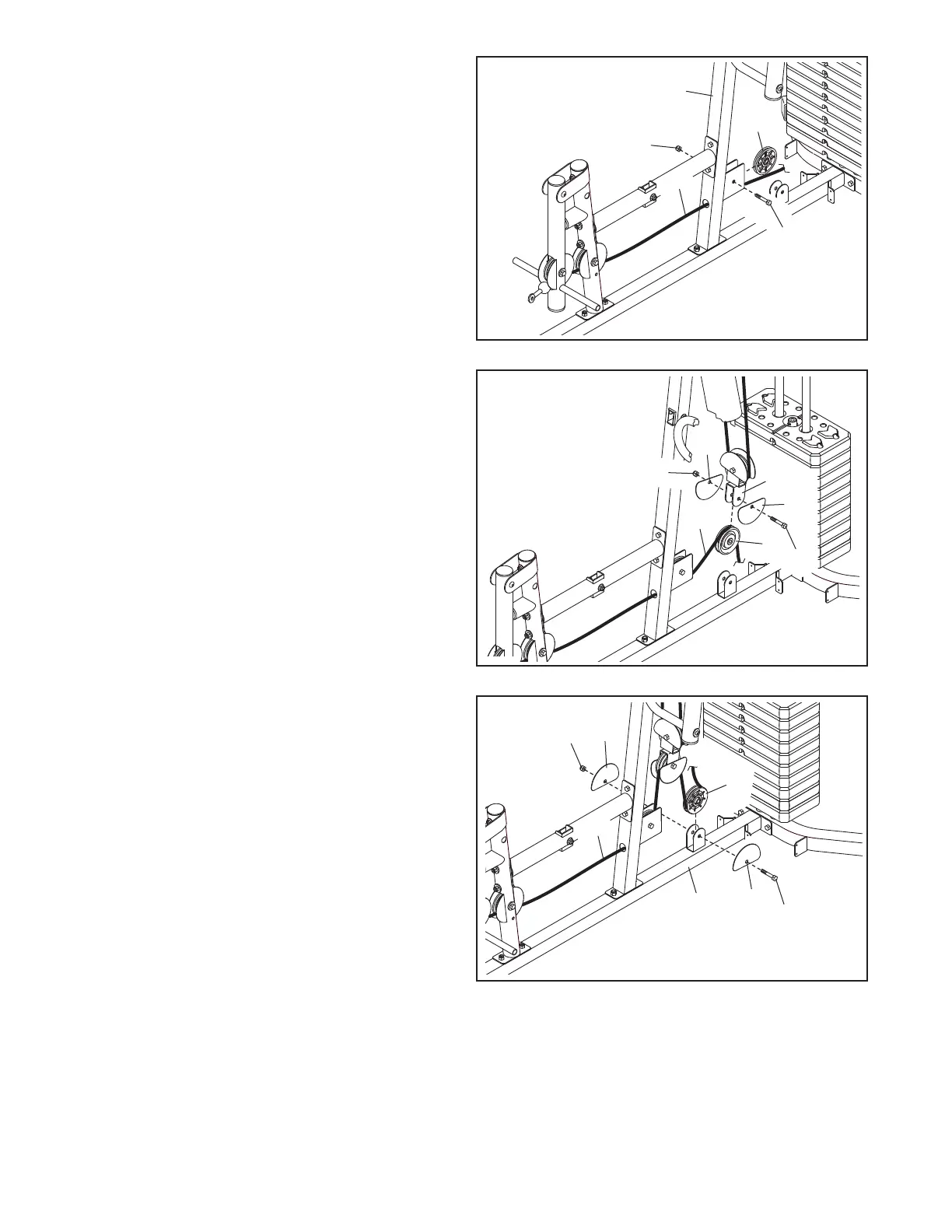

22. Route the Low Cable (53) through the Upright
(3) and under a Thick Pulley (48).
Attach the Thick Pulley (48) inside the Upright
(3) with an M10 x 45mm Bolt (81) and an M10
Locknut (56).
23. Route the Low Cable (53) over a Thick
Pulley (48).
Attach the Thick Pulley (48) and two Half Guards
(43) to the Double U-bracket (63) with an
M10 x 45mm Bolt (81) and an M10 Locknut (56).
Make sure that the Half Guards are on the
outside of the Double U-bracket as shown.
22
56
23
48
81
81
3
24. Route the Low Cable (53) under a Thick
Pulley (48).
Attach the Thick Pulley (48) and two Half Guards
(43) to the Base (1) with an M10 x 45mm
Bolt (81) and an M10 Locknut (56). Make sure
that the Half Guards are on the outside of the
bracket as shown.
24
43
1
43
81
56
48
63
43
43
