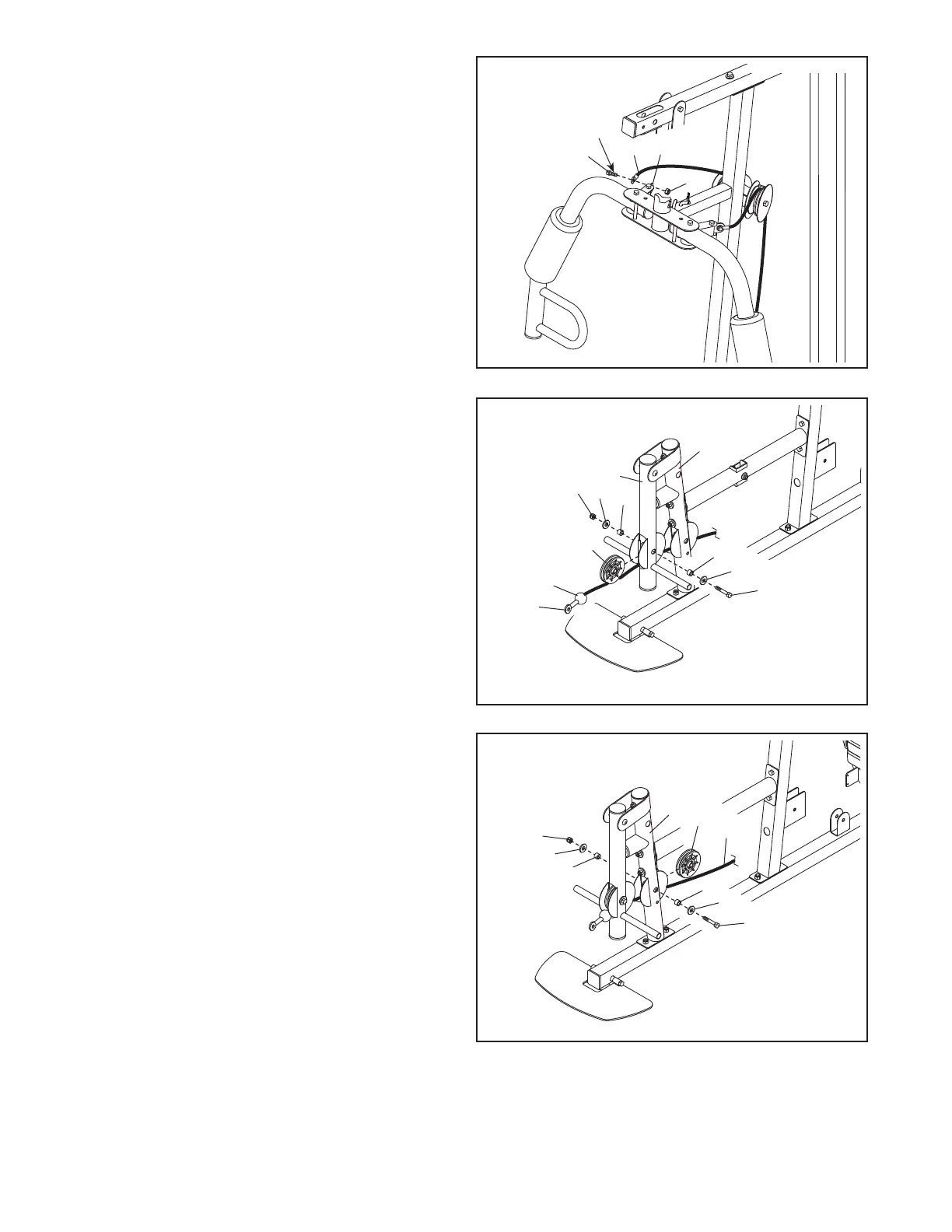

19. Apply grease to an M8 x 20mm Shoulder
Bolt (65).
Attach the Arm Cable (54) to the right Cable
Pivot (39) with the M8 x 20mm Shoulder Bolt
(65) and an M8 Locknut (58).
19
58
65
Grease
20. See the CABLE DIAGRAM. Identify the Low
Cable (53). Tip: The Low Cable is shorter than
the High Cable (55) and the threaded end of
the Low Cable is smaller than the threaded
end of the High Cable.
Route the Low Cable (53) through the Leg Lever
(8) and the Front Leg (7). Make sure that the
eyelet end (C) of the Low Cable is in the indi-
cated location.
Attach a Thick Pulley (48) inside the Leg
Lever (8), above the Low Cable (53), with an
M10 x 68mm Bolt (71), two M10 Washers
(57), two 13mm Spacers (52), and an M10
Locknut (56).
21. Attach a Thick Pulley (48) inside the Front
Leg (7), above the Low Cable (53), with an
M10 x 68mm Bolt (71), two M10 Washers
(57), two 13mm Spacers (52), and an M10
Locknut (56).
