35. Attach a Shroud Support (19) and the top of
the Left Shroud (17) to the left side of the Top
Frame (4) with two M4.2 x 19mm Self-tapping
Screws (49); do not tighten the Self-tapping
Screws yet.
Then, attach a Shroud Clamp (90) to the top of
the Left Shroud (17) and the Shroud Support
(19) with two M4.2 x 19mm Self-tapping
Screws (49); do not tighten the Self-tapping
Screws yet.

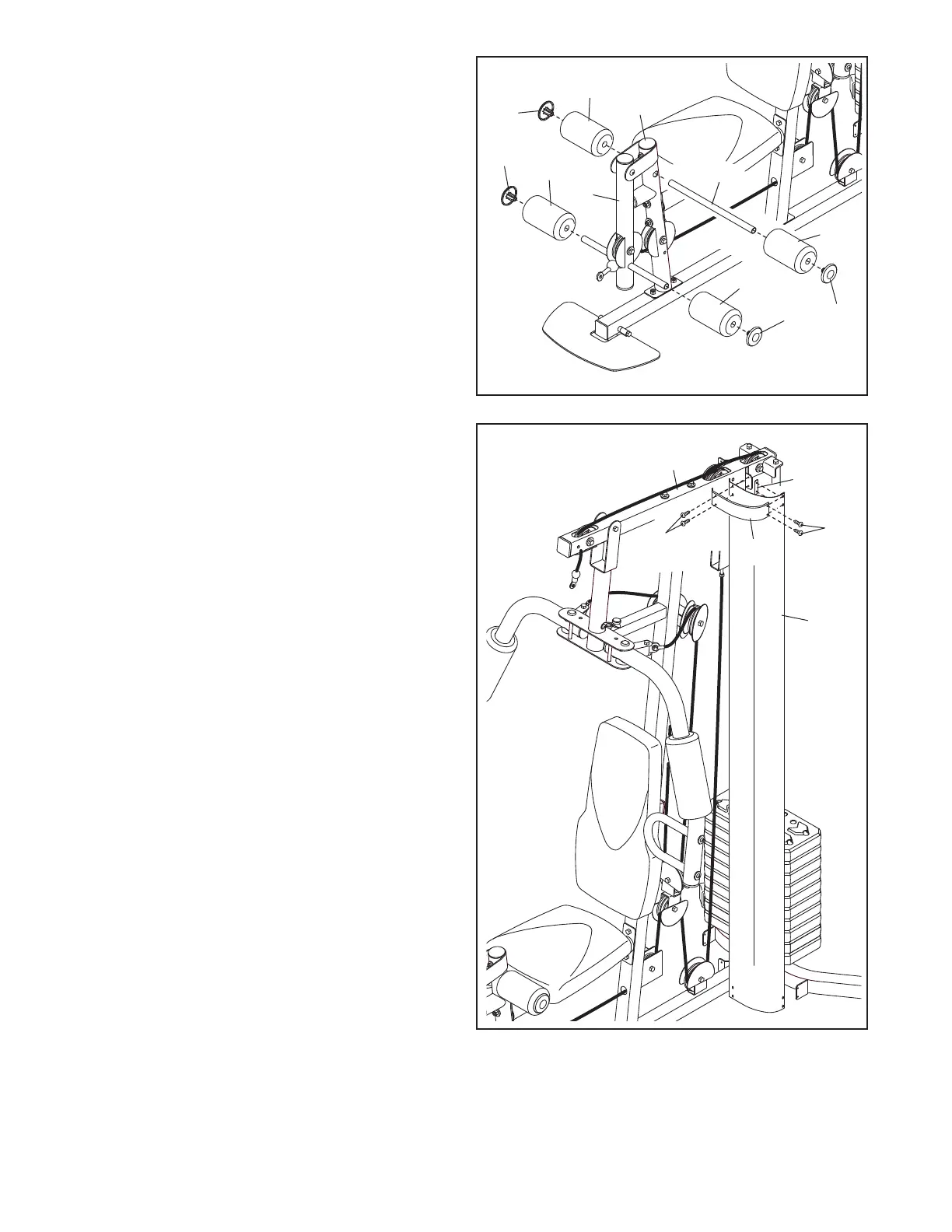

34. Insert the Pad Tube (29) into the Front Leg (7).
Slide a Small Foam Pad (28) onto each side of
the Pad Tube (29). Then, press a Pad Cap (34)
into each Small Foam Pad.
Slide a Small Foam Pad (28) onto each end of
the Leg Lever (8). Then, press a Pad Cap (34)
into each Small Foam Pad.
