12
29.
Wrap the Low Cable (47) under a 90mm Pulley
(38). Attach the Pulley and a pair of Pulley
Covers (44) inside the indicated bracket on the
Front Base (1) with an M10 x 53mm Bolt (61) and
an M10 Nylon Locknut (71).
Make sure the small
tabs on the Pulley Covers are on top.
28. Wrap the Low Cable (47) over a 90mm Pulley
(38). Attach the Pulley and a pair of Pulley
Covers (44) to the second set of holes from the
bottom of the two Pulley Plates (36) with an M10
x 53mm Bolt (61) and an M10 Nylon Locknut
(71).
Make sure that the large tabs on the
Pulley Covers are on top.
61
36
38
44
44
47
71
28
38
61
47
44
44
1
71
29
Large Tab
Small Tab

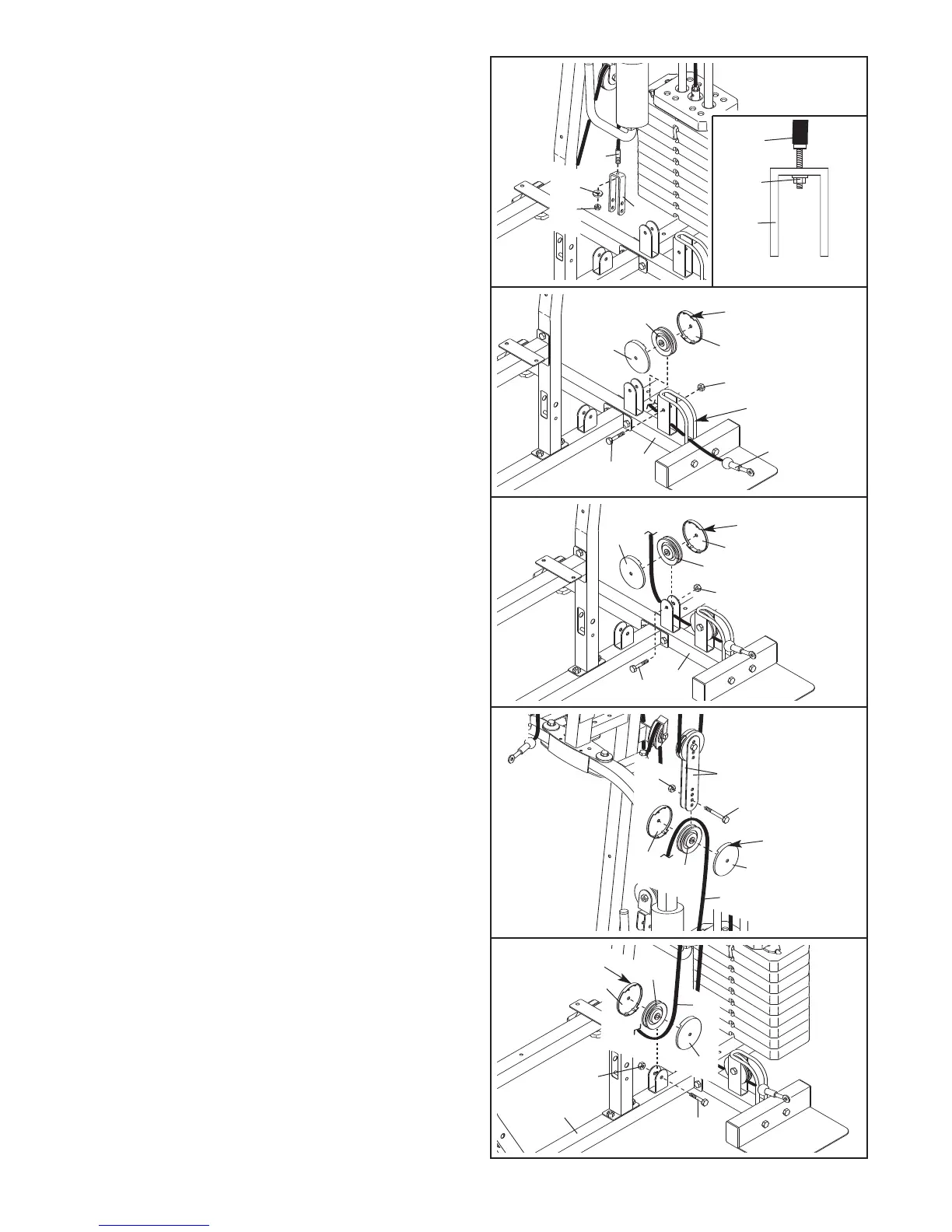

25. Attach the Short Cable (83) to the Large “U”-
bracket (82) with an M8 Washer (62) and an M8
N
ylon Locknut (70). D
o not completely tighten
the Locknut; it should be tightened so that
o
nly two threads of the Cable show past the
Locknut, as shown in the inset drawing.
82
83
70
62
2
5
26. Locate the Low Cable (47). Route the Cable
through the cage and under a 90mm Pulley (38).
Attach the Pulley and a pair of Pulley Covers (44)
inside the indicated bracket on the Centre Base
(2) with an M10 x 53mm Bolt (61) and an M10
Nylon Locknut (71).
Make sure that the large
tabs on the Pulley Covers are on top.
38
44
44
2
61
47
71
Cage
Large Tab
26
27. Wrap the Cable under a 90mm Pulley (38). Attach
the Pulley and a pair of Pulley Covers (44) inside
the indicated bracket on the Centre Base (2) with
an M10 x 53mm Bolt (61) and an M10 Nylon
Locknut (71). Make sure that the large tabs on
the Pulley Covers are on top.
61
38
44
44
2
71
27
Large Tab
83
70
82
