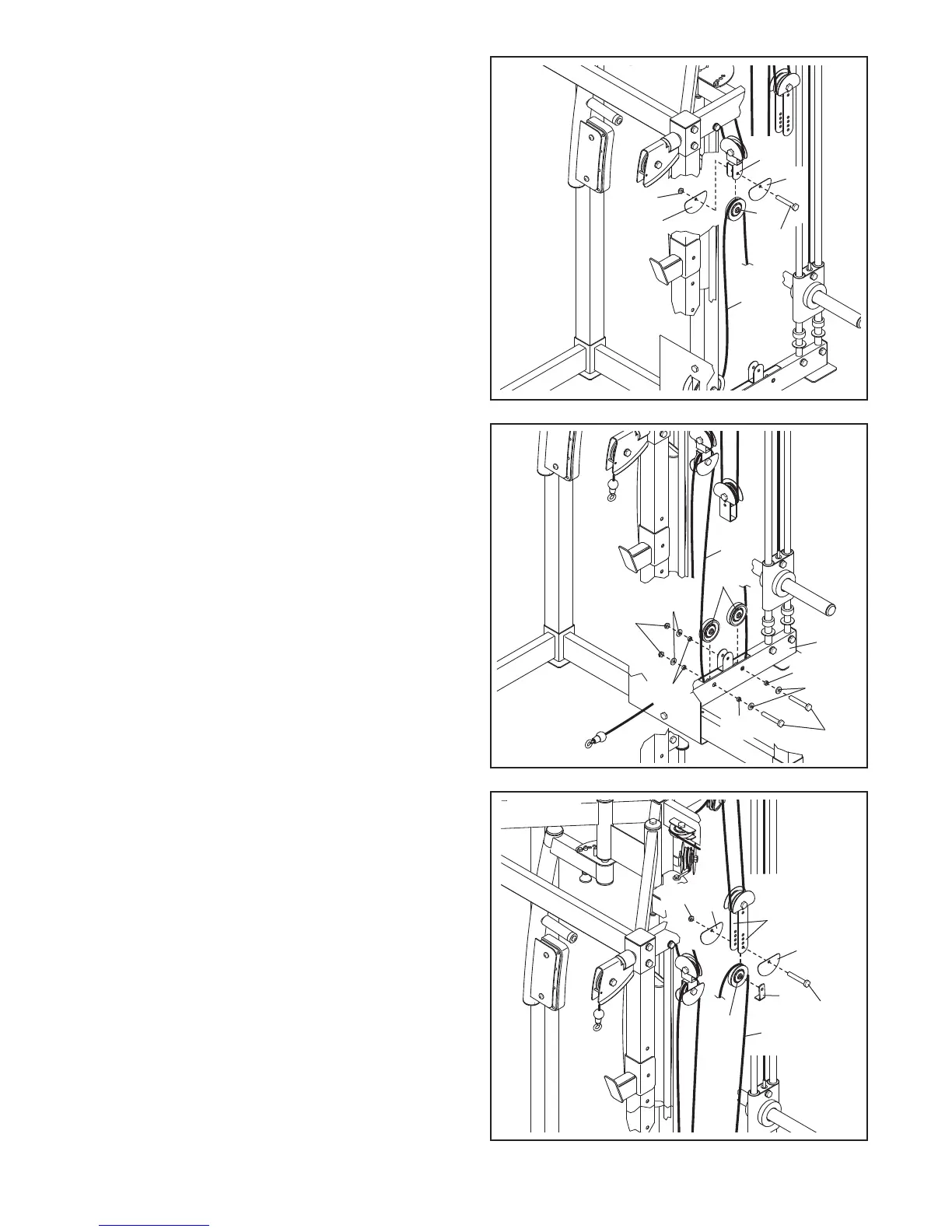

53. Wrap the Low Cable (80) over a Small Pulley
(74). Attach the Small Pulley and two Half Pulley
G
uards (91) to the Double “U”-bracket (98) with
an M10 x 45mm Bolt (140) and an M10 Nylon
L
ocknut (153). M
ake sure that the Half Pulley
Guards are oriented as shown.
53
54.
Route the Low Cable (80) through the Weight
Carriage Base (20) as shown. Attach two Small
Pulleys (74) inside the Weight Carriage Base with
two M10 x 55mm Bolts (127), four M10 Washers
(148), four M10 x 6.5mm Spacers (151), and two
M10 Nylon Locknuts (153).
54
55.
W
rap the Low Cable (80) over a Small Pulley
(74). Attach the Small Pulley, a Small Cable T
rap
(93), and two Half Pulley Guards (91) at the sec-
ond hole from the bottom of the two Pulley Plates
(92) with an M10 x 48mm Bolt (125) and an M10
Nylon Locknut (153).
Make sure that the Cable
Trap and the Half Pulley Guards are oriented
as shown.
