28

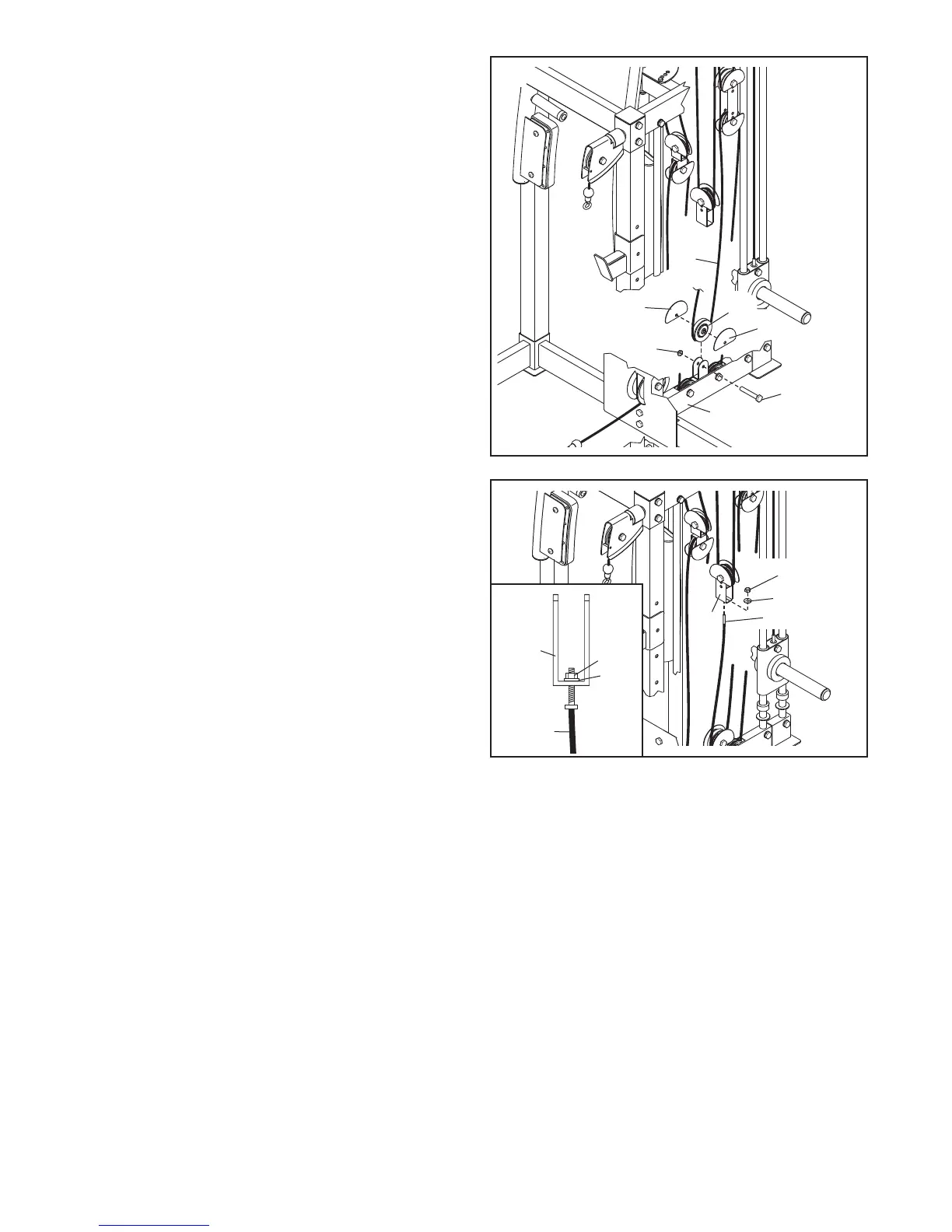

56. Wrap the Low Cable (80) under a Small Pulley
(74). Attach the Small Pulley and two Half Pulley
G
uards (91) to the Weight Carriage Base (20)
with an M10 x 45mm Bolt (140) and an M10
N
ylon Locknut (153). M
ake sure that the Half
Pulley Guards are oriented as shown.
57. Attach the Low Cable (80) to the “U”-bracket
(158) with an M8 Nylon Locknut (170) and an M8
Washer (164) (see the inset drawing). Tighten
the Nylon Locknut exactly two full turns onto
the Cable.
57
158
170
80
140
153
80
164
91
20
91
74
56
80
158
170
164
58. Make sure that all parts have been properly tightened. The use of the remaining parts will be explained in
ADJUSTMENT
, beginning on the following page.
Before using the weight bench, pull each cable a few times to make sure that the cables move smoothly
over the pulleys. If one of the cables does not move smoothly
, find and correct the problem.
IMPORT
ANT: If
the cables are not properly installed, they may be damaged when heavy weight is used. See the
CABLE DIAGRAM on page 34 for proper cable routing. If there is any slack in the cables, you will
need to remove it by tightening the cables. See MAINTENANCE on page 33.
