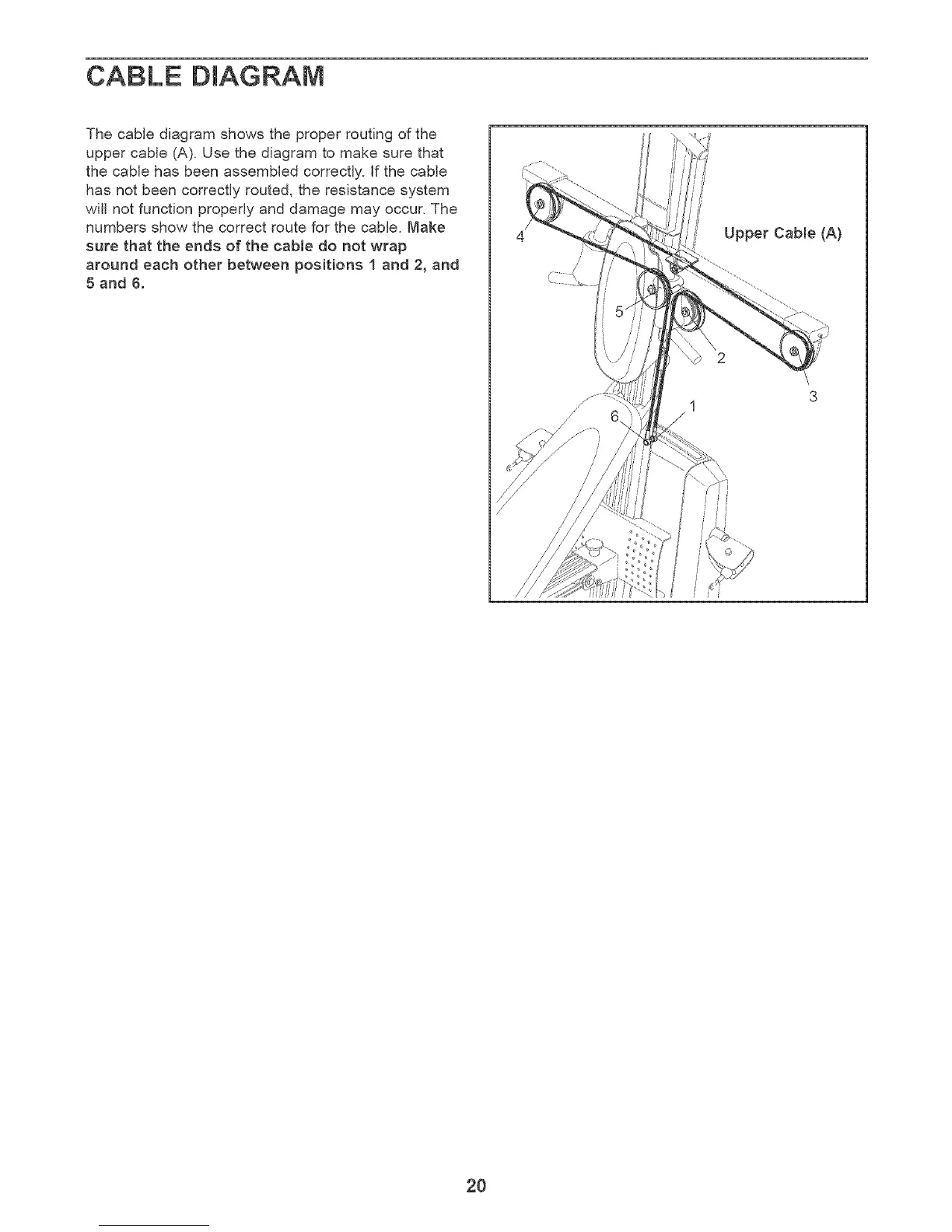

CABLE DHAGRAM
The cable diagram shows the proper routing of the
upper cable (A). Use the diagram to make sure that
the cable has been assembled correctly, if the cable
has not been correctly routed, the resistance system
will not function properly and damage may occur. The
numbers show the correct route for the cable. Make
sure that the ends of the cable do not wrap
around each other between positions 1 and 2, and
5 and 6.
4
1
/
Upper Cable (A)
2O
To Next Page
