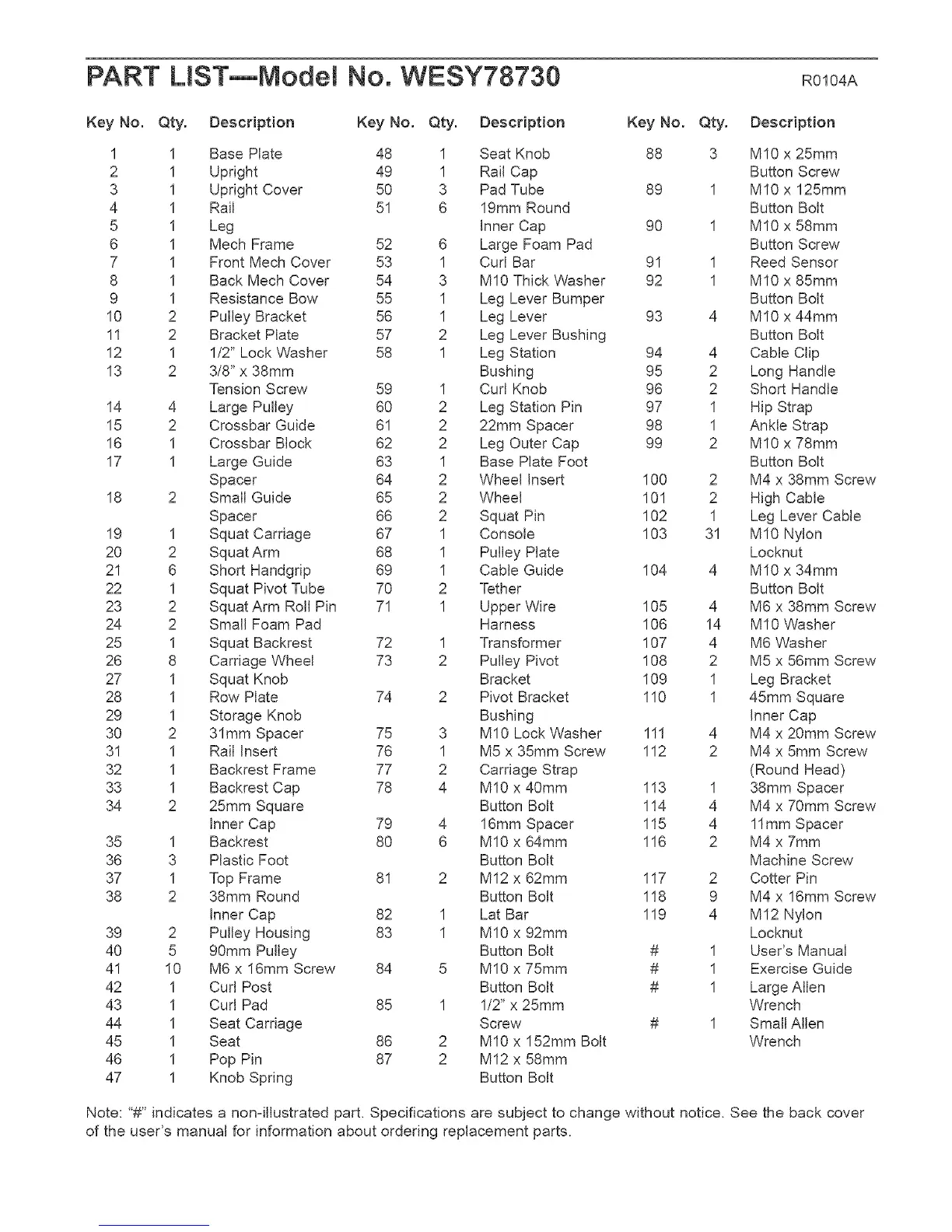

PART LiST--Model No. WESY78730 R0104A
Key No. Qty. Description Key No. Qty.
1 1 Base Plate 48 1
2 1 Upright 49 1
3 1 Upright Cover 50 3
4 1 Rail 51 6
5 1 Leg
6 1 Mech Frame 52 6
7 1 Front Mech Cover 53 1
8 1 Back Mech Cover 54 3
9 1 Resistance Bow 55 1
10 2 Pulley Bracket 56 1
11 2 Bracket Plate 57 2
12 1 1/2" Lock Washer 58 1
13 2 3/8" x 38mm
Tension Screw 59 1
14 4 Large Pulley 60 2
15 2 Crossbar Guide 61 2
16 1 Crossbar Block 62 2
17 1 Large Guide 63 1
Spacer 64 2
18 2 Small Guide 65 2
Spacer 66 2
19 1 Squat Carriage 67 1
20 2 Squat Arm 68 1
21 6 Short Handgrip 69 1
22 1 Squat Pivot Tube 70 2
23 2 Squat Arm Roll Pin 71 1
24 2 Small Foam Pad
25 1 Squat Backrest 72 1
26 8 Carriage Wheel 73 2
27 1 Squat Knob
28 1 Row Plate 74 2
29 1 Storage Knob
30 2 31mm Spacer 75 3
31 1 Rail Insert 76 1
32 1 Backrest Frame 77 2
33 1 Backrest Cap 78 4
34 2 25mm Square
Inner Cap 79 4
35 1 Backrest 80 6
36 3 Plastic Foot
37 1 Top Frame 81 2
38 2 38mm Round
Inner Cap 82 1
39 2 Pulley Housing 83 1
40 5 90mm Pulley
41 10 M6 x 16mm Screw 84 5
42 1 Curl Post
43 1 Curl Pad 85 1
44 1 Seat Carriage
45 1 Seat 86 2
46 1 Pop Pin 87 2
47 1 Knob Spring
Description Key No. Qty. Description
Seat Knob 88 3 M10 x 25mm
Rail Cap Button Screw
Pad Tube 89 1 M1Ox 125mm
19mm Round Button Bolt
Inner Cap 90 1 M1Ox 58mm
Large Foam Pad Button Screw
Curl Bar 91 1 Reed Sensor
M10 Thick Washer 92 1 M10 x 85mm
Leg Lever Bumper Button Bolt
Leg Lever 93 4 M10 x 44mm
Leg Lever Bushing Button Bolt
Leg Station 94 4 Cable Clip
Bushing 95 2 Long Handle
Curl Knob 96 2 Short Handle
Leg Station Pin 97 1 Hip Strap
22mm Spacer 98 1 Ankle Strap
Leg Outer Cap 99 2 M10 x 78mm
Base Plate Foot Button Bolt
Wheel insert 100 2 M4 x 38mm Screw
Wheel 101 2 High Cable
Squat Pin 102 1 Leg Lever Cable
Console 103 31 M10 Nylon
Pulley Plate Locknut
Cable Guide 104 4 M10 x 34mm
Tether Button Bolt
Upper Wire 105 4 M6 x 38mm Screw
Harness 106 14 M10 Washer
Transformer 107 4 M6 Washer
Pulley Pivot 108 2 M5 x 56mm Screw
Bracket 109 1 Leg Bracket
Pivot Bracket 110 1 45mm Square
Bushing Inner Cap
M10 Lock Washer 111 4 M4 x 20mm Screw
M5 x 35mm Screw 112 2 M4 x 5mm Screw
Carriage Strap (Round Head)
M10 x 40mm 113 1 38mm Spacer
Button Bolt 114 4 M4 x 70mm Screw
16mm Spacer 115 4 11mm Spacer
M10 x 64mm 116 2 M4 x 7mm
Button Bolt Machine Screw
M12 x 62mm 117 2 Cotter Pin
Button Bolt 118 9 M4 x 16mm Screw
Lat Bar 119 4 M12 Nylon
M10 x 92mm Locknut
Button Bolt # 1 User's Manual
M10 x 75mm # 1 Exercise Guide
Button Bolt # 1 Large Allen
1/2" x 25mm Wrench
Screw # 1 Small Allen
M10 x 152mm Bolt Wrench
M12 x 58mm
Button Bolt
Note: "#" indicates a non=illustrated part. Specifications are subject to change without notice. See the back cover
of the user's manual for information about ordering replacement parts.
