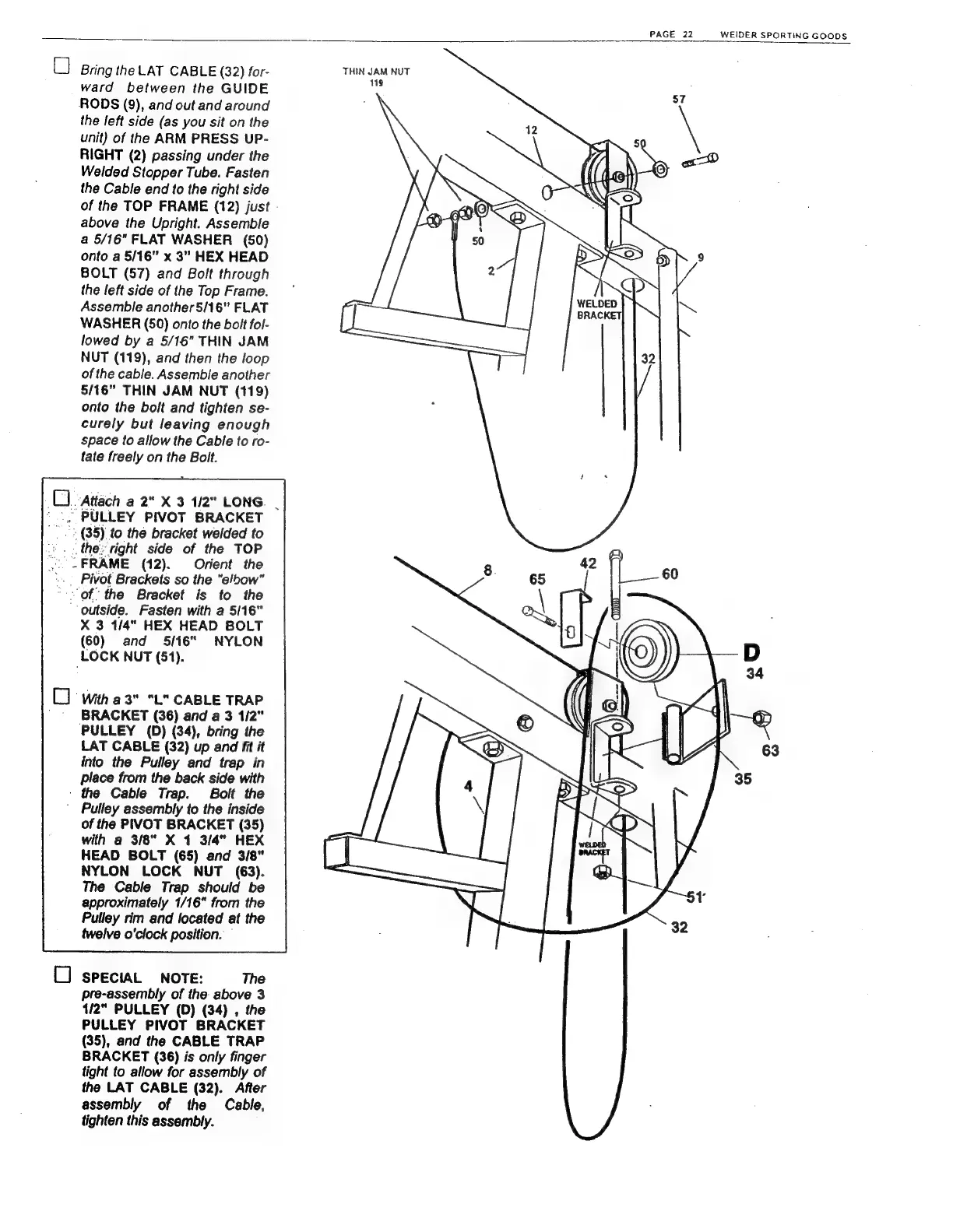

PAGE
22
WEIDER
SPORTING
GOODS
(0
Bring
the
LAT
CABLE
(32)
for-
THIN
JAM
NUT
ward
between
the
GUIDE
2”
RODS
(9),
and
out
and
around
:
the
left
side
(as
you
sit
on
the
unit)
of
the
ARM
PRESS
UP-
RIGHT
(2)
passing
under
the
Welded
Stopper
Tube.
Fasten
the
Cable
end
to
the
right
side
of
the
TOP
FRAME
(12)
just
above
the
Upright.
Assemble
a
5/16"
FLAT
WASHER
(50)
onto
a
5/16"
x
3"
HEX
HEAD
BOLT
(57)
and
Bolt
through
the
left
side
of
the
Top
Frame.
Assemble
another5/16"
FLAT
WASHER
(50)
onto
the
bolt
fol-
lowed
by
a
5/16"
THIN
JAM
NUT
(119),
and
then
the
loop
ofthe
cable.
Assemble
another
5/16"
THIN
JAM
NUT
(119)
onto
the
bolt
and
tighten
se-
curely
but
leaving
enough
space
to
allow
the
Cable
to
ro-
tate
freely
on
the
Bolt.
О
Attach
а
2"
X
3
12"
LONG.
_
5.2
PULLEY
PIVOT
BRACKET
|.
1
(35)
to
the
bracket
welded
to
*..the:right
side
of
the
TOP
221
ЕВАМЕ
(12.
Orient
the
~.
Pivot
Brackets
so
the
"elbow"
701"
the
Bracket
is
to
the
"outside.
Fasten
with
a
5116"
X
3
1/4"
HEX
HEAD
BOLT
(60)
and
5/16"
NYLON
LOCK
NUT
(51).
C]
with
a3"
"L"
CABLE
TRAP
^.
BRACKET
(36)
and
а
3
1/2"
PULLEY
(D)
(34),
bring
the
LAT
CABLE
(32)
up
and
fit
it
into
the
Pulley
and
trap
in
place
from
the
back
side
with
:
the
Cable
Trap.
Bolt
the
`
Pulley
assembly
to
the
inside
of
the
PIVOT
BRACKET
(35)
with
a
3/8"
X
1
3/4"
HEX
HEAD BOLT
(65)
and
3/8"
NYLON
LOCK
NUT
(63).
The
Cable
Trap
should
be
approximately
1/16"
Тот
the
Pulley
rim
and
located
at
the
twelve
o'clock
position.
(0
sPECIAL
NOTE:
Тһе
pre-assembly
of
ће:
above
3
1/2"
PULLEY
(D)
(34)
,
the
PULLEY
PIVOT
BRACKET
(35),
and
the
CABLE
TRAP
BRACKET
(36)
is
only
finger
tight
to
allow
for
assembly
of
the
LAT
CABLE
(32).
After
assembly
of
the
Cable,
tighten
this
assembly.
