PAGE 23
WEIDER SPORTING 60005
a

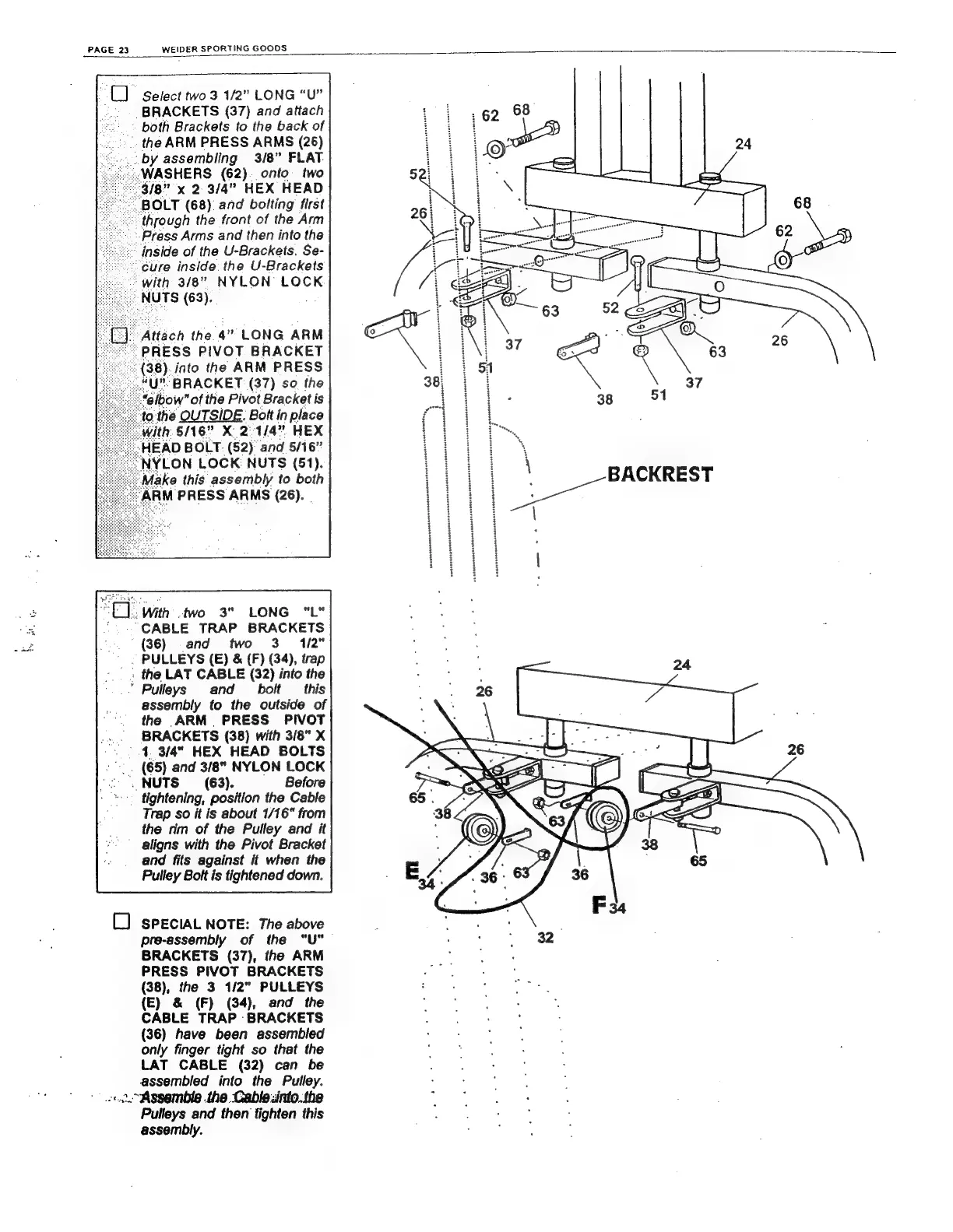

Select мо 3 1/2" LONG “U”
BRACKETS (37) and attach
both Brackets to the back of
> the ARM PRESS ARMS (26)
:by assembling 3/8” FLAT.
ASHERS (62). onto. two
18" x 2 3/4" HEX HEAD
JOLT (68). and bolting first
hrough the front of the Arm
ass Arms and then into the
inside of the U-Brackets. Se-
"сиге inside. the U-Brackets
ith 3/8" NYLON LOCK
NUTS (63).
‘Attach the. 4" LONG ARM
RESS PIVOT BRACKET
).into the ARM PRESS
+ BRACKET (37) so the
w"of the Pivot Bracket is
he OUTSIDE. Bott in place
һ 5/16" X 2 1/4" HEX
AD BOLT. (52) and 5/16”
LON LOCK: NUTS (51).
Ке this: assembly to both
M PRESS ARMS (26).
With мо 3" LONG “L"
“CABLE TRAP BRACKETS
(36) and two 3 1/2"
. . PULLEYS (E) & (F) (34), trap
: the LAT CABLE (32) into the
” Pulleys and bolt Ші
assembly to the outside of
the ARM PRESS PIVOT
BRACKETS (38) with 3/8" X
4. 3/4" HEX HEAD BOLTS
. (65) and 3/8" NYLON LOCK
"NUTS (63). Before
tightening, position the Cable
Trap so it is about 1/16" from
the rim of the Pulley and it
aligns with the Pivot Bracket
and fits against it when the
Pulley Bolt is tightened down.
SPECIAL NOTE: The above
pre-assembly of the "U"
BRACKETS (37), the ARM
PRESS PIVOT BRACKETS
(38), the 3 1/2" PULLEYS
(E) & (F) (34), and the
CABLE TRAP BRACKETS
(36) have been assembled
only finger tight so that the
LAT CABLE (32) can be
assembled into the Pulley.
Assemble the Cable into. fhe
Pulleys and then tighten this
assembly.
38 51
