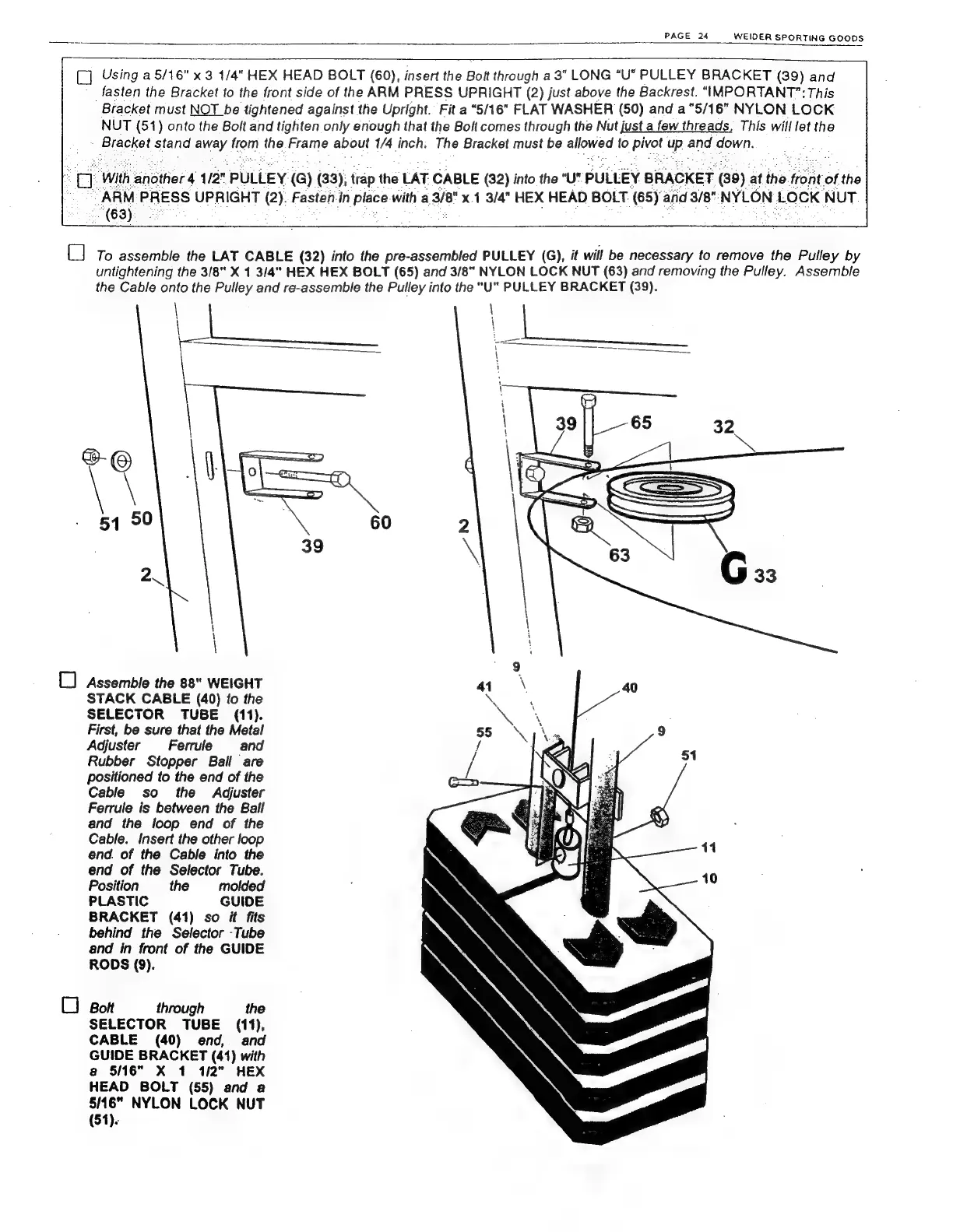

PAGE
24
WEIDER
SPORTING
GOODS
Ц]
Using
a
5/16"
x
3
1/4"
HEX
HEAD
BOLT
(60),
insert
the
Bolt
through
a
3"
LONG
"U"
PULLEY
BRACKET
(39)
and
fasten
the
Bracket
to
the
front
side
of
the
ARM
PRESS
UPRIGHT
(2)
just
above
the
Backrest.
“IMPORTANT”:
This
Bracket
must
NOT
be
tightened
against
the
Upright.
Fit
a
“5/16"
FLAT
WASHER
(50)
and
а
"5/16"
NYLON
LOCK
NUT
(51)
onto
the
Bolt
and
tighten
only
enough
that
the
Bolt
comes
through
the
Nut
just
a
few
threads.
This
will
let
the
-
Bracket
Stand
away
from
the
Frame
about
14
inch.
The
Bracket
must
be
BENE
to
pier
up
and
nown:
e
g
1/2"
PULLEY
(а
өз)
trap
the
LAT
CABLE
E
(82)
into
the
ау
PULLEY
BRACKET
e».
at
the
fr
О
то
assemble
the
LAT
CABLE
(32)
into
the
pre-assembled
PULLEY
(б),
it
will
be
necessary
to
remove
the
Pulley
by
untightening
the
3/8"
X
1
3/4"
HEX
HEX
BOLT
(65)
and
3/8"
NYLON
LOCK
NUT
(63)
and
removing
the
Pulley.
Assemble
the
Cable
onto
the
Pulley
and
re-assemble
the
Pulley
into
the
"U"
PULLEY
BRACKET
(39).
C]
Assemble
the
88"
WEIGHT
STACK CABLE
(40)
to
the
SELECTOR
TUBE
(11).
First,
be
sure
that
the
Metal
Adjuster
Ferrule
and
Rubber
Stopper
Ball
are
positioned
to
the
end
of
the
Cable
so
the
Adjuster
Ferrule
is
between
the
Ball
and
the
loop
end
of
the
Cable.
Insert
the
other
loop
end.
of
the
Cable
into
the
end
of
the
Selector
Tube.
Position
the
molded
PLASTIC
GUIDE
BRACKET
(41)
so
it
fits
behind
the
Selector
-Tube
and
in
front
of
the
GUIDE
RODS
(9).
(0
Bot
through
the
SELECTOR
TUBE
(11),
CABLE
(40)
end,
and
GUIDE
BRACKET
(41)
with
а
5/16"
X
1
1/2"
HEX
HEAD
BOLT
(55)
and
a
5/16"
NYLON
LOCK
NUT
(51).
