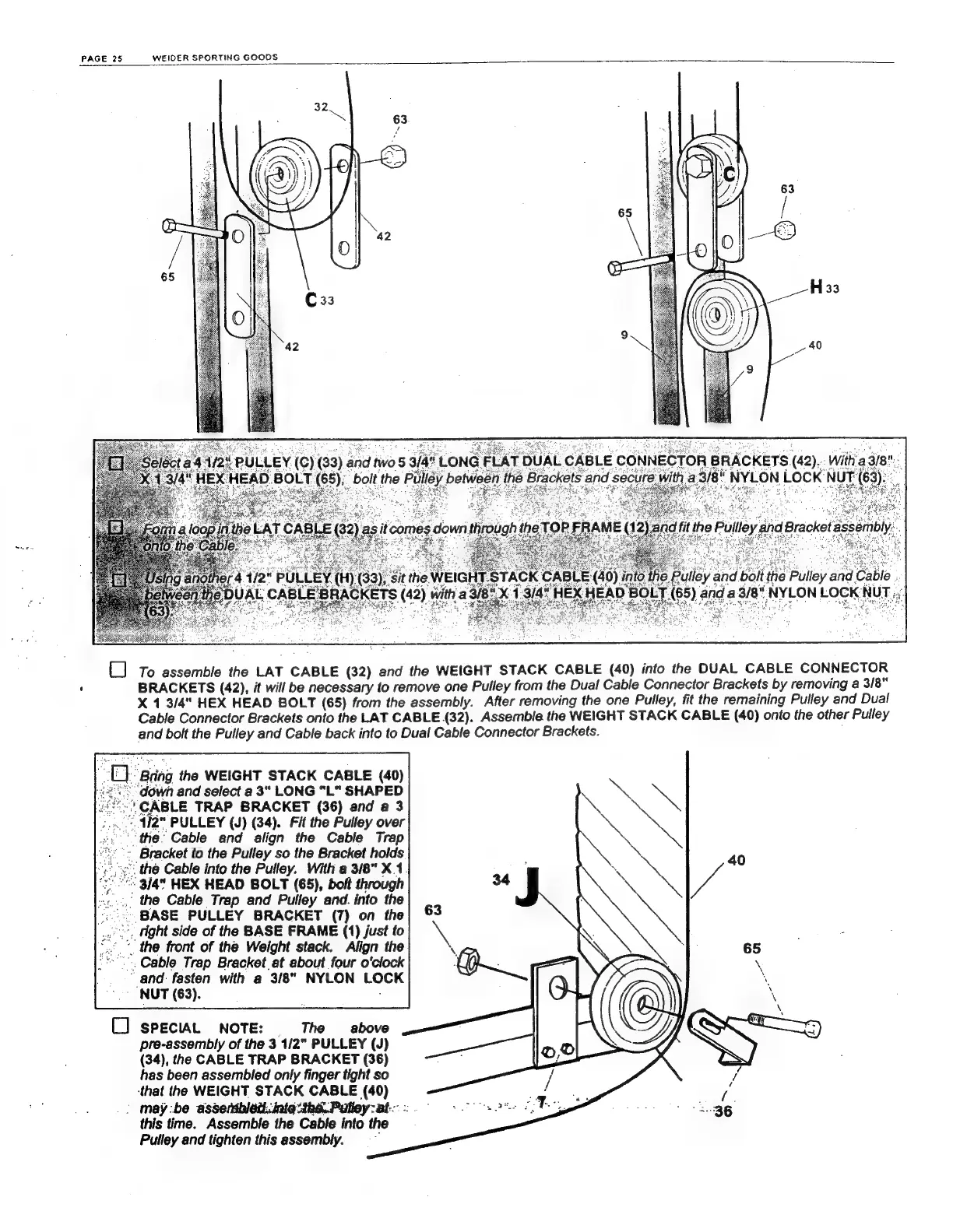

РАСЕ 25 WEIDER SPORTING 60005
C]
To
assemble
the
LAT
CABLE
(32)
and
the
WEIGHT
STACK
CABLE
(40)
info
the
DUAL
CABLE
CONNECTOR
‘
BRACKETS
(42),
it
will
be
necessary
to
remove
one
Pulley
from
the
Dual
Cable
Connector
Brackets
by
removing
a
3/8"
X
1
3/4"
HEX
HEAD
BOLT
(65)
from
the
assembly.
After
removing
the
one
Pulley,
fit
the
remaining
Pulley
and
Dual
Cable
Connector
Brackets
onto
the
LAT
CABLE
(32).
Assemble
the
WEIGHT
STACK
CABLE
(40)
onto
the
other
Pulley
and
bolt
the
Pulley
and Cable
back
into
to
Dual
Cable
Connector
Brackets.
ing the WEIGHT STACK CABLE (40)
down and select а 3" LONG "1." SHAPED
"CABLE TRAP BRACKET (36) and a 3
12" PULLEY (J) (34). Fit the Pulley over
"ће: Cable and align the Cable Trap
. Bracket to the Pulley so the Bracket holds
: thé Cable into the Pulley. With a 3/8" X 1.
> 3/4" HEX HEAD BOLT (65), Бой through
` the Cable Trap and Pulley апа into the
.BASE PULLEY BRACKET (7) on the
‚ fight side of the BASE FRAME (1) just to
. the front of the Weight stack. Align the
. Cable Trap Bracket at about four o'clock
“апа fasten with а 3/8" NYLON LOCK
: NUT (63).
C] sPECIlAL NOTE: | The above
pre-assembly of the 3 1/2" PULLEY (J)
(34), the CABLE TRAP BRACKET (36)
has been assembled only finger tight so
that the WEIGHT STACK CABLE (40)
: may:be asserriblad. into bs. Pulley:nt—: - |
this time. Assemble the Cable into the
Pulley and tighten this assembly. И
