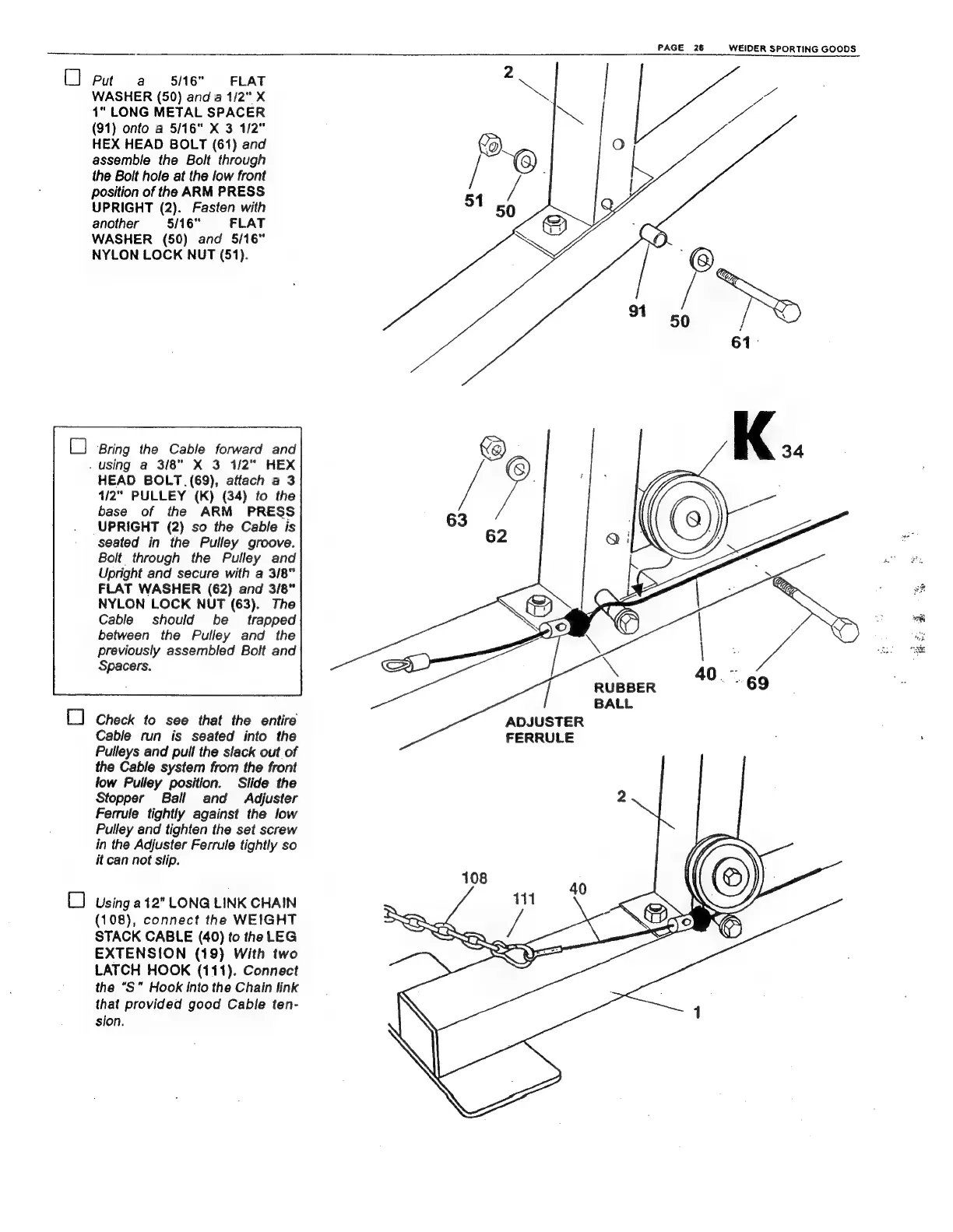

C] Put a sne" FLAT
WASHER (50) and a 1/2" X
1" LONG METAL SPACER
(91) onto a 5/16" X 3 1/2"
HEX HEAD BOLT (61) and
assemble the Bolt through
the Bolt hole at the low front
position of the ARM PRESS
UPRIGHT (2). Fasten with
another 5/16" FLAT
WASHER (50) and 5/16"
NYLON LOCK NUT (51).
‘Bring the Cable forward and
. using а 3/8" X 3 1/2" HEX
HEAD BOLT.(69), attach a 3
1/2" PULLEY (K) (34) to the
base of the ARM PRESS
UPRIGHT (2) so the Cable is
seated in the Pulley groove.
Bolt through the Pulley and
Upright and secure with a 3/8"
FLAT WASHER (62) and 3/8"
NYLON LOCK NUT (63). The
Cable should be trapped
between the Pulley and the
previously assembled Bolt and
Spacers.
Check to see that the entire
Cable run is seated into the
Pulleys and pull the slack out of
the Cable system from the front
low Pulley position. Slide the
Stopper Ball and Adjuster
Ferrule tightly against the low
Pulley and tighten the set screw
in the Adjuster Ferrule tightly so
it can not slip.
Using a 12” LONG LINK CHAIN
(108), connect the WEIGHT
STACK CABLE (40) to the LEG
EXTENSION (19) With two
LATCH HOOK (111). Connect
the "5" Hook into the Chain link
that provided good Cable ten-
sion.
ADJUSTER
FERRULE
