PAGE 27 WEIDER SPORTING GOODS

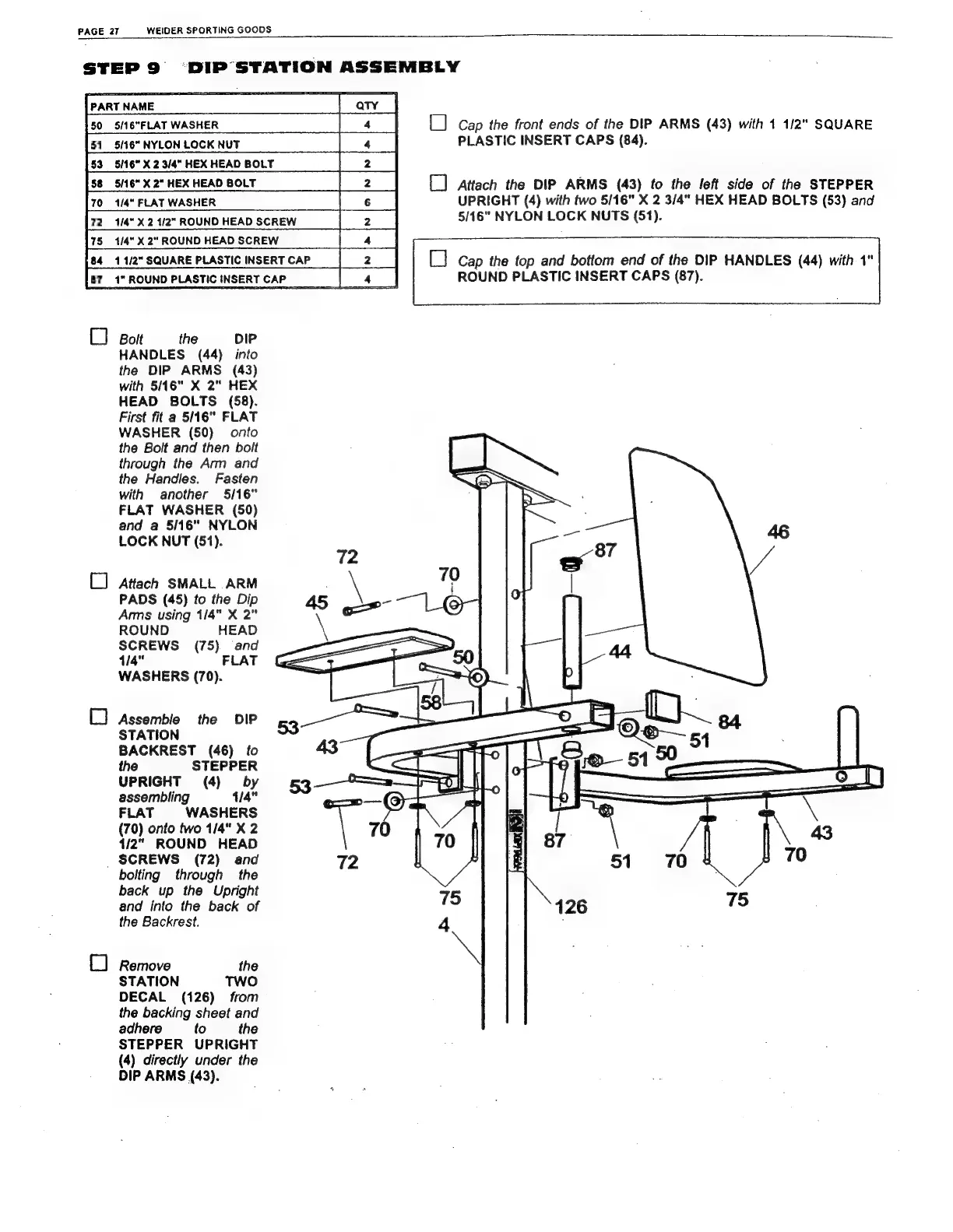

STEP 9 DIP STATION ASSEMBLY
ГРАКТМАМЕ __ __ [| av |
50 5/16"FLAT WASHER ЊЕ
51 5/16" NYLON LOCK NUT |
53 5/16" X 2 3/4" HEX HEAD BOLT
58 5/16" X 2" HEX HEAD BOLT
| 2 |
BE
[o wertATWASHER de)
72 1/4" X 2 1/2" ROUND HEAD SCREW | 2 |
ЕШ
EM
СТЕК
LJ Cap the front ends of the DIP ARMS (43) with 1 1/2" SQUARE
PLASTIC INSERT CAPS (84).
СО Attach the DIP ARMS (43) fo the left side of the STEPPER
UPRIGHT (4) with two 5/16" X 2 3/4" HEX HEAD BOLTS (53) and
5/16" NYLON LOCK NUTS (51).
75 1/4" X 2" ROUND HEAD SCREW
84 11/2" SQUARE PLASTIC INSERT САР
87 1" ROUND PLASTIC INSERT САР
П Сар the top and bottom епа of the DIP HANDLES (44) with 1"
ROUND PLASTIC INSERT CAPS (87).
Cl Bot те ор
HANDLES (44) into
the DIP ARMS (43)
with 5/16" X 2" HEX
HEAD BOLTS (58).
First fit a 5/16" FLAT
WASHER (50) onto
the Bolt and then bolt
through the Arm and
the Handles. Fasten
with another 5/16"
FLAT WASHER (50)
and a 5/16" NYLON
LOCK NUT (51).
[C] Attach SMALL ARM
PADS (45) to the Dip
Ams using 1/4" X 2"
ROUND HEAD
SCREWS (75) and
414" FLAT
WASHERS (70).
C] Assemble the DIP
STATION
BACKREST (46) fo
the STEPPER
UPRIGHT (4) by
assembling 1/4"
FLAT WASHERS
(70) onto Мо 1/4" Х 2
1/2" ROUND HEAD
. SCREWS (72) and
bolting through the
back up the Upright
and into the back of
the Backrest.
[0 Remove the
STATION TWO
DECAL (126) from
the backing sheet and
adhere (о ће
STEPPER UPRIGHT
(4) directly under the
DIP ARMS (43).
