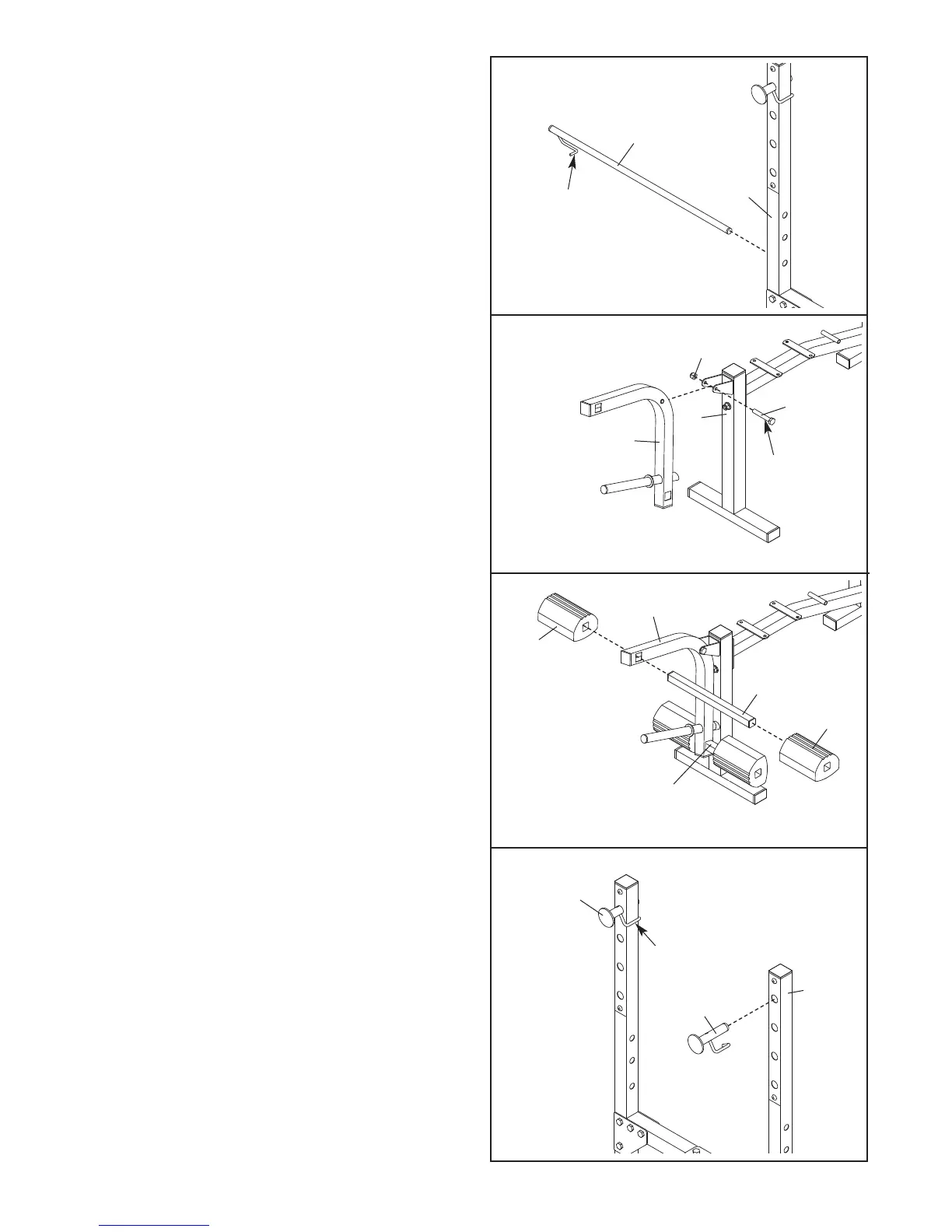

5. Insert the Support Rod (14) into a set of holes in
the Uprights (1). Turn the Support Rod so the
locking pin is wrapped around the Upright.
T
ighten the M10 Nylon Locknuts (31) and M10
x 19mm Screw (5) used in steps 1–5.
1
14
5
7
6. Lubricate the M10 x 60mm Bolt (25) with grease.
Attach the Leg Lever (6) to the Front Leg (4) with
the Bolt and an M10 Nylon Locknut (31).
Do not
overtighten the Locknut; the Leg Lever must
be able to pivot easily.
7. Slide a Pad Tube (12) into the Leg Lever (6).
Slide two Foam Pads (13) onto the ends of the
Pad Tube.
Make sure the Foam Pads are ori-
ented as shown.
Repeat this step with the other Pad Tube (12).
6
13
13
12
12
Locking
Pin
25
31
Lubricate
6
4
6
7
8.
Insert a Weight Rest (15) into an Upright (1). Turn
the W
eight Rest so the locking pin is wrapped
around the Upright.
Repeat this step with the other W
eight Rest
(15).
15
15
Locking
Pin
1
8
