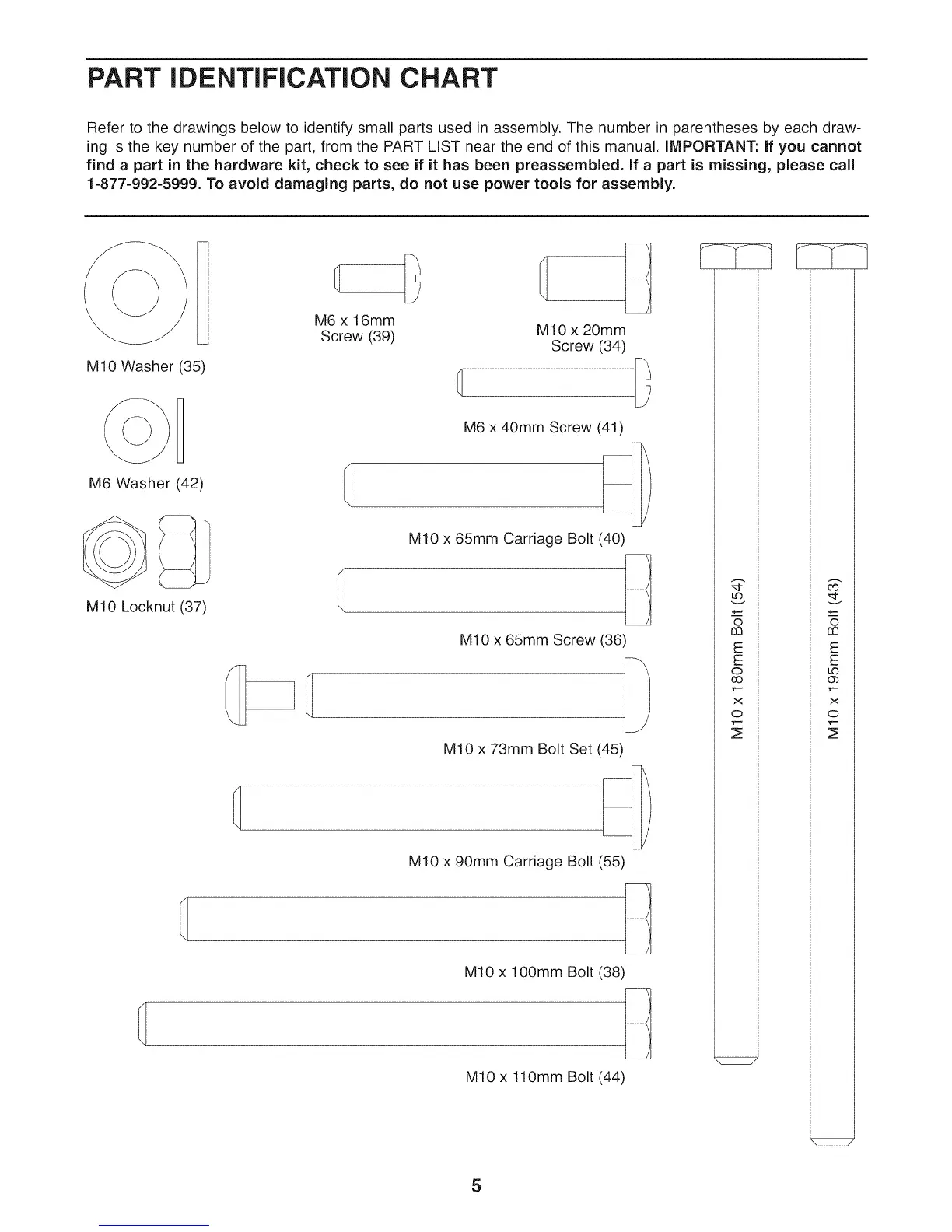

PART iDENTiFiCATiON CHART
Refer to the drawings below to identify small parts used in assembly. The number in parentheses by each draw-
ing is the key number of the part, from the PART LIST near the end of this manual, iMPORTANT: if you cannot
find a part in the hardware kit, check to see if it has been preassembled, if a part is missing, please call
1-877-992-5999. To avoid damaging parts, do not use power tools for assembly.
M10 Washer (35)
M6 Washer (42)
M10 Locknut (37)
M6 x 16mm
Screw (39) M10 x 20mm
Screw (34)
M6 x 40mm Screw (41)
M10 x 65mm Carriage Bolt (40)
M10 x 65mm Screw (36)
M10 x 73mm Bolt Set (45)
M10 x 90mm Carriage Bolt (55)
M10 x 100mm Bolt (38)
M10 x 110mm Bolt (44)
r
5
