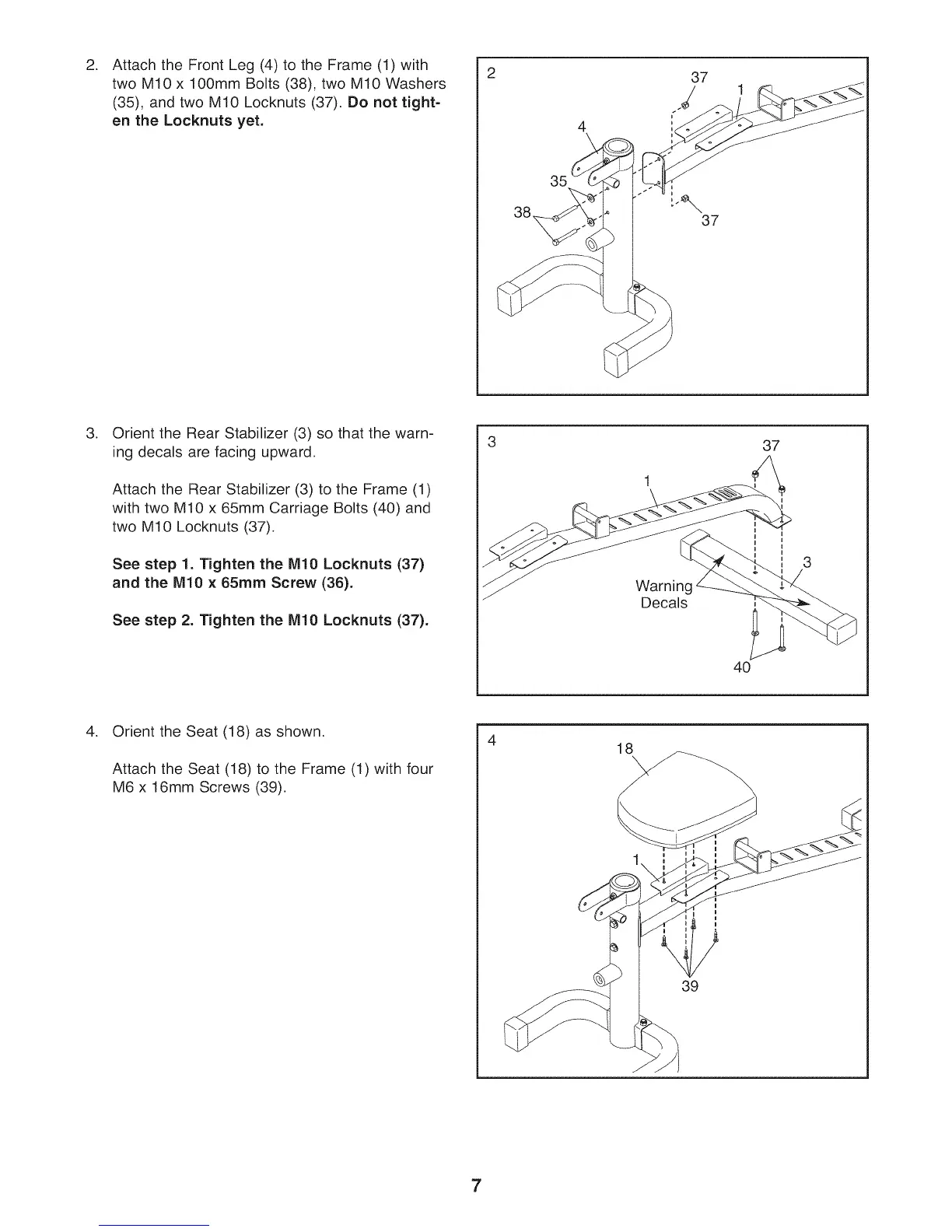

Attach the Front Leg (4) to the Frame (1) with
two M10 x 100mm Bolts (38), two M10 Washers
(35), and two M10 Locknuts (37). Do not tight-
en the Locknuts yet.
35
37
.
Orient the Rear Stabilizer (3) so that the warn-
ing decals are facing upward.
Attach the Rear Stabilizer (3) to the Frame (1)
with two M10 x 65mm Carriage Bolts (40) and
two M10 Locknuts (37).
See step 1. Tighten the MIO Locknuts (37)
and the MIO × 65mm Screw (36).
See step 2. Tighten the MIO Locknuts (37).
Warninc
Decals
40
3
.
Orient the Seat (18) as shown.
Attach the Seat (18) to the Frame (1) with four
M6 x 16mm Screws (39).
18
39
7
