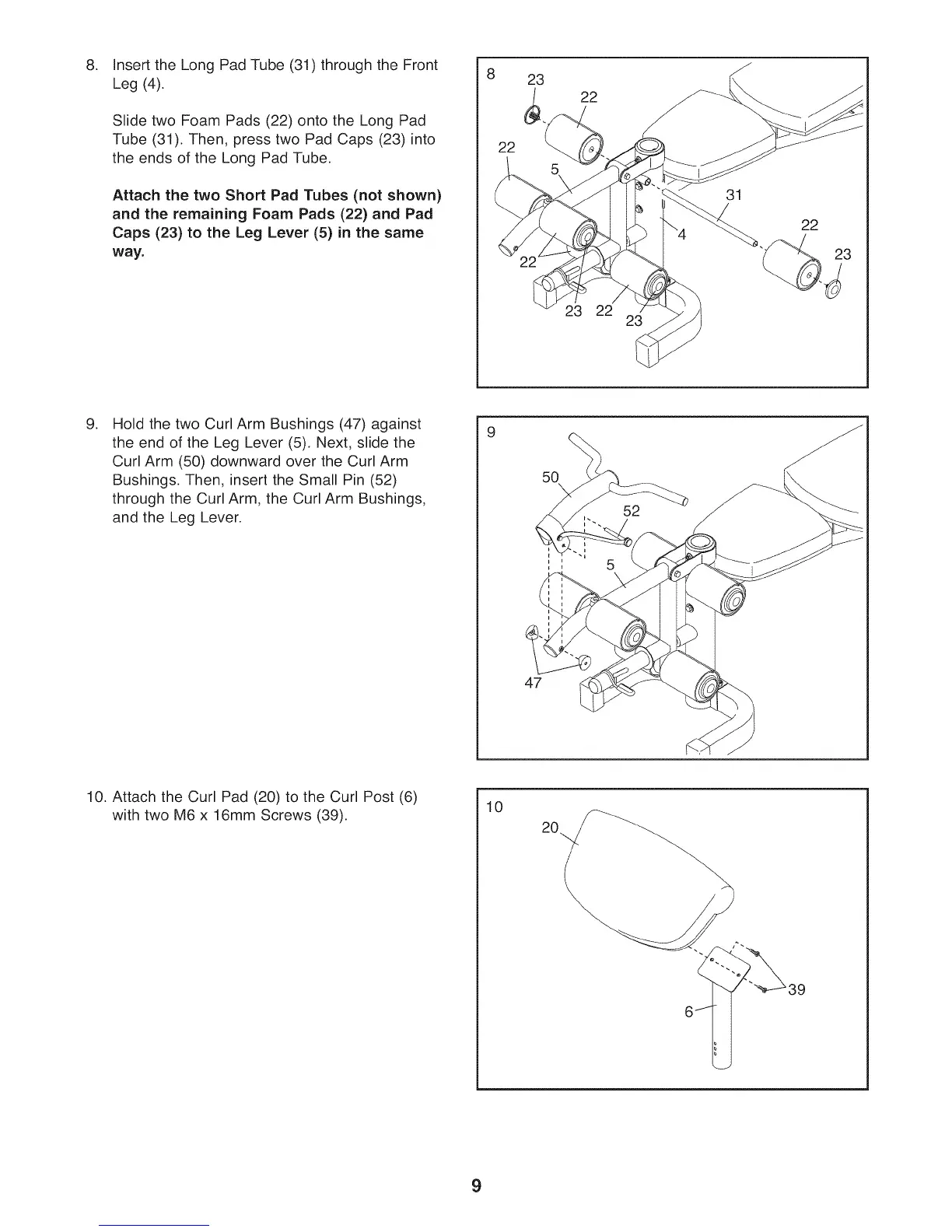

8. 8 23
Insert the Long Pad Tube (31) through the Front
Leg (4).
Slide two Foam Pads (22) onto the Long Pad
Tube (31). Then, press two Pad Caps (23) into
the ends of the Long Pad Tube.
Attach the two Short Pad Tubes (not shown)
and the remaining Foam Pads (22) and Pad
Caps (23) to the Leg Lever (5) in the same
way.
22
22
23 22
23
22
.
Hold the two Curl Arm Bushings (47) against
the end of the Leg Lever (5). Next, slide the
Curl Arm (50) downward over the Curl Arm
Bushings. Then, insert the Small Pin (52)
through the Curl Arm, the Curl Arm Bushings,
and the Leg Lever.
5O
47
10. Attach the Curl Pad (20) to the Curl Post (6)
with two M6 x 16mm Screws (39).
10
9
