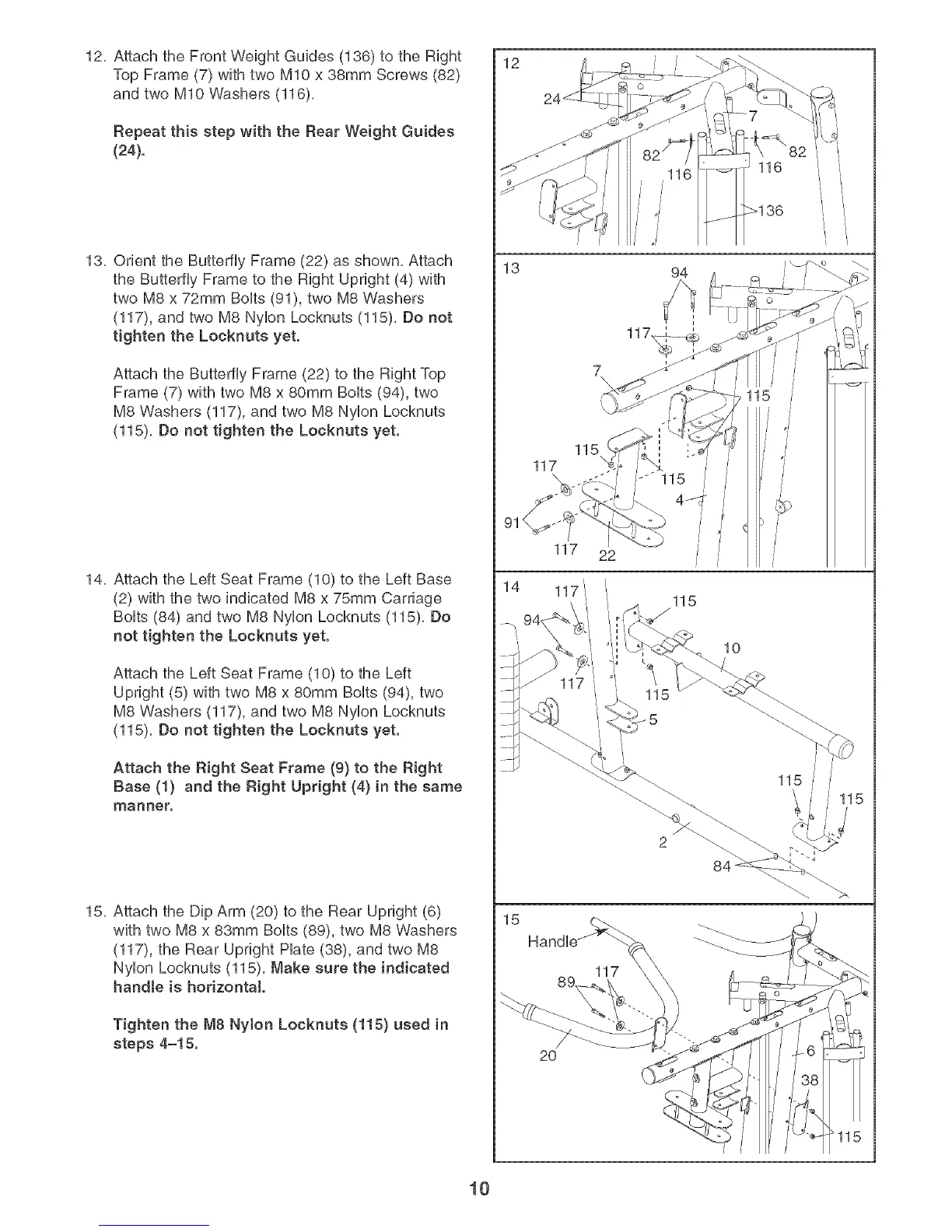

12, Attach the Front Weight Guides (136) to the Right
Top Frame (7) with two MIO x 38mm Screws (82)
and two MIO Washers (116),
Repeat this step with the Rear Weight Guides
(24).
13, Orient the Buttediy Frame (22) as shown, Attach
the Butterfly Frame to the Right Upright (4) with
two M8 x 72mm Bolts (91), two M8 Washers
(117), and two M8 Nylon Locknuts (115), Do not
tighten the Locknuts yet.
Attach the Butterfly Frame (22) to the Right Top
Frame (7) with two M8 x 80mm Bolts (94), two
M8 Washers (117), and two M8 Nylon Locknuts
(115), Do not tighten the Locknuts yet.
14, Attach the Left Seat Frame (10) to the Left Base
(2) with the two indicated M8 x 75mm Carriage
BoUts(84) and two M8 NyUonLocknuts (115), Do
not tighten the Locknuts yet.
Attach the Left Seat Frame (10) to the Left
Upright (5) with two M8 x 80mm BoUts(94), two
M8 Washers (117), and two M8 NyUonLocknuts
(115), Do not tighten the Locknuts yet.
Attach the Right Seat Frame (9) to the Right
Base (!) and the Right Upright (4) in the same
manner.
15, Attach the Dip Arm (20) to the Rear Upright (6)
with two M8 x 83mm BoUts(89), two M8 Washers
(117), the Rear Upright Hate (38), and two M8
NyUonLocknuts (115), Make sure the indicated
handle is horizontal
Tighten the M8 Nylon Locknuts (!15) used in
steps 4=15.
12
13
14
15
116
94
117,
7
\
115
117
117
117 i
22
115
10
115
2
84 _
20
10
