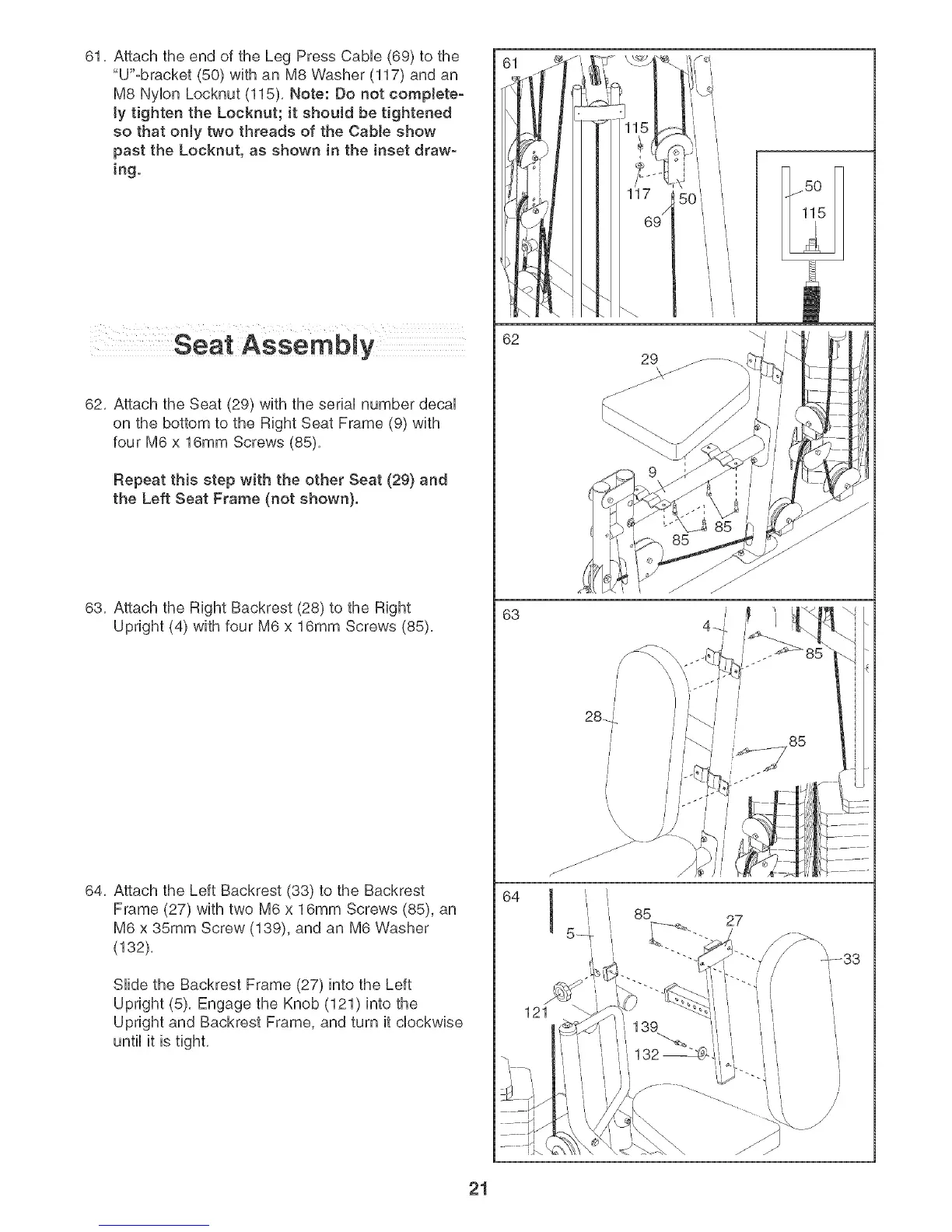

61, Attach the end of the Leg Press CaMe (69) to the
"U"°bracket (50) with an M8 Washer (117) and an
M8 NyUonLocknut (115), Note: Do not complete-
ly tighten the Locknut; it shouJd be tightened
so that only two threads of the Cabte show
past the Locknut, as shown in the inset draw-
ing.
62, Attach the Seat (29) with the seriaU number decaU
on the bottom to the Right Seat Frame (9) with
four M6 x 16mm Screws (85),
Repeat this step with the other Seat (29} and
the Left Seat Frame (not shown).
63, Attach the Right Backrest (28) to the Right
Upright (4) with four M6 x 16mm Screws (85),
64, Attach the Left Backrest (33) to the Backrest
Frame (27) with two M6 x 16mm Screws (85), an
M6 x 35mm Screw (139), and an M6 Washer
(132),
SHde the Backrest Frame (27) into the Left
Upright (5), Engage the Knob (121) into the
Upright and Backrest Frame, and turn it clockwise
until it is tight,
62
63
64
121
j50
115
85
85 27
21
