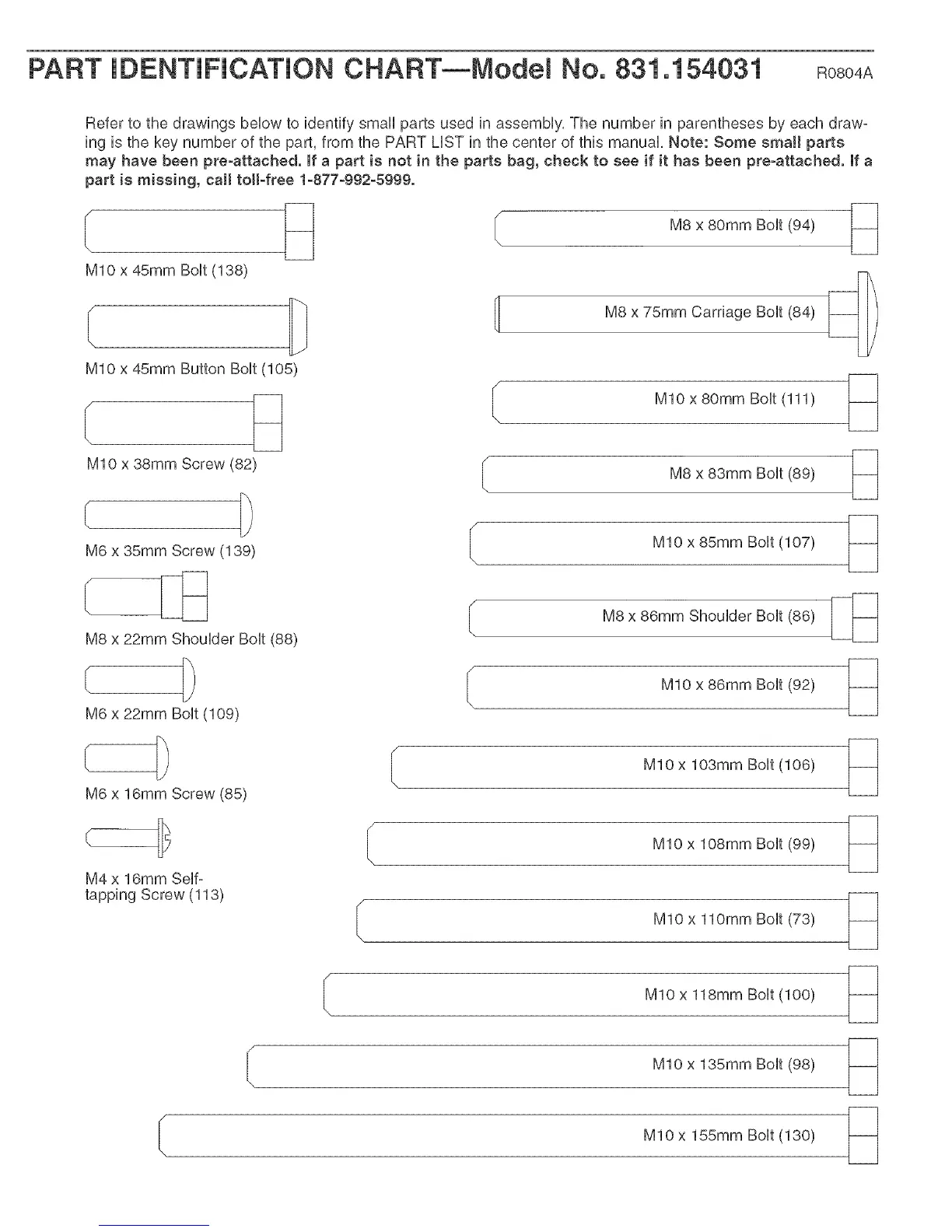

PART IDENTIFICATION CHART--Model No. 831.154031 Roso4A
Refer to the drawings beUowto identify small parts used in assemMy, The number in parentheses by each draw-
ing is the key number of the part, from the PART LUSTin the center of this manual Note: Some sina!! parts
may have been pre-attached. If a part is not in the parts bag, check to see if it has been pre-attached. If a
part is missing, call totFfree 1-877-992-5999.
M10 x 45mm BoUt(138)
M10 x 45mm Button BoUt(105)
MIO x 38mm Screw (82)
M6 x 35mm Screw (139)
M8 x 22mm ShouUder BoUt(88)
M6 x 22ram BoUt(109)
_- M8 x 80mm Bolt (94)
I M8 x 75mm Carriage Bolt (84)
I M10 x 80mm Bolt (111)
M8 x 83mm Bolt (89)
M10 x 85mm Bolt (107)
M8 x 86mm Shoulder Bolt (86)
I M10 x 86mm Bolt (92)
I M10 x 103mm Bolt (106)
M10 x 108mm Bolt (99)
M10 x 110mm Bolt (73)
M6 x 16mm Screw (85)
M4 x 16mm Selfo
tapping Screw (113)
M10 x 118mm Bolt (100)
M10 x 135mm Bolt (98)
(
M10 x 155mm Bolt (130)
