2,
3,
4,

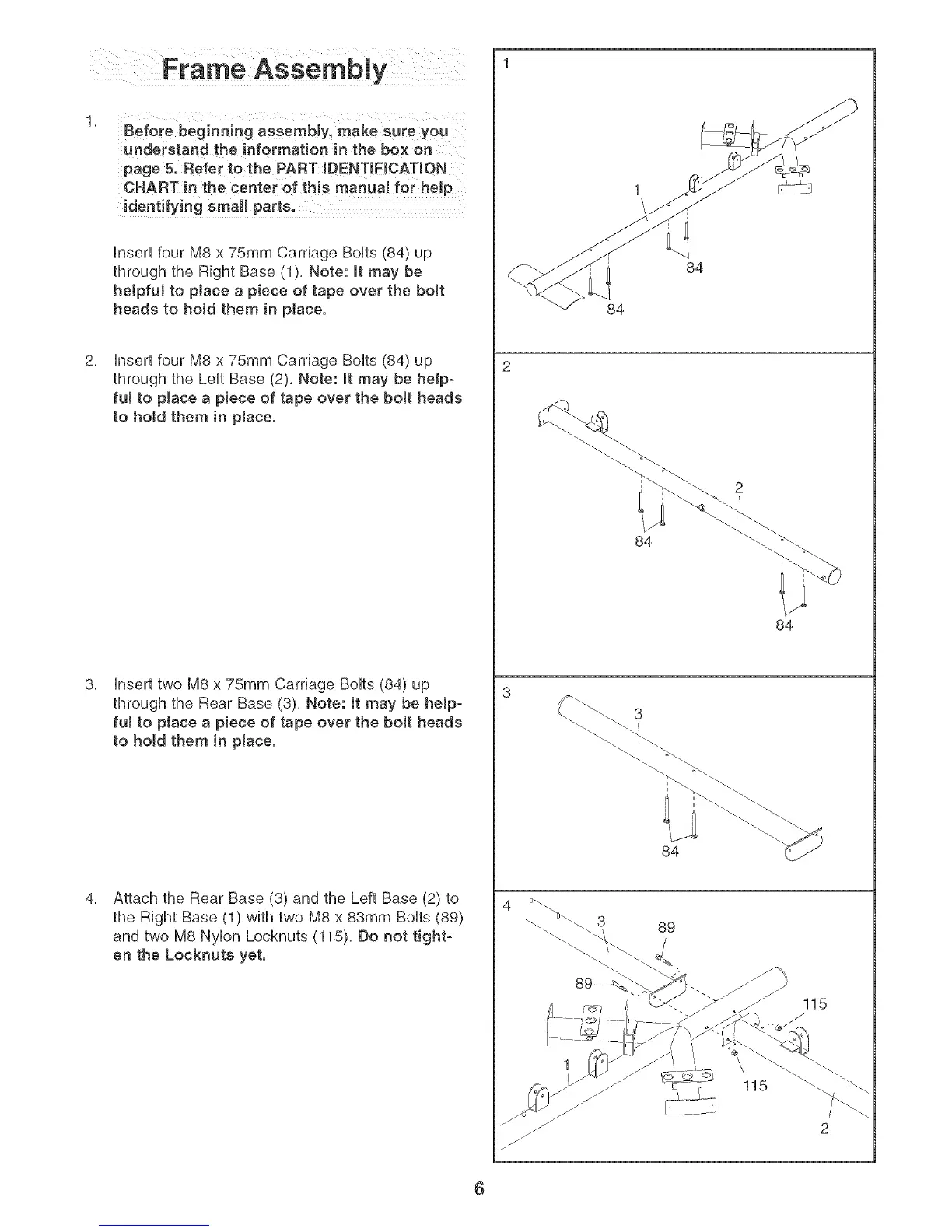

Before beginning assembly, make sul'e you
understand the informationinthe box on
page 5. Refer to the PART _DENT_F!CAT_ON
CHART in the center of this manual f0r help
Insert four M8 x 75mm Carriage Bolts (84) up
through the Right Base (1), Note: it may be
he_pfu_ to piece a piece of tape over the bott
heads to hoJd them in place.
Insert four M8 x 75mm Carriage Bolts (84) up
through the Left Base (2), Note: _tmay be help-
ful to place a piece of tape over the boRt heads
to hotd them in place.
Insert two M8 x 75mm Carriage Bolts (84) up
through the Rear Base (3), Note: It may be help-
ful to place a piece of tape over the bolt heads
to hotd them in piece,
Attach the Rear Base (3) and the Left Base (2) to
the Right Base (1) with two M8 x 83mm Bolts (89)
and two M8 Nylon Locknuts (115), Do not tight-
en the Locknuts yet.
1
84
84
84
84
84
3 89
115
115
6
